NDT Digital Vibration Testing Calibrator HG5026
NDT Digital Vibration Testing Calibrator HG5026
Specifications
Brand Name :
HUATEC
Model Number :
HG5026
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T, Paypal
Packaging Details :
In carton
Frequency :
from 1 to 1280 Hz
Velocity :
40Hz to 320Hz +0.5dB +1digit
40Hz to 320Hz +0.5dB +1digit :
5mm and 8mm probes Range: 0~2.0mm
Warranty :
12 months
Description

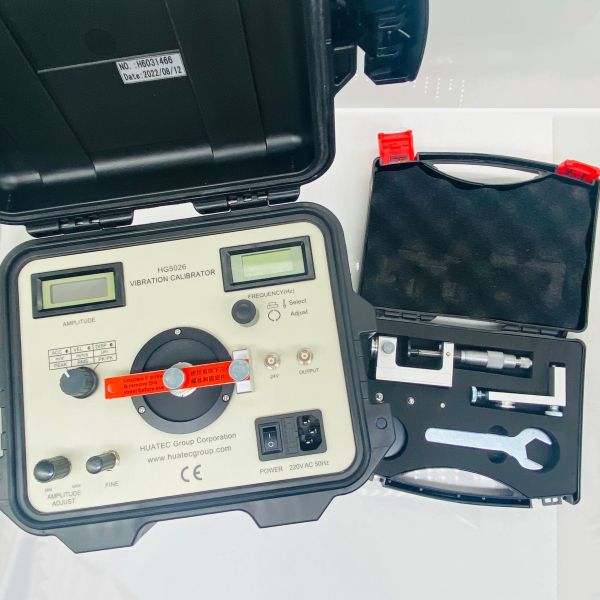

NDT Digital Vibration Testing calibrator HG5026

HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Wt

Freq

 <100g <250g <500g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *

Frequency range & accuracy: 1 to 1280 Hz +0.01%

NDT Digital Vibration Testing Calibrator HG5026
