HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
HCDX-Y2 AC Electromagnetic Yoke Portable Magnaflux
Specifications
Brand Name :
Huatec
Model Number :
HCDX-Y2
Certification :
ISO CE GOST
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
500 sets one month
Delivery Time :
3~7 working days
Packaging Details :
Packed in high quality cartons
Product name :
Magnaflux Electromagnetic Yoke
Model :
HCDX-Y2
power supply :
110V/220V/240V Single-phase AC power supply
Leg / Pole Span :
0~220mm
Description

HCDX-Y2 AC Portable Magnaflux Electromagnetic Yoke

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing. Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

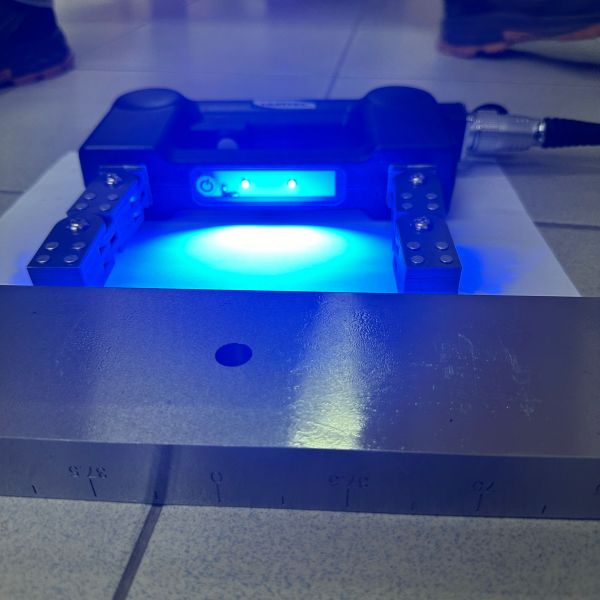

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

Model

Items

 HCDX-Y2 HCDX-Y7A
Electrical Requirements AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz
Waveform AC
Tangential Field Strength > 2kA/m at midpoint between legs / poles
Working temperature -10～+40℃
Duty Cycle 50%, max on time is 90 seconds
Ingress Protection (IEC 60259) IP54
Relative humidity <80%
Sensitivity ASTM E1444-05,ASME 2007 page number V
DC power pack X ●
AC working current AC2.2A
DC working current X DC 1.5A
Battery charging time X 3 hours
Battery working time X 6h
Leg / Pole Span 0~220mm
Leg size 22*22mm
Power cord length 3M
Lifting Force A C ≥7.1kg (69N)
D C ≥22.2kg (216N)
Weight Yoke 2.3kg
DC Battery X 0.6kg
Note: “X” not included, “●” included
FEATURES
• Ergonomic, light-weight design • IP54 sealed housing resists dust and water • Field-swappable power cord • Isolated, replaceable trigger switch • Steel shields for leg protection • Exceeds ASTM lifting specifications • Convenient carrying case supplied with all yoke shipments • Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs • Two power supply modes are optional:  110V/220V/240V Single-phase AC power supply (straight plug mode);  DC magnetization power supply (DC battery pack with digital display screen) • Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.
APPLICATIONS
Defect location: Surface Ideal for: • Field Testing • Difficult to reach areas • Spot, weld and in-service inspections Defect examples: • Seams • Tears • Shrink cracks • Quenching cracks • Fatigue cracks
SPECIFICATION COMPLIANCE
JB/T7411-2012 ASTM E1444-05 ASTM E709 EN10228-1:1999 ISO 9934 ASTM E 3024
