Specifications
Brand Name :
HUATEC
Model Number :
HPA-500
Certification :
ISO，CE，Gost
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
3-7 days
Packaging Details :
in High quality carton
Product name :
Portable Phased Array Ultrasonic Flaw Detector
Model :
HPA-500
Modular Configuration :
L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional)
Display :
11-inch 800X600 TFT color display
Description

Whole-Process Data Logging Phased Array Probes Portable Phased Array Ultrasonic Flaw Detector Water-Proof Touch Screen

Introduction

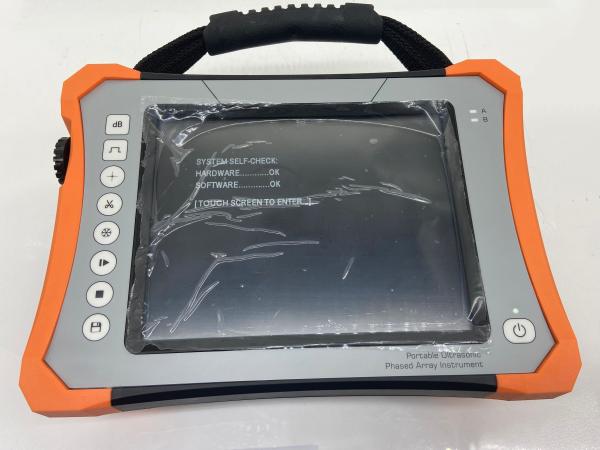

HPA-500 is a portable 64-CH phased array ultrasonic flaw detector originally developed by HUATEC. It is water-proof and oil-proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.

Main Function

★ File & Entry Management System for Flexible Bridging between setting (Focal Law & Model), Calibration and Inspection

★ Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),
★ 3D Simulation Model
★ Image analysis
★ Natural Structure of Heat Dissipation
★ Dynamic Depth Focusing (DDF)
★ Smooth Filtering
★ Touch Screen
★ ACG Calibration
★ TCG Calibration

Feature

I. Dynamic Focusing
II. 3D Simulation Model
III. APP Menu
Menu of the software is shown in the manner of APP.
It can be cut down or enlarged accordingly if asked by the users.

IV. Metallic Housing
To strengthen the instrument, both shielding and heat-dissipating

V. Protective Pedestal
To prevent any damage to either the instrument or the object

Specification

Channel Configuration

Mode PA UT TOFD(Optional)
Channel 16:64 2 2

Physical Specification

Display 11-inch 800X600 TFT color display

Transducer

Ports

 160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R
I/O Ports USB2.0 Port: 2(qty)
HDMI; encoder
LAN(Gigabit-NIC);
WIFI
I/O (commissioning)
2D Encoder
Memory

In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G);

External: USB drive
Weight 3.5Kg (with 1 battery)
Dimension 284mm×202mm×95mm
Power Supply AC:100～240V,50～60Hz；DC:12V
Charging (battery) within or individually
Battery Life 6 Hours
Working Power 24W
Language English

Temperature

Conditions

Ambiance:-20℃～50℃

Storage:-20℃～60℃
IP IP54

Performance Specification

Mode PA UT TOFD(optional)
PRF 50Hz～10kHz 50Hz～5kHz 50Hz～5kHz
Voltage

Bipolar,

±45～±100V,

with 5V per step

 Negative Square Wave, -75V～-250V, with 25V per step Negative Square Wave, -75V～-250V, with 25V per step
Pulse Width

20ns～800ns,

with 5ns per step

 20～800ns, with 5ns per step 20～800ns, with 5ns per step
Damping 50Ω 80Ω / 400Ω 80Ω / 400Ω
Sampling Rate 125MHz 200MHz 200MHz
Delay Precision 2.5ns N/A N/A
Rx Delay 0～40us N/A N/A
Bandwidth 0.5MHz～19MHz 0.5MHz～15MHz 0.5MHz～15MHz
Gain 0.0～80dB 0.0～110.0dB 0.0～110.0dB
Filter

0.5-9.6MHz,2.5-12.9MHz,

3.8-19MHz Optional

 broadband, narrowband broadband, narrowband
Rectification FW FW RF
Reject 0~80% 0~80% 0~80%
Scan Mode A/L/S/C A A/D
Triggering Encoder N/A Encoder
Scan Line Max 128 N/A N/A
Skew

L-scan:-89°～+89°

S-scan:-89°～+89°

 N/A N/A
Smart-Cal Velocity/Delay/ACG/TCG/Encoder DAC/DGS

Delay/X-Value/PCS/

Wave/Encoder
Range

0.0～1000mm,

min 1mm

 0.0～2000mm 0.0～2000mm

Displaying Delay

(max)

 1000mm 2000mm 2000mm

Pulse Shift

(max)

 N/A 2000mm 2000mm
Unit mm mm mm
Gate A/B A/B A/B
Gate Start Available within the range Available within the range Available within the range
Gate Width Available within the range Available within the range Available within the range
Gate Threshold 0-100% 5-95% 0-100%
Alarm Signal Buzzer / LED Buzzer / LED Buzzer / LED
Spotting Crest / Flank Crest / Flank Crest / Flank
Readout

Amp/Path/

Horizontal/Depth

Amp/Path

/Horizontal/Depth

Amp/Path

/Horizontal/Depth
Resolution 0.5mm 0.1mm 0.1m
