Specifications
Brand Name :
HUATEC
Model Number :
HUH-5M
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
TT, L/C, Western Union
Supply Ability :
500 pcs per month
Delivery Time :
in stock
Packaging Details :
Carton
Hardness scale :
HV、HB、HRC, HLD
Memory :
save 1000-groups of measuring data and 20-groups of calibration data
Loading Force :
10N/20N/50N/98N
Optional Impact Devices :
10N/20N/50N/98N probe
Overall dimensions :
160x80x31mm
Weight :
500g without probe
Display :
LCD
Material :
Metal
Description

UCI Metal Hardness Testing Machine Universal Hardness Testing Machine HUH-5M

Features:

● Disadvantages are obvious for the hardness measurement commonly used like Brinell, Rockwell, Vickers, Leeb, etc.

● Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
● Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
● Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.
● Ultrasonic hardness tester HUH-5M applies ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
● Ultrasonic hardness tester HUH-5M is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitride stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.

High Accuracy Metal Hardness Testing Equipment With LCD Display Easy Operation

Manual Probe UCI-1K/UCI-2K/UCI-5K/UCI-10K

Manual Probes Features:

● Introduced latest ultrasonic sensor technology

● Obtain accurate hardness value without auxiliary devices

● Support 360° quick measuring

● Excellent human engineering design easy to hold

● Suitable dimension and weight of probe is convenient to control

● Quick and accurate measuring for edge and fixed position of specimen

● Micro indentation, Non- Destructive for specimen

Specifications:

Product Name UCI Ultrasonic Hardness Tester
Model HUH-5M
Loading Force 10N/20N/50N/98N

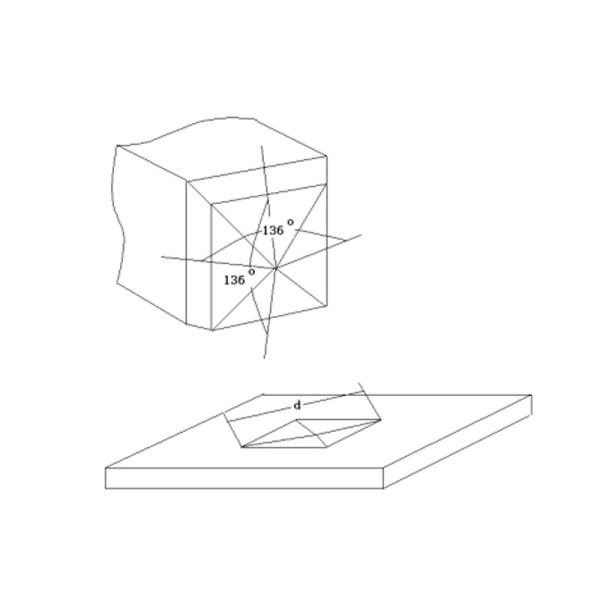

Indenter 136°Vickers Diamond Indenter
Measuring Range

HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6

HS: 34.2-97.3;Mpa: 255-2180N/mm
Measuring Accuracy HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±5HLD;
Measuring Direction Support 360°
Data Storage To save 1000-groups of measuring data and 20-groups of calibration data
Hardness Scale HV,HB,HRC, HLD
Data Display Loading force, Testing-times, Testing result, Average,
Maximum,Minimum,Deviation and Conversion scale.
Hardness Indication LCD display
Operating Environment Temperature:-10℃~50℃; Humidity: 30%~80%R.H
Operating Voltage DC 6V
Instrument Dimensions 160x80x31mm
Net Weight Approximate 500g(Without probe)

Standard Delivery:

Standard Delivery quantity Standard Delivery quantity Standard Delivery quantity Standard Delivery quantity
HUH-5M main unit 1 Probe Cable 1 Anti Vibration Case 1 English Operation Manual 1
50N/98N Manual probe 1 Com Cable 1 Screw 1 Warranty Card 1
Standard Rockwell Block 1 USB Cable 1 Qualification Certificate 1 Packing List 1

Manual Probe Specifications:

Probe Type UCI-1K UCI-2K UCI-5K UCI-10K
Testing force 10N 20N 50N 98N
Diamter 22mm 22mm 22mm 22mm
Length 154mm 154mm 154mm 154mm
Oscillating Rod Diameter 2.4mm 2.4mm 3mm 3mm
Roughness of measuring surface Ra<3.2um Ra<5um Ra<10um Ra<15um
Min weight of test material 0.3kg 0.3kg 0.3kg 0.3kg
Minimum thickness 2mm 2mm 2mm 2mm

Motorized Probe Specifications:

Probe Type UCI-300 UCI-500 UCI-800 UCI-1000
Testing force 3N 5N 8N 10N
Diamter 46mm 46mm 46mm 46mm
Length 197.5mm 197.5mm 197.5mm 197.5mm
Oscillating Rod Diameter 3.7mm 3.7mm 3.7mm 3.7mm
Min weight of test material 0.3kg 0.3kg 0.3kg 0.3kg
Minimum thickness 2mm 2mm 2mm 2mm

High Accuracy Metal Hardness Testing Equipment With LCD Display Easy Operation

Block Specification:

Hardness Range Uniformity Roughness Dimension
(28~35)HRC ±1.5HRC Ra=0.02um Ø90x16mm
(38~43)HRC ±1.5HRC Ra=0.02um Ø90x16mm
(48~53)HRC ±1.5HRC Ra=0.02um Ø90x16mm
(58~63)HRC ±1.5HRC Ra=0.02um Ø90x16mm
(300~500)HV1 ±3%HV Ra=0.02um Ø90x16mm
(300~500)HV5 ±3%HV Ra=0.02um Ø90x16mm

Support Ring Specifications:

Support Ring Name Plan Support Ring Small Cylinder Support Ring Big Cylinder Support Ring
Application Plan Test Piece Diameter 8-22mm Test Piece Diameter 16-80mm Test Piece

Plan Support Ring Small Cylinder Support Ring Big Cylinder Support Ring Standard Probe Protector Standard Probe Protector

High Accuracy Metal Hardness Testing Equipment With LCD Display Easy Operation

High Accuracy Metal Hardness Testing Equipment With LCD Display Easy Operation

High Accuracy Metal Hardness Testing Equipment With LCD Display Easy OperationHigh Accuracy Metal Hardness Testing Equipment With LCD Display Easy Operation

Guidelines for selection and use of UCI instruments:

Load Model Features Typical Applications
98N Standard length (manual)

Relatively large indentation; requires minimal surface

preparation

 Small forgings, cast material, weld inspection, HAZ
50N

Standard length (manual)

Extended length (manual)

Short probe (manual)

For general use

30 mm extended length

Reduced length (90 mm); electronics in separate housing

Induction hardened or carburized machine parts, for

example, camshafts, turbine weld inspection, HAZ

Measurement in grooves, on gear tooth flanks and roots

Turbine blades, inside wall of pipes with Ø >90 mm
10N

Standard length (manual)

Extended length (manual)

Short probe (manual)

Load is easy to apply and provides control to test on sharp radii

30 mm extended length

Reduced length (90 mm); electronics in separate housing

Ion-nitride stamping dies and molds, forms, presses,

thin walled parts

Bearings, tooth flanks

Turbine blades, inside wall of pipes with Ø >90 mm
8 N Motor probe style Load is applied by servomotor Finished precision parts, gears, bearing raceways
3 N Motor probe style Load is applied by servomotor; rather small indentations

Thin layers, for example, copper or chromium on steel

cylinders;

Copper rotogravure cylinders;

Coatings, case hardened parts
1 N Motor probe style Load is applied by servomotor; rather small indentations Thin layers and coatings

Testing Stand HU-100:

Testing Stand HU-100
Material Stainless Steel
Weight 8.8Kg
Dimension(LxWxH) 200 x 200 x 332mm

High Accuracy Metal Hardness Testing Equipment With LCD Display Easy Operation

Testing Stand HU-100
