Specifications
Brand Name :
HUATEC
Model Number :
HV-50MDX
Certification :
CE ISO
Place of Origin :
Beijing
MOQ :
1
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500 per months
Delivery Time :
4 working days
Packaging Details :
Plywood Airplane standard package
Material :
Steel
Test force :
1.0 (9.8N)、2.0Kgf(19.6N)、3.0Kgf(29.4N)、5.0Kgf(49.0N)、10.0Kgf(98.0N)、20.0Kgf(196N)、30.0Kgf(294N)、50.0Kgf(490N)
Standard :
GB/T4340，ASTM E92
Test resolution :
0.1µm
Range :
8~2900HV
Testing process :
Automatic (loading, Dwelling , unloading)
Test microscope magnification :
100X、200X（Both of them can be used for testing）
Force dwell time :
0~60s
Maximum height of specimen :
180mm
Distance from the center to the outer wall of the indenter :
160mm
Dimension :
580*240*660mm
Power :
AC220V+5%，50-60Hz
Data output :
LCD display，saved in EXCEL format on a usb stick
Description

Touch Screen Auto Turret Vickers Hardness Testing Machine Manufacturers HV-50MDX

50 KGf Touch Screen Auto Turret Digital Vickers Hardness Tester closed-loop control​

Product characteristics:

  1. Eight level load from 1.0Kgf(9.8N)to 50.0Kgf(490N) , customized
  2. Electric load ,closed-loop control,automatic loading
  3. Load automatic corrected,Accuracy raise a number of levels
  4. Hardness value automatic corrected according to different hardness block
  5. No need to install the weight, no need to regulate
  6. Touch screen interface,any language version
  7. Modular design, simple maintenance
  8. Large sample space
  9. Save more samples and test information
  10. Set the password protection
  11. Data saved as EXCEL format through USB flash disk, edit and process easy
  12. Available to upgrade to full automatic Vickers hardness tester

Operation interface:

Main interface 10 kinds Vickers scales available

Touch Screen Auto Turret Vickers Hardness Testing Machine Manufacturers HV-50MDX

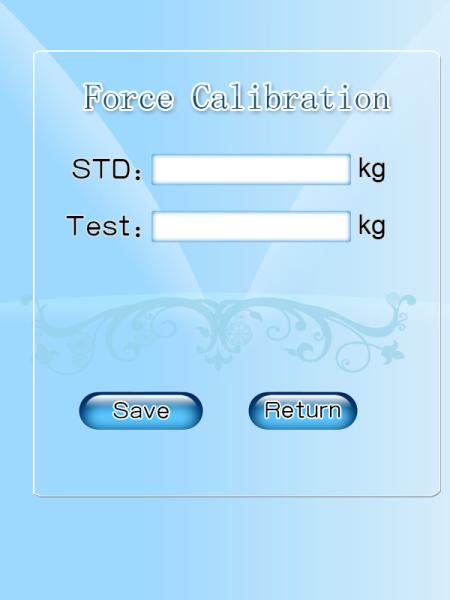

  • Magnification and Hardness automatic correct Load automatic correct
  • Touch Screen Auto Turret Vickers Hardness Testing Machine Manufacturers HV-50MDX

Data storage

Touch Screen Auto Turret Vickers Hardness Testing Machine Manufacturers HV-50MDX

Touch Screen Auto Turret Vickers Hardness Testing Machine Manufacturers HV-50MDXTouch Screen Auto Turret Vickers Hardness Testing Machine Manufacturers HV-50MDX

Technical Specifications:

Model HV -50MDX
Min measuring unit 0.01µm
Load 1.0 (9.8N),2.0Kgf(19.6N),3.0Kgf(29.4N),5.0Kgf(49.0N),10.0Kgf(98.0N),20.0Kgf(196N),30.0Kgf(294N),50.0Kgf(490N)
Hardness measuring range 8~2900HV
method of Load applied Automatic loading, unloading
Objective, indenter exchange Manual/Automatic
Objective

Number: two

Standard:10X,20X
Test microscope magnification

Standard:100X,200X
Dwell time 0~99S
Data output Read by LCD,saved in USB flash disk as EXCEL document
Max Height of Specimen 180MM
Distance of Indenter to outer wall 160mm
Power supply AC220V+5%,50-60Hz
Overall Dimension 580*240*660mm
Net weight About 50Kg

The Packing List

No Description of Goods Quantity
1 Large ,medium-sized, V sharped test table Each 1PC
2 Regulating Screw 4 PCS
3 10× Micro Eyepiece 1 PC
4 Vickers standard block 2 PCS
5 Spare Fuses (2A) 2 PCS
6 Touch pen,U disk Each 1PC
7 Level 1 PC
8 Dust bag 1 PC
9 Power Cord 1 PC
10 The Product Quality Certificate 1 PC
11 The Manual 1 PC
