Hg5026 Portable Vibration Calibrator Frequency From 1 To 1280 Hz
Hg5026 Portable Vibration Calibrator Frequency From 1 To 1280 Hz
Hg5026 Portable Vibration Calibrator Frequency From 1 To 1280 Hz
Hg5026 Portable Vibration Calibrator Frequency From 1 To 1280 Hz
Hg5026 Portable Vibration Calibrator Frequency From 1 To 1280 Hz
Hg5026 Portable Vibration Calibrator Frequency From 1 To 1280 Hz
Specifications
Brand Name :
HUATEC
Model Number :
HG5026
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 4420~5746 per set
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
5-15 days
Packaging Details :
in High quality carton
Product name :
Portable Vibration Calibrator
Model :
HG5026
Frequency range &accuracy :
1 to 1280 Hz+0.01%
Display :
3 1/2 digit display for acceleration
Probe :
5mm and 8mm probes
Range :
0~2.0mm
Description

HG5026 Portable Vibration Calibrator at any frequency from 1 to 1280 Hz can be defined in the calibrator

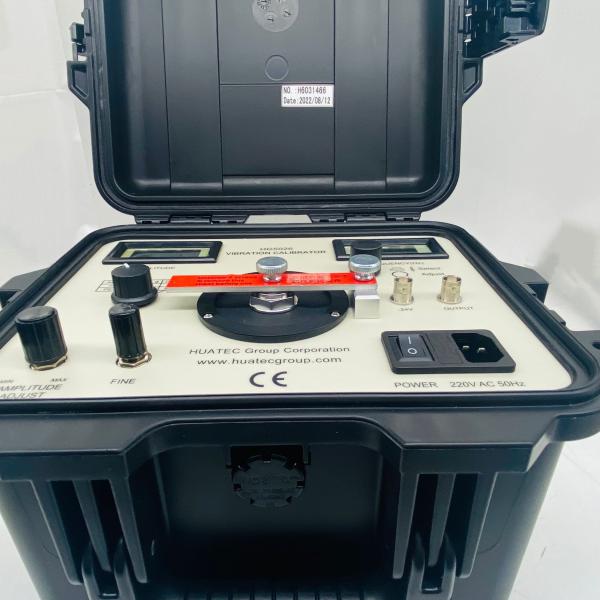

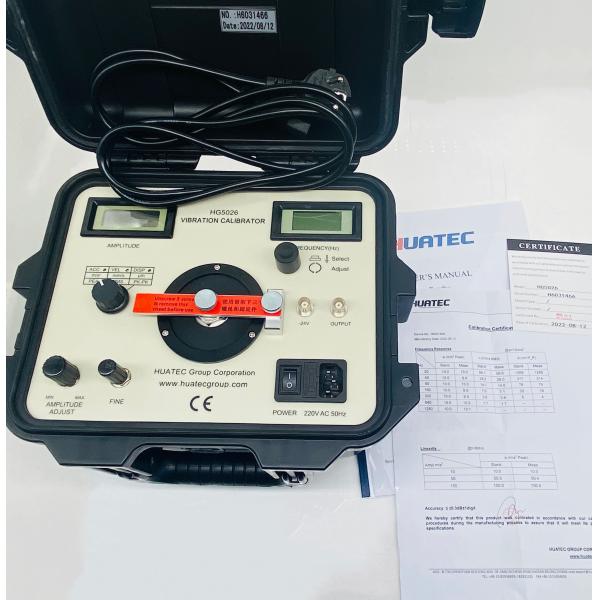

HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Specifications
Frequency: from 1 to 1280 Hz
Amplitude accuracy:
Acceleration (@10m/s2 pk) 40Hz to 320Hz + 0.3dB + 1digit
20Hz to 640Hz + 0.5dB +1digit
Velocity (@20mm/sec rms) 40Hz to 320Hz +0.5dB +1digit
Displacement (@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

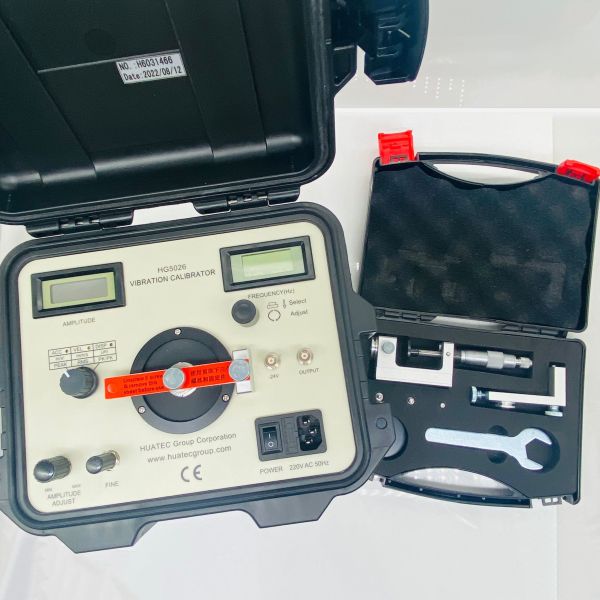

Proximity probe linearity calibration kits
Probe: 5mm and 8mm probes Range: 0~2.0mm
Display: 3 1/2 digit display for vibration and frequency


Maximum vibration amplitude & transducer weight

Wt

Freq

 <100g <250g <500g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *

Size: 300 x250 x210(mm) Net Weight: 6 kg

Temperature: Operation: 0oC to 50 oC Storage: -20 oC to 70 oC

Power: 220Vac (optional 110Vac)
