X Ray Film Processor NDT Products HUATEC HDL-P14A NDT/HDL-P17A fully automatically
X Ray Film Processor NDT Products HUATEC HDL-P14A NDT/HDL-P17A fully automatically
Specifications
Brand Name :
HUATEC
Model Number :
HDL-P14A /HDL-P17A
Certification :
ISO CE GOST
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000 sets per month
Delivery Time :
5~10 working days
Packaging Details :
Packed in high quality cartons
Product name :
X-Ray Film Processor
widest :
350mm width (P17A the widest 450mm)
running time :
4.5 to 14 minutes
chip speed :
100~33 mm / min
Description

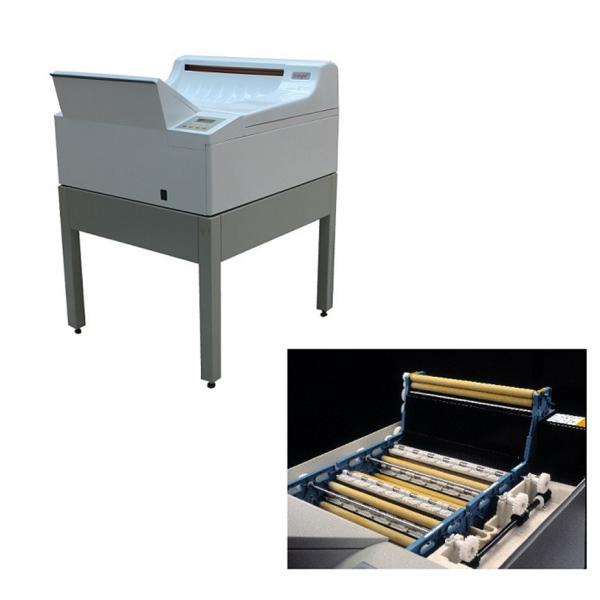

NDT X-Ray Film Processor - NDT Products HUATEC HDL-P14A NDT/HDL-P17A

Outstanding features:

Digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.

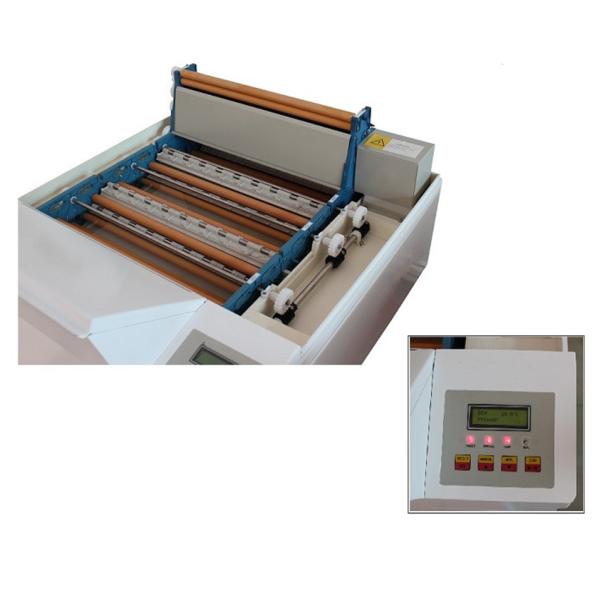

The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.

Drying system adopts special roller combination and electronic control to ensure hot air drying film.

Anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.

Technical parameters:

The size of u film is minimum 60 * 100mm, the widest 350mm width (P17A the widest 450mm) and the longest film is 15 meters.

film type film & sheet film

The running time of u is 4.5 to 14 minutes

chip speed 100~33 mm / min

development time is 60-180 seconds (recommended for 90 seconds)

washing volume 350*430mm 20 sheets / hour; 80*300mm 80 sheets / hour (P14A)

350*430mm 25 sheets / hour; 80*300mm 100 sheets / hour (P17A)

volume development, fixing and washing 5.2 litres (P17A each 6.8 liters).

supplementary volume automatic test supplement 50-200 ml / m2

development temperature can be adjusted from 20-40 degrees

setting temperature automatically adjusts according to developing temperature

drying temperature 40-70 degrees

water temperature 5~30 degree

water consumption film is less than 2 liters / minutes during operation

power 220~240V8.8A 50 or 60Hz

weight 50 kg 60 kg (P17A)

volume (long * width * height) 78 x 59 x 45 cm (P17A:78 * 59 * 45 cm)
