Specifications
Brand Name :
Huatec
Model Number :
SRT-6671
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets
Delivery Time :
5~10 days after payment
Packaging Details :
in high quality carton
Product name :
Surface Roughness Tester
Large range, multi parameters :
Ra,Rz,Rq,Rt,Rp,Rv,R3z and other 13 parameters
display :
128*64 high brightness OLED display
Measuring range :
Ra:0.025-12.5μm
z-axis measuring range :
±20μm、±40μm、±80μm
Maximum display resolution :
0.001μm
Description

Surface Roughness Tester Software Transplant Real-Time Ra,Rz,Rq,Rt,Rp,Rv,R3z And Other 13 Parameters

Instrument Features

● ARM processor for control and data processing, fast speed, low power consumption;

● Software transplant real-time operating system, support multi-task parallel processing;

● Large range, multi parameters: Ra,Rz,Rq,Rt,Rp,Rv,R3z and other 13 parameters;

●128*64 high brightness OLED display, self-lighting, wide temperature, full Angle of view；

● Display rich information, intuitive, can display all parameters and graphics;

● Compatible with ISO, DIN, ANSI, JIS national standards;

● Built-in rechargeable lithium battery, can display charging process instructions, the operator can know the charging degree at any time;

● With the remaining battery indicator icon, prompt users to charge in time;

● Large capacity data storage, the machine FLASH can store 200 groups of original data and waveform;

● Scalable Micro SD card storage, up to 16G;

● Compatible with a variety of sensors: standard sensor, small hole sensor, groove sensor, deep groove sensor;

● Optimized the sensor structure, the measured value is more stable;

● Using USB interface, can connect computer and printer, can realize embedded software online upgrade.

Technical Parameters

Host machine

Parameters Ra,Rz,Rq,Rt,Rc,Rp,Rv,R3z,R3y,Rz(JIS),Ry,Rs,RSk,Rku,Rmax,Rsm,Rmr,Rpc,Rk,Rpk,Rvk,Mr1,Mr2
Measuring range Ra:0.025-12.5μm
Displayed range Ra,Rq:0.005-16μm；Rz,Ry,Rt,Rp,Rv,Rmax,R3z:0.02-160μm；RS,RSm:1mm；Rmr:0-100%(%Rt)；Rsk:0-100%
z-axis measuring range ±20μm,±40μm,±80μm
Maximum display resolution 0.001μm
Filter RC,PC-RC,GAUSS,D-P
Length of sampling l 0.25mm,0.8mm,2.5mm
Length of evaluation L (1-5)l(optional), lis the sampling length
Maximum drive stroke 17.5mm/0.7inch
Minimum drive stroke length 1.3mm/0.052inch
Error of indication ≤±10%
Indicates value variability ≤6%
Mode of display 128×64 OLED Lattice liquid crystal (spontaneous light)
Power source Rechargeable lithium battery
Overall dimensions 140mm×52mm×48mm
Weight 440g

Sensor

Sensor performance index
Principle of detection Inductance type
Range of measurement 160μm
Radius of stylus tip 5μm
Needle tip material Diamond
Measuring force 4mN(0.4gf)
Stylus tip angle 90°
Radius of skid curvature 45mm

Standard Configuration

Product name QTY Product name QTY
Host machine SRT-6671 1 RS100standard sensor 1
Standard Sample plate 1 Power adaptor 1
Sensor jacket 1 packing list 1
Test plate 1 Warranty card 1
Specification 1 Certification 1

Applied range:

SRT-6671 widely used in machining, aerospace, auto parts, communications, electric power, electronics and other industries. It is also suitable for universities, scientific research institutes, technical supervision bureau, special prosecutor's court and so on.

Standard measuring software:

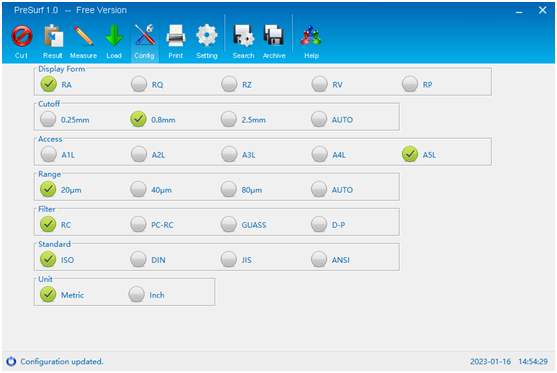

PC software:

Real-Time Measurement Of Ra Rz Rq Rt Rp Rv R3z With Large Range And Multi Parameters Surface Roughness Tester Software

Real-Time Measurement Of Ra Rz Rq Rt Rp Rv R3z With Large Range And Multi Parameters Surface Roughness Tester Software

Real-Time Measurement Of Ra Rz Rq Rt Rp Rv R3z With Large Range And Multi Parameters Surface Roughness Tester Software
