Burmah Castrol Magnetic Field Flux Strips Type I G Type II A Permeable Magnetic Steel Sandwiched Between Two Brass Plates
Burmah Castrol Magnetic Field Flux Strips Type I G Type II A Permeable Magnetic Steel Sandwiched Between Two Brass Plates
Burmah Castrol Magnetic Field Flux Strips Type I G Type II A Permeable Magnetic Steel Sandwiched Between Two Brass Plates
Burmah Castrol Magnetic Field Flux Strips Type I G Type II A Permeable Magnetic Steel Sandwiched Between Two Brass Plates
Specifications
Brand Name :
HUATEC
Model Number :
Type I (G) & Type II (A)
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD606/set - USD685/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
widths :
0.0075", 0.009" and 0.010"
Material :
permeable magnetic steel sandwiched between two brass plates
Usage :
Fluorescent, Wet Visible (Black & White) as well as Dry Particles (with or without contrast)
Description

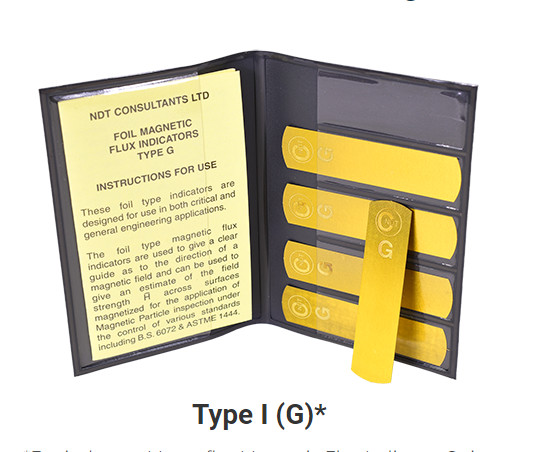

Burmah Castrol Strips Magnetic Field Flux Strips Type I (G) & Type II (A)

Magnetic Flux Strips are a simple-to-use, inexpensive and effective tool, that provides you with assurance that you are performing an effective magnetic particle test. Previously known as "Burmah-Castrol" Strips, they are a form of Q.Q.I. and could replace "pie" gauges.

Magnetic Flux strips should be used to confirm that all required testing parameters including, lighting, field strength and direction, magnetic particle properties and coverage are sufficient to find surface cracks equal or greater in size than those built into the strip.

widths 0.0075", 0.009" and 0.010"
Material permeable magnetic steel sandwiched between two brass plates

Their proper use proves that you have:

  • Adequate field strength and direction
  • Proper illumination
  • Appropriate magnetic particle properties

Applications

Magnetic Flux Strips can be used with: Fluorescent, Wet Visible (Black & White) as well as Dry Particles (with or without contrast). They can be used with AC, FWDC and HWDC magnetization, with either longitudinal or circular fields.

They can also be used to demonstrate the sensitivity differences between these methods and to develop magnetizing techniques that assure complete coverage.

Specifications

Each indicator contains three milled slots with widths of 0.0075", 0.009" and 0.010" that share a common depth.

The indicators are manufactured from permeable magnetic steel sandwiched between two brass plates and designed for repeated use in setting and monitoring magnetic field strength in wet and dry MPI applications.

Note: In 2021, references to flexible laminated strips were removed from ASTM E-1444
