HRD-DGZY Portable High-strength Aluminum Alloy Elevator Rope Tension Meter
HRD-DGZY Portable High-strength Aluminum Alloy Elevator Rope Tension Meter
HRD-DGZY Portable High-strength Aluminum Alloy Elevator Rope Tension Meter
HRD-DGZY Portable High-strength Aluminum Alloy Elevator Rope Tension Meter
Specifications
Brand Name :
HUATEC
Model Number :
HRD-DGZY
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD1121-USD1267/SET
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
3-5 working days after receipt of your payment
Packaging Details :
aluminum alloy box+Outer carton packaging
Min. Load Division Value :
1N
Scientific measuring range :
10%~90%
Accuracy :
≤±5%
Power :
7.2V 1.2V×6 NI-H Battery
Charger :
Input ：AC 100~240V Output：DC 12V 500mA
Description

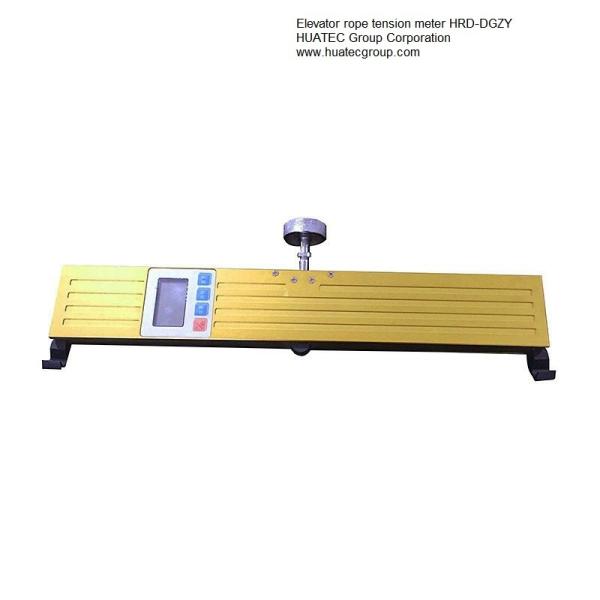

HRD-DGZY Portable High-strength Aluminum Alloy Elevator Rope Tension Meter

Summary

Usage and Application

Elevator rope tension tester is mainly used in elevator wire rope tension test . To check and adjust each wire rope of elevator in the process of installation, check before acceptance and annual inspection to ensure its tension as consistent as possible, thereby prolonging the service life of the traction wheel . The tension tester can also be applied to the bridge with sling, tower wiring,overhead wire ,index wire rope and other tension test.

Product features

1.2.1 Portable:the tension tester use high-strength aluminum alloy structure with light weight and small size.It is easy to carry ,one person can complete all the operations.

1.2.2 The instrument has stable performance and high accuracy,when the tested wire rope are consistent with wire rope tension tester data ,the measuring precision can be 5%.

1.2.3 Light weight ,simple structure,easy to operate,suitable for any occasion.

1.2.4 The instrument has 3 preset wire rope diameter model,just need to choose the correct wire rope number when measuring .

1.2.5 LCD display shows the value force,it is more convenient to reading.

1.2.6 Threeunits:N,Kg and Lb can switch into each other .

1.2.7 The instrument can store 383 measuring data,the data can be output by computer.

Product Model

Model HRD-DGZY-3000 HRD-DGZY-5000
Number 1 2 3 1 2 3
Diameter φ6 φ8 φ10 φ11 φ13 φ16
Range 3000N 5000N
Min. Load Division Value 1N
Scientific measuring range 10%~90%
Accuracy ≤±5%
Power 7.2V 1.2V×6 NI-H Battery
Charger Input :AC 100~240V Output:DC 12V 500mA
Weight (Kg) 1.4 kg

Packing list

1 Elevator Tension meter 1 MODE
2 Charger 1 piece
3 USB cable 1 piece
4 Certificate and warranty card 1 piece
5 Manual 1 piece
6 Certificate of inspection 1 piece
7 Desiccant 1 piece
