HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke
HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke
HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke
HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke
Specifications
Brand Name :
HUATEC
Model Number :
HCDX-Y9
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD565-USD635/SET
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
aluminum alloy box+Outer carton packaging
Electrode spacing :
0～210mm
Maximum current :
AC2.2A
Work temperature rise :
<18 C
Temporary load rate :
>50%
Tangential Field Strength :
> 2kA/m at midpoint between legs / poles
Working temperature :
-10～+40℃
Relative humidity :
<80%
Ingress Protection (IEC 60259) :
IP54
Description

HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke

FEATURES

• Ergonomic, light-weight design

• IP54 sealed housing resists dust and water

• Field-swappable power cord

• Isolated, replaceable trigger switch

• Steel shields for leg protection

• Exceeds ASTM lifting specifications

• Convenient carrying case supplied with all yoke shipments

• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

• Two power supply modes are optional:

 110V/220V/240V Single-phase AC power supply (straight plug mode);

 DC magnetization power supply (DC battery pack with digital display screen)

• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.

Parameters index

Model

Items

 HCDX-Y2 HCDX-Y9
Electrical Requirements

AC110-115V 50/60Hz

AC220-230V 50/60 Hz

AC240V 50/60Hz
Waveform AC
Tangential Field Strength > 2kA/m at midpoint between legs / poles
Working temperature -10～+40℃
Duty Cycle 50%, max on time is 90 seconds
Ingress Protection (IEC 60259) IP54
Relative humidity <80%
Sensitivity ASTM E1444-05,ASME 2007 page number V
DC power pack X ●
AC working current AC2.2A
DC working current X DC 1.5A
Battery charging time X 3hours
Battery working time X 6h
Leg / Pole Span 0~220mm
Leg size 22*22mm
Power cord length 3M
Lifting Force A C ≥7.1kg (69N)
D C ≥22.2kg (216N)
Weight Yoke 2.3kg
DC Battery X 0.6kg

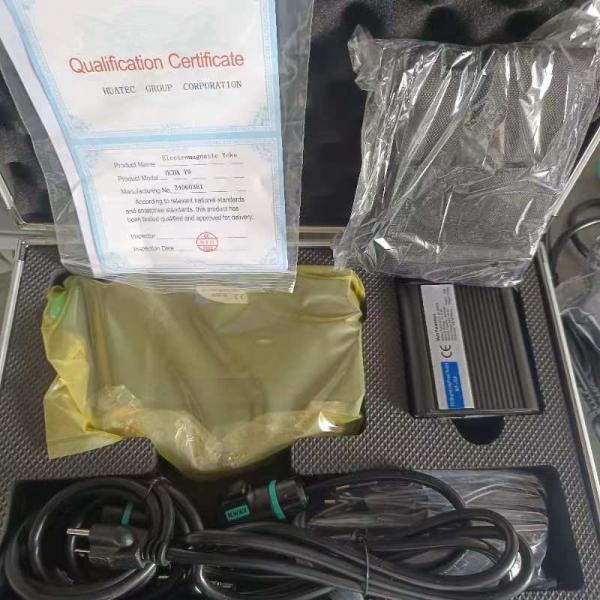

Standard package:

HCDX-Y9

Yoke

Power cord

Calibration certificate

Warranty card

Carrying case

DC battery pack

DC battery charger

DC battery power cord

DC battery bag

Carrying case
