Product name :
Ultrasonic Thickness Gauge
Model :
TG-4900DL
Language :
English
Measuring range :
0.15~3200mm
Resolution :
X.X(0.1mm)、X.XX(0.01mm)X.XXX(0.001mm)
Probe interface :
DUAL LEMO-00C5
Description

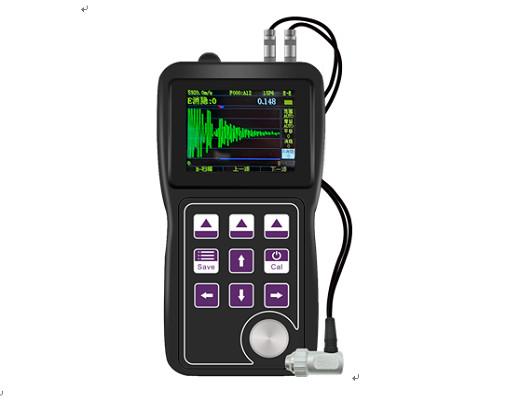

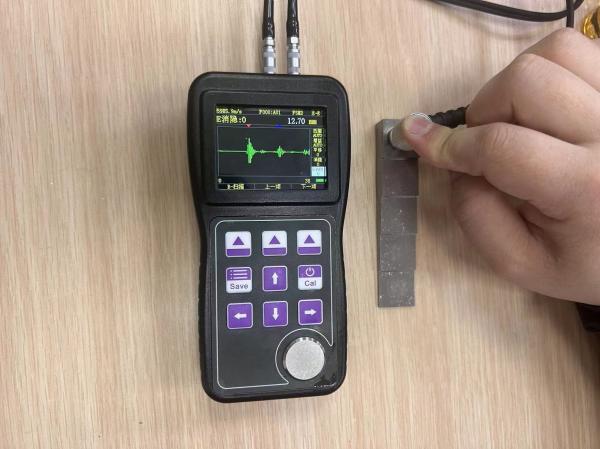

Ultrasonic Thickness Gauge Live A&B Scan Single & Dual Element Probe

TG-4900DL ultrasonic thickness gauge developed and produced by HUATEC Group adopts OLED color screen ,which has the functions of built-in A-scan snapshot and B-scan thickness function,thickness measurement through coating, large capacity data storage and so on. Based on the principle of ultrasonic measurement, it is a portable industrial nondestructive testing instrument with high precision and high resolution.
The instrument can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields. In addition to accurately measuring all kinds of plates and processed parts, it can also monitor all kinds of pipes and pressure vessels in production equipment to monitor their thinning degree after corrosion in the process of use. It is a necessary instrument in the nondestructive testing industry.
All models of this series of instruments are equipped with A-scan snapshot function as standard, which can help users better control the measurement and avoid

wrong measurement caused by the factors of the material itself. This thickness gauge has the function of measuring through the coating: when there is a coating or paint layer on the surface of the measured material, the actual thickness of the workpiece substrate can be obtained without grinding and damaging the surface coating of the workpiece.
Basic Parameters

Bandwidth1MHz~20MHz
Receiving gain96dB,step pace1dB or 6dB
FilterBroadband,5M,10M,15M
Update rate4Hz,8Hz,16Hz,24Hz
ResolutionX.X(0.1mm),X.XX(0.01mm)X.XXX(0.001mm)
Measuring range0.15~3200mm(Longitudinal wave carbon steel)
View modeNormal, difference, maximum value capture
Detection modeFull wave, positive half wave, negative half wave, RF, Invert to RF
Measurement modeP-E(pulse-echo),E-E(echo-echo)
Calibration modeAutomatic zero point calibration, automatic sound velocity calibration
Data storage520 files can be saved, and each file can record 252 sets of thickness values
Auxiliary functionsAuto Gain, Auto Range, Auto Blanking E, Auto Freeze, Auto Shutdown (Hibernation),Buzzer alarm, upper computer communication
Probe interfaceDUAL LEMO-00C5
Probe typesingle crystal,double crystal
Pulse modeSquare waves, two-sided waves
Transmit voltage25~300V,25V step pace
Pulse width25~300ns,5ns step pace
Output interfaceMINI USB,data export to the host computer
Input methodKey combination input,support short press and long press recognition
Display screen2.4-inch 320×240 IPS_LCD
BatteryTwo 1.5V AA batteries
Size153mm×76mm×37mm
Weight228g,no battery
LanguageChinese,English
UnitMetric system, English system
Working temperature range-10℃~55℃
Standard Configurations
NameQuantity
Host TG-4900DL1
probeOptional
Alkaline battery2
Coupling agent1
Instrument sealing box1
User Manual1
Product warranty card1
Product certificate1











Optional Configurations

TG-4900DLProbe selection
Model5PΦ105Z20N15P6
Typedouble crystal5Msingle crystal5Msingle crystal15M
Frequency5MHz5MHz15MHz
Diameter of contact area10mm20mm6.35mm
Measuring range1~400.0mm4~3200.0mm0.15~25.0mm

Allowable contact

temperature

-10~70℃-10~70℃-10~70℃


Product Features

  • English language interface is optional
  • Supports two thickness units: mm and inch
  • Supports scheduled automatic shutdown and standby sleep
  • The brightness of the screen can be adjusted to adapt to different measurement environments
  • When the probe is coupled with workpiece,the thickness value is displayed in white font
  • Extreme value mode: capture the maximum and minimum value during the measurement process
  • Large capacity data storage function: it can store 90000 thickness values(optional)
  • It can penetrate the coating on the surface of the workpiece and directly measure the substrate thickness of the workpiece (optional)
  • Auto-Gain and Auto-Gate: The automatic measurement echo is displayed on the A-scan interface
  • When the measured value changes from green to white, it will be accompanied by a buzzer tone
  • Thickness alarm: the alarm thickness limit can be set, and the thickness reading color can be changed dynamically during alarm
  • B-scan thickness function: The user can directly observe the change of the thickness of the workpiece with time on the screen
  • Difference mode: obtain the difference between the current measured thickness and the nominal thickness and the percentage between the difference and the nominal thickness
  • User-selectable measurement resolution: X.XXX, X.XX and X.X in metric, X.XXXX, X.XXX and X.XX in imperial
  • A-scan snapshot function: The users can directly see ultrasonic signal waveform on the screen to verify whether the thickness reading is correct,analyse the cause of the problem and help users find a solution to the problemUltrasonic Thickness Gauge Live A&B Scan Single & Dual Element Probe
