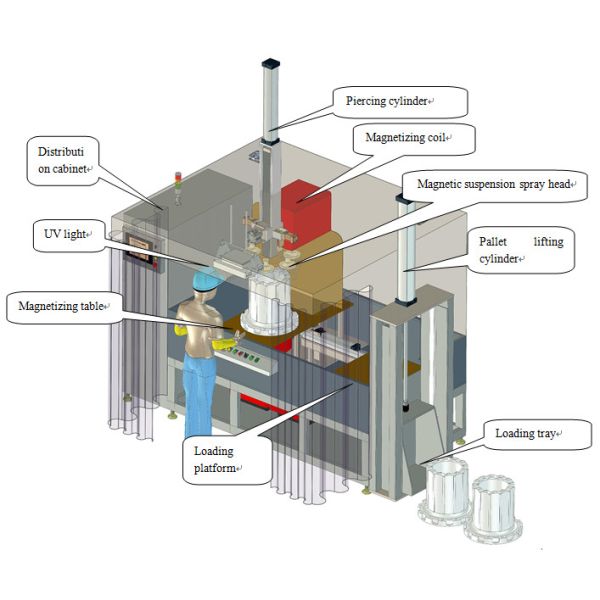

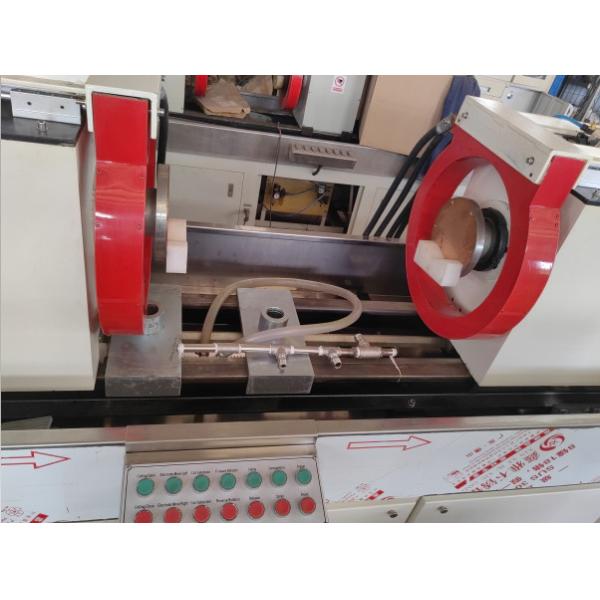

Fluorescent magnetic particle flaw detection machine HMP-6000A

Working principle

Magnetic particle flaw detection uses the interaction between magnetic leakage field and magnetic powder at the defect of the workpiece, which takes advantage of the difference between the surface and near-surface defects of steel products (such as cracks, slag inclusion, hair lines, etc.) permeability and magnetic permeability of steel. After magnetization, the magnetic field at the discontinuity of these materials will be distorted, forming part of the magnetic flux leakage and generating a magnetic leakage field. Thus attracting magnetic powder to form magnetic powder accumulation at the defect - magnetic marks, under the appropriate lighting conditions, showing the location and shape of the defect

Application

Fluorescent magnetic particle flaw detection machine is used to detect the surface and near surface of ferromagnetic workpieces (such as bolts, pins, bushings, gears, gear rings, crankshaft, etc.) due to forging, quenching, grinding, fatigue caused by cracks and slag inclusion and other minor defects.

Technical parameter

Detection range: diameter (φ400mm), length 1000mm

Detection method: fluorescent or non-fluorescent magnetic particle detection

Magnetization mode: circumferential, longitudinal, composite magnetization

Electrode spacing: 0~1000mm (adjustable)

Clamping mode: pneumatic clamping

Magnetizing current: 0~6000A

Demagnetization effect: 5 А/cm

Detection sensitivity: A1 standard test film (15/50) clearly displayed

Power supply: three-phase 5-wire AC 380V 50Hz

Testing parameters
Current Name AC
Circumferential magnetizing current(A) 5500
Longitudinal magnetization method Electromagnetic yoke, coil located inside the electrode box
Longitudinal magnetization current (A) ≮50
Max.coil diameter(mm) 500
Max.pole distance(mm) 1000
Control Manual
Operation interface(*) Touch screen
Clamp(*) pneumatic
Movable electrode head 2PCS
Rotating mode Electric
Ac magnetization method Circumferential magnetization, longitudinal magnetization, composite magnetization
AC demagnetization method Automatic attenuation demagnetization
Spray time manual
Magnetization time each time
Rotational observation time circle
Demagnetization time each time
catch box Volume 40L; Equipped with roller, mixing function,
stainless steel filter, dual use for oil and water
White light illuminance ≮1000 lx
Current measurement error ≤±10%
Air source 0,08-0,1МРа
Power Three-phase five-wire,380V±10%,50Hz
Overall dimension(mm) Length:2500

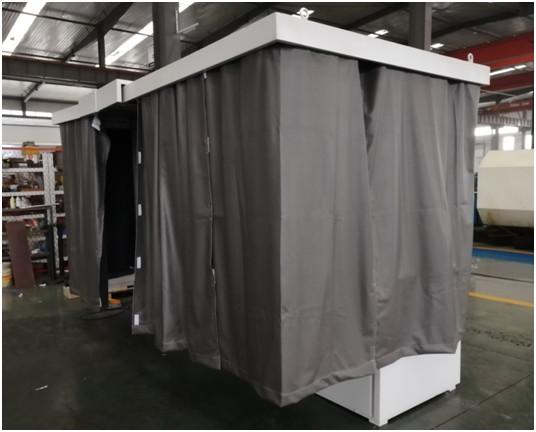

Width: 800mm(dark room is not needed)

Executive standard

Magnetic particle flaw detection machine: GB/ T8290-2011

Observation conditions for magnetic particle inspection: GB/T 5097-2020/ ISO 3059:2012

American Society for Materials and Testing: Magnetic Particle Test Method ASTM E1444-01

European Union, international standard: DIN EN ISO 9934-2-2003

Standard configuration

1 main machine of fluorescent magnetic particle flaw detection machine

Magnetic suspension spray recovery system 1 set

One Gauss meter

1 magnetic suspension concentration measuring tube
