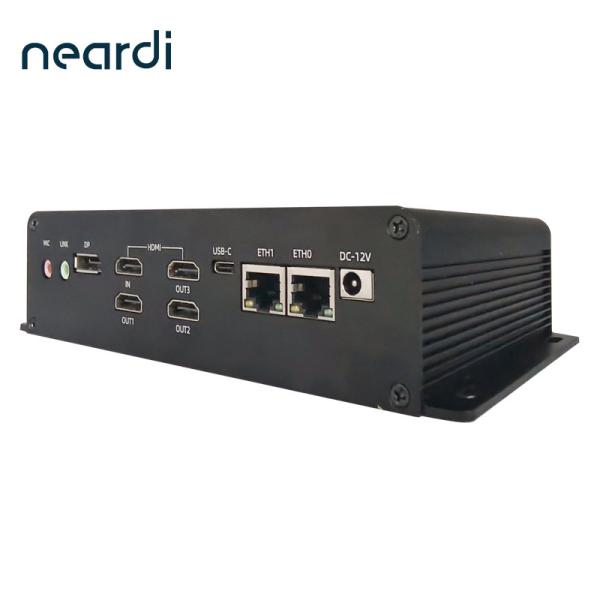

The LPC3588 intelligent computer is a product meticulously designed based on the Rockchip RK3588 chip. The body is made of full aluminum material with a fanless design and an innovative internal structural combination, allowing key heat-generating components such as the CPU and PMU to efficiently conduct heat to the external aluminum casing, using the entire body casing as a heat dissipation material. This design not only enables the LPC3588 to perform excellently in more severe working environments but also allows it to be widely applied in various industrial scenarios.
The LPC3588 has a variety of interfaces, including 3 Type-A USB 3.0 HOSTs and 1 Type-C USB 3.1 OTG, suitable for connecting multiple USB cameras. It has 2 onboard mini-PCIe interfaces that can be expanded to connect 4G modules and NPU computing cards with mini PCIe interfaces based on RK1808. In addition, the LPC3588 supports dual-band WIFI 6, BT5.0, dual 1000M Ethernet, and other communication module interfaces. It provides multiple display interfaces such as 3 HDMI outputs, 1 HDMI 2.0 interface input, and 1 DP interface output, and can achieve multi-screen independent display.
The LPC3588 supports multiple operating systems such as Android, buildroot, Debian, and Ubuntu, offering excellent high performance, high reliability, and high scalability. The system source code is open to users, providing open-source support for secondary development and customization. We are committed to providing developers and enterprise users with comprehensive technical services to assist users in efficiently completing research and development work and helping customers quickly bring products to market.
Product Parameters
Function | Description |
CPU | 8nm advanced process technology with an 8-core 64-bit architecture (4A76 + 4A55), offering high performance with low power consumption. |
GPU | ARM Mali-G610 MC4 GPU, featuring a dedicated 2D graphics acceleration |
NPU | 6TOPS computing power for AI-related tasks. |
VPU | Capable of 8K video encoding and decoding, as well as 8K display output |
DDR | LPDDR4, with options for 4GB/8GB/16GB. |
eMMC | eMMC 5.1, with options for 32GB/64GB/128GB. |
PMU | RK806 |
OS | Android / Buildroot / Debian / Ubuntu |
Hardware Interface | |
Power input | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 3*Type-A USB3.0 HOST + 1* Type-C USB3.1 OTG |
Display output | 2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps 1*Type-A HDMI 1.4 up to 1080P@60fps 1* DP1.2 2Lane Output |
Display in | 1* HDMI-IN(4K@60fps), Support HDCP 2.3 |
Audio | φ3.5mm earphone Jack with L/R audio out; φ3.5mm micphone Jack with Mic in |
Size | L*W*H(mm) 204*120.5*48.2 |
Operating Temperature | -10 ~ 70℃ |
Weight Approximately | 645 g (excluding peripherals) |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
