8K60fps Processor Android Embedded Board RK3588 4GB 8GB 16GB 32GB
8K60fps Processor Android Embedded Board RK3588 4GB 8GB 16GB 32GB
8K60fps Processor Android Embedded Board RK3588 4GB 8GB 16GB 32GB
8K60fps Processor Android Embedded Board RK3588 4GB 8GB 16GB 32GB
8K60fps Processor Android Embedded Board RK3588 4GB 8GB 16GB 32GB
8K60fps Processor Android Embedded Board RK3588 4GB 8GB 16GB 32GB
Specifications
Brand Name :
Neardi
Model Number :
LKD3588J
Place of Origin :
Shanghai, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000/pieces/mon
Delivery Time :
7 days
Packaging Details :
33.5×19×9 cm
Power input :
12V/2A
PCIe :
mini PCIe, 2G/3G/4G available; RK1808 AI available.
NPU :
6 TOPS, supports INT4/INT8/INT16/FP16 mixed operating
DDR :
4GB/8GB/16GB/32GB 64bit LPDDR4/LPDDR4x/LPDDR5
CPU :
quad-core Cortex-A76@2.4GHz + quad-core Cortex-A55@1.8GHz
USB :
4 × USB3.0 1 × USB2.0
Dimensions :
Length * Width * Height (mm) 160*115*28.25 mm
VPU :
8K@60fps
Description

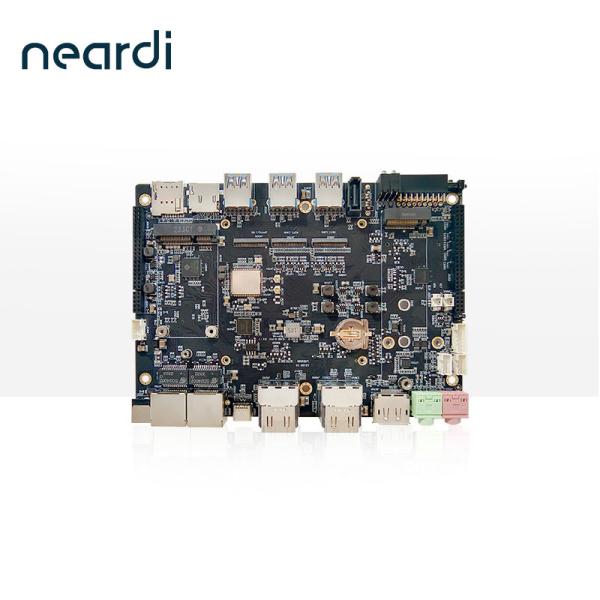

8K@60fps Android Embedded Board RK3588 4GB/8GB/16GB/32GB

Product Description:

The LKD3588 is designed for versatile industrial applications, merging the power of Rockchip’s RK3588 chip with the precision engineering of our LCB3588 core module and baseboard. The core module securely connects to the baseboard via a B2B connector, held in place by four M2 screws, guaranteeing reliable performance. Its compact, flat design, combined with extensive interfaces and features, makes it ideal for products with space constraints.

Technical Parameters:

Function Description
CPU RK3588, quad-core Cortex-A76@2.4GHz + quad-core Cortex-A55@1.8GHz
GPU • Mail-G610 MP4
• OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU 6 TOPS, supports INT4/INT8/INT16/FP16 mixed operating
VPU

Decode:Maximum support 8K@60fps, H.265/H.264/AV1/VP9/AVS2

Encode:Maximum support 8K@60fps, H.264/H.265
DDR 4GB/8GB/16GB/32GB 64bit LPDDR4/LPDDR4x/LPDDR5
eMMC eMMC 5.1, 8GB/16GB/32GB/64GB/128GB(Optional)
Network

2x10/100/1000 Mbps Ethernet

Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac/ax, up to 433Mbps.BT 5.02G/3G/4G/5G(Optional)
RAM MicroSD(TF) with SDIO3.0
System Android / Ubuntu / Buildroot
Size 160*115*28.25 mm
Hardware Interface
Power input 12V/2A
USB 4 × USB3.0
1 × USB2.0
Display Interface 2×HDMI 2.1 @60fps or 4K@120fps
1×HDMI 1.4 1080P@60fps
1× LVDS 1080P@60HZ
1 × DP1.4(8K@30fps, USB 3.0)
1× DP1.2 2 Lane output
1 × HDMI-IN(4K@60fps), HDCP 2.3 Available.
Audio Interface

1 × 3.5mm headphone audio output 1 × 3.5mm microphone audio input

1 × HDMI audio output 2 × Speaker output (2.7W/4Ω)
Camera Interface 2× MIPI CSI (4 Lane) or 2×MIPI CSI (2 Lane) + 1* MIPI CSI (4 Lane)
PCIe mini PCIe, 2G/3G/4G available;
RK1808 AI available.
M.2 M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD
SD card SDIO 3.0
Others 5x ADC, 1x I2C(CTP available), 2*SATA,3x Uart, 1xI2C

Support and Services:

The Single Board Computer product technical support and services includes:

- Assistance with product installation and setup

- Troubleshooting and resolution of technical issues

- Firmware and software updates

- Guidance with configuring the product for specific applications

- Warranty and repair services

- Technical documentation and user guides

Packing and Shipping:

Product Packaging:

Our Single Board Computer product comes in a sturdy cardboard box to ensure safe transportation and delivery. Inside the box, the product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

We offer free shipping on all orders of our Single Board Computer product. Orders are processed within 24 hours and shipped via standard ground shipping. Delivery times may vary depending on the destination, but typically range from 3-7 business days within the United States.

FAQ:

Q: What is the model number of this Single Board Computer?

A: The model number is LKD3588.

Q: Where is this Single Board Computer manufactured?

A: It is manufactured in Shanghai, China.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity is 1 piece.

Q: Is the price negotiable?

A: Yes, the price is negotiable.

Q: What are the payment terms accepted for this product?

A: The payment terms accepted are L/C, D/A, D/P, and T/T.

Q: What is the supply ability for this product?

A: The supply ability is 10000 pieces per month.

Q: What is the delivery time for this product?

A: The delivery time is 7 days.

Q: What are the packaging details for this product?

A: The packaging details are 33.5×19×9 cm.
