Specifications
Brand Name :
Neardi
Model Number :
LBA3588S
Place of Origin :
Shanghai, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000/pieces/mon
Delivery Time :
7 days
Packaging Details :
33.5×19×9 cm
SoC :
RK3588s
Supplier Type :
OEM/ODM
CPU :
8 nm, 4*A76+4*A55
GPU :
ARM Mali-G610 MC4
NPU :
6 TOPS
VPU :
8K
DDR :
LPDDR4, 4GB/8GB/16GB(Optional)
eMMC :
eMMC 5.1, 32GB/64GB/128GB(Optional)
Working Temperature :
-10 ~ 70℃
Embedded :
Yes
PCB interface :
B2B
OS :
Android/Buildroot/Debian/Ubuntu
Application :
Robotics
Description

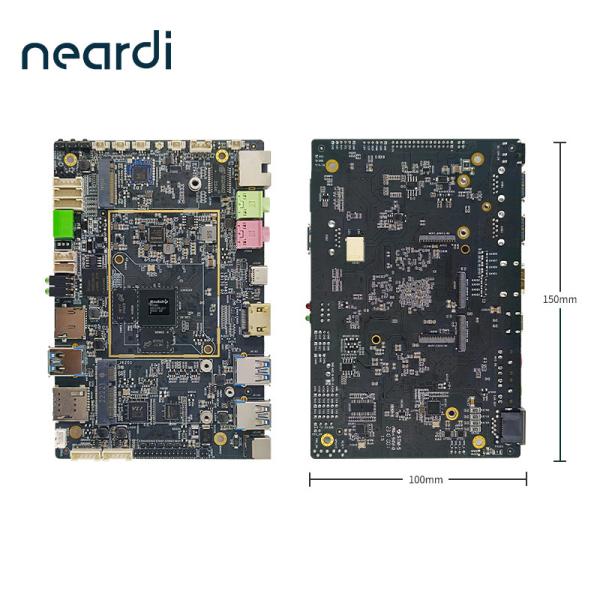

RK3588S Android Embedded Board ARM Mali-G610 MC4 B2B

The LBA3588S is a multifunctional industry board, meticulously crafted using the Rockchip RK3588S chip platform. This compact, thin, and flat board is loaded with various functions and rich interfaces, making it ideal for products with limited structural space.

Supporting Android, Buildroot, Debian, and Ubuntu systems, the LBA3588S offers high performance, reliability, and scalability. Its open system source code allows users to develop and customize applications. Our company provides comprehensive technical support, enabling developers and enterprise users to complete research and development efficiently, significantly shortening the product development and mass production cycle.

Product Parameters
Function Description
SOC RK3588S 8nm; 4*A76+4*A55
GPU ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2
OpenCL 1.1/1.23/2.0
NPU 6 TOPS, supports INT4/INT8/INT16/FP16/BF16/TF32
VPU Decode: 8K@60fps H.265/H.264/AV1/VP9/AVS2Encode: 8K@30fps H.264/H.265
DDR 4GB/8GB/16GB LPDDR4
eMMC eMMC 5.1, 32GB/64GB/128GB
System Android / Ubuntu / Buildroot / Debian
Size L*W*H(mm) 150*100*12.67
Working Temperature -10 - 70℃
Weight 112g
Hardware
Power DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)
USB 3*Type-A USB3.0 HOST
1* Type-C USB3.1 OTG
Display 1*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps
Dual channel LVDS up to 1080P@60HZ
Audio φ3.5mm earphone Jack with L/R audio out
φ3.5mm microphone Jack with Mic in
2*2.7W/4Ω speaker out with L/R channel
Camera 2* MIPI CSI (4 Lane) or 4*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane)
Mini-PCIe mini PCIe for 2G/3G/4G/5G module
RK1808 AI computing card
M.2 M.2 NGFF ( M-KEY ) PCIE V3.0 x4 with NVMe SSD supported
SD card Compatible with SDIO 3.0 protocol, system boot-up supported
SIM card Micro sim slot for Mini-PCIe 4G LTE module
RJ-45 1*10/100/1000-Mbps data transfer rates
RTC RTC power on and off supported
Serial port 2*Uart,1*CANBUS,2*RS232,RS485,1*I2C
Keys 3* keys (power, reset, update)

RK3588S Android Embedded Board Single Board Computer ARM Mali G610 MC4
Developer's Must-Read!
Welcome to our Resource Center, where you can find various helpful links and information for developers.
Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
