8 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A76
8 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A76
8 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A76
8 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A76
8 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A76
8 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A76
Specifications
Model Number :
LKD3588
Place of Origin :
Shanghai, China
Brand Name :
Neardi
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000/pieces/mon
Delivery Time :
7 days
Packaging Details :
33.5×19×9 cm
Product Category :
Single Board Computer
Embedded :
Yes
EMMC :
eMMC 5.1, with options for 32GB/64GB/128GB.
Mini PCIe :
mini PCIe for 2G/3G/4G/5G module, RK1808 AI computing card
USB :
3*Type-A USB3.0 HOST, 1* Type-C USB3.1 OTG
M.2 :
M.2 NGFF ( M-KEY ) PCIE V3.0 x4 with NVMe SSD supported
Camera :
3* MIPI CSI (4 Lane) or 2*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane)
CPU :
4*Cortex-A76+4*Cortex-A55
Description

8-Core 64-Bit Processor Android Embedded Board With 4*Cortex-A76 4*Cortex-A55 CPU And 3*Type-A USB3.0 HOST

Product Description:

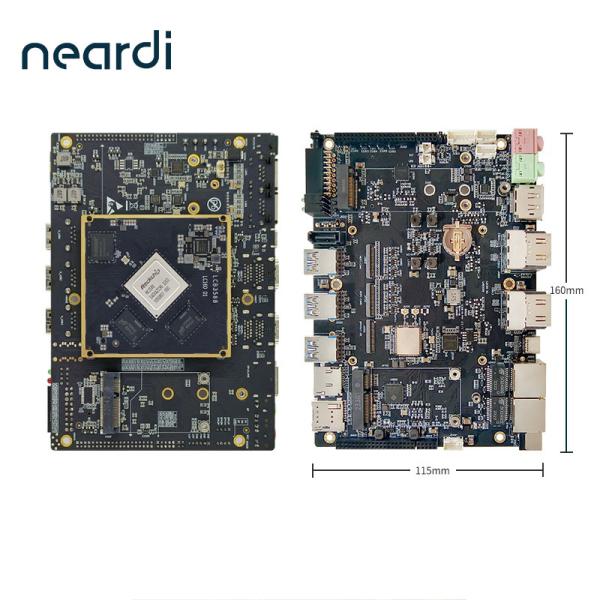

Meet the LKD3588, a multifunctional industrial application board crafted around Rockchip's RK3588 chip platform. It includes our LCB3588 core module and baseboard, connected with a B2B connector and secured with 4 M2 screws to ensure stability and reliability. This board is packed with features, interfaces, and a compact, flat design, ideal for products with tight structural constraints.

8 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A768 Core 64Bit Processor Embedded SBC Computing Custom Single Board Computer Cortex A76

Features:

  • Product Name: Single Board Computer
  • OS:
    • Android
    • Ubuntu
    • Buildroot
    • Debian
  • Dimensions: Length * Width * Height (mm) 160*115*28.25
  • CPU: 4*Cortex-A76+4*Cortex-A55
  • Mini PCIe: mini PCIe for 2G/3G/4G/5G module, RK1808 AI computing card
  • EMMC: eMMC 5.1, with options for 32GB/64GB/128GB.

This is a development board that can be used as a single board computer with display. It is an embedded Linux single board computer.

Technical Parameters:

Product Name: Neardi RK3588S ARM Single Board Computer LBA3588S For DC/DC Isolated Power Supply
Product Category: Single Board Computer
Application: Consumer Electronics/IoT Applications
Dimensions: Length * Width * Height (mm) 160*115*28.25
Display: 1*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps, Duel channel LVDS up to 1080P@60HZ
USB: 3*Type-A USB3.0 HOST, 1* Type-C USB3.1 OTG
VPU: Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; Supports H.264/H.265 video encoding, up to 8K30FPS.
EMMC: eMMC 5.1, with options for 32GB/64GB/128 GB.
Mini PCIe: mini PCIe for 2G/3G/4G/5G module, RK1808 AI computing card
M.2: M.2 NGFF ( M-KEY ) PCIE V3.0 x4 with NVMe SSD supported

This is a single board computer for industrial use with display and options for 4G LTE modules.

Support and Services:

Our Single Board Computer product comes with comprehensive technical support and services to ensure that our customers have a smooth and hassle-free experience. Our team of experienced engineers and technicians are available to assist with any technical issues that may arise during installation or operation of the product.

We offer a range of services, including:

  • Installation and configuration support
  • Hardware and software troubleshooting
  • Product updates and upgrades
  • Customized solutions for specific needs
  • Training and documentation

Our goal is to help our customers maximize the potential of our Single Board Computer product and ensure that it meets their specific requirements. If you have any questions or issues, please do not hesitate to reach out to our technical support team.

Packing and Shipping:

Product Packaging:

The Single Board Computer will be carefully packed in a sturdy cardboard box to ensure its safety during transportation. The box will be sealed with packing tape and labeled with the product name and details.

Shipping:

We offer free standard shipping for all orders within the United States. The estimated delivery time is 3-5 business days. For international orders, shipping rates will vary depending on the destination and shipping method selected at checkout. Please allow additional time for customs clearance.

FAQ:

1. Q: Where is this Single Board Computer manufactured?

A: This Single Board Computer is manufactured in Shanghai, China.

2. Q: What is the brand name of this Single Board Computer?

A: The brand name of this Single Board Computer is Neardi.

3. Q: What is the minimum order quantity for this Single Board Computer?

A: The minimum order quantity for this Single Board Computer is 1 piece.

4. Q: What are the available payment terms for purchasing this Single Board Computer?

A: The available payment terms for purchasing this Single Board Computer are L/C, D/A, D/P, and T/T.
