Rockchip Cortex M55 Arm 64 Bit SBC For Robotics and Drones
Rockchip Cortex M55 Arm 64 Bit SBC For Robotics and Drones
Rockchip Cortex M55 Arm 64 Bit SBC For Robotics and Drones
Rockchip Cortex M55 Arm 64 Bit SBC For Robotics and Drones
Rockchip Cortex M55 Arm 64 Bit SBC For Robotics and Drones
Rockchip Cortex M55 Arm 64 Bit SBC For Robotics and Drones
Specifications
Brand Name :
Neardi
Model Number :
LKD3588
Place of Origin :
Shanghai, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
10000/pieces/mon
Delivery Time :
7 days
Packaging Details :
33.5×19×9 cm
SoC :
RK3588
Supplier Type :
OEM/ODM
CPU :
4*Cortex-A76+4*Cortex-A55
GPU :
ARM Mali-G610 MC4
NPU :
6 TOPS
VPU :
8K
DDR :
LPDDR4, 4GB/8GB/16GB
EMMC :
EMMC 5.1, 32GB/64GB/128GB
Working Temperature :
-10 ~ 70℃
PCB Interface :
B2B
Description

Rockchip Cortex M55 Arm 64 Bit SBC For Robotics and Drones

Product Description:

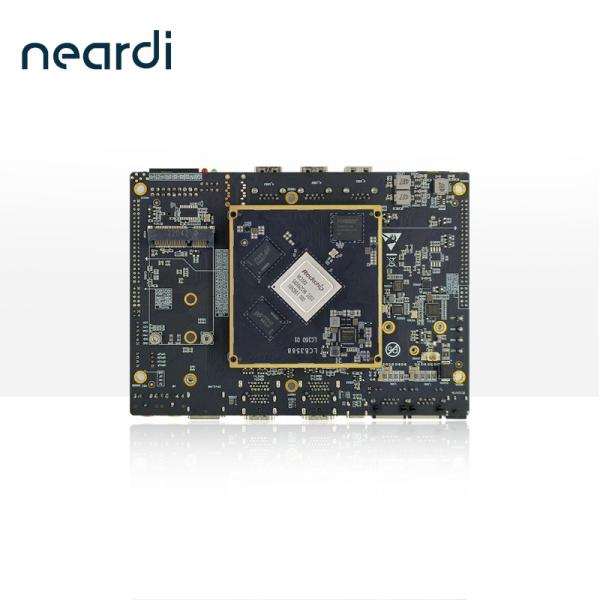

The LKD3588 is a highly functional industrial application board designed using Rockchip's RK3588 chip platform. It features our LCB3588 core module and baseboard, connected via a B2B connector and fixed with 4 M2 screws for stability and reliability. This board is multifunctional, with numerous interfaces, and a compact, slim design, making it suitable for products with limited space.

Function Description
CPU RK3588, quad-core Cortex-A76@2.4GHz + quad-core Cortex-A55@1.8GHz
GPU • Mail-G610 MP4
• OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU 6 TOPS, supports INT4/INT8/INT16/FP16 mixed operating
VPU

Decode:Maximum support 8K@60fps, H.265/H.264/AV1/VP9/AVS2

Encode:Maximum support 8K@60fps, H.264/H.265
DDR 4GB/8GB/16GB/32GB 64bit LPDDR4/LPDDR4x/LPDDR5
eMMC eMMC 5.1, 8GB/16GB/32GB/64GB/128GB(Optional)
Network

2x10/100/1000 Mbps Ethernet

Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac/ax, up to 433Mbps.BT 5.02G/3G/4G/5G(Optional)
RAM MicroSD(TF) with SDIO3.0
System Android / Ubuntu / Buildroot
Size 160*115*28.25 mm

Hardware Interface
Power input 12V/2A
USB 4 × USB3.0
1 × USB2.0
Display Interface 2×HDMI 2.1 @60fps or 4K@120fps
1×HDMI 1.4 1080P@60fps
1× LVDS 1080P@60HZ
1 × DP1.4(8K@30fps, USB 3.0)
1× DP1.2 2 Lane output
1 × HDMI-IN(4K@60fps), HDCP 2.3 Available.
Audio Interface

1 × 3.5mm headphone audio output 1 × 3.5mm microphone audio input

1 × HDMI audio output 2 × Speaker output (2.7W/4Ω)
Camera Interface 2× MIPI CSI (4 Lane) or 2×MIPI CSI (2 Lane) + 1* MIPI CSI (4 Lane)
PCIe mini PCIe, 2G/3G/4G available;
RK1808 AI available.
M.2 M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD
SD card SDIO 3.0
Others 5x ADC, 1x I2C(CTP available), 2*SATA,3x Uart, 1xI2C

Applications:

Powerful Camera & Image Processing Capabilities


The LKD3588 single board computer is a camera development board designed for image processing and computer vision applications. Its high-performance computing power and efficient architecture make it an excellent choice for embedded systems requiring real-time image analysis.


Compact & Energy-Efficient Design for Embedded Systems


With its small form factor and low power consumption, the LKD3588 is ideal for space-constrained applications such as:

• Robotics and drones

• Industrial automation

• Portable devices (handheld scanners, medical equipment, etc.)

• Digital signage and kiosks for advanced graphics processing


Ideal for Hobbyists & Development Projects


Beyond industrial use, the LKD3588 is a favorite among makers and developers for custom electronic projects. It serves as a flexible development platform for:

• Home automation systems

• Security and surveillance solutions

• Retro gaming consoles and DIY computing projects


Availability & Ordering Information

• Manufactured in: Shanghai, China

• Minimum Order Quantity: 1 piece

• Pricing: Negotiable

• Payment Terms: L/C, D/A, D/P, T/T

• Supply Capacity: 10,000 pieces/month

• Delivery Time: 7 days

• Packaging Dimensions: 33.5 × 19 × 9 cm


Why Choose the LKD3588?


The LKD3588 is a reliable, scalable, and high-performance solution for a wide range of applications, from industrial automation to DIY electronics. Whether you’re a hobbyist, developer, or enterprise user, this versatile SBC offers the processing power, efficiency, and flexibility needed to bring your projects to life.

Support and Services:

The Single Board Computer product comes with the following technical support and services:

- Product installation and setup guidance

- Troubleshooting and issue resolution

- Firmware and software updates

- Compatibility testing with other hardware and software

- Technical documentation and user manuals

- Warranty and repair services

- Technical consultation and advice

Our team of experienced technicians are available to assist you with any technical questions or concerns you may have. Please do not hesitate to reach out to us for assistance.

Packing and Shipping:

Product Packaging:

  • Single Board Computer
  • Power Adapter
  • Heat Sink
  • Quick Start Guide

Shipping Information:

  • Ships within 24 hours
  • Free Shipping
  • Tracking information will be provided
  • Expected delivery time: 3-5 business days

FAQ:

Q: What is the model number of this Single Board Computer?

A: The model number is LKD3588.

Q: Where is this Single Board Computer manufactured?

A: This product is manufactured in Shanghai, China.

Q: What is the brand name of this Single Board Computer?

A: The brand name is Neardi.

Q: What is the minimum order quantity for this Single Board Computer?

A: The minimum order quantity is 1 piece.

Q: What is the price of this Single Board Computer?

A: The price is negotiable.

Q: What are the available payment terms for this Single Board Computer?

A: The available payment terms are L/C, D/A, D/P, and T/T.

Q: What is the supply ability of this Single Board Computer?

A: The supply ability is 10000 pieces per month.

Q: What is the delivery time for this Single Board Computer?

A: The delivery time is 7 days.

Q: What are the packaging details for this Single Board Computer?

A: The packaging details are 33.5×19×9 cm.
