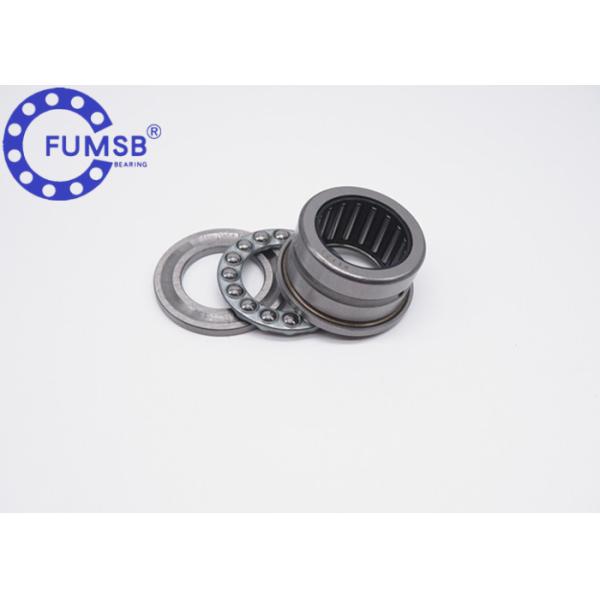

NKX35 D47mm Combined Needle Roller Bearings
NKX35 D47mm Combined Needle Roller Bearings
NKX35 D47mm Combined Needle Roller Bearings
NKX35 D47mm Combined Needle Roller Bearings
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
3062TN
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Model NO :
NKX35
Type :
Needle
Material :
Chrome Steel
lubrication :
oil and grease
material :
bearing steel
Vibration :
V1 V2 V3 V4
Name :
combined needle roller bearing with the inner ring
Description

Combined needle roller bearings thrust ball bearing Industrial Roller Bearings NKX35/40/45/50

The combined needle roller bearings can bear radial loads or intermediate uniaxial axial loads through dense needles.

You can make the space between the axes very small.The minimum center size is the outer ring size of the bearing.

Introduction to composite bearings:

Combined with thrust ball bearing
Combined with thrust roller bearing
Combined with angular contact ball bearing
Combined with three-point contact ball bearing

NKIA
NKIB
NX
NKX
NKXR NKXR..Z
ZARN ZARF

Catalogue:

Fw D C F D C
mm mm mm mm mm mm
NX7-TV 7 14 18 NX7-TV 7 14 18
NX10 10 19 18 NX10-Z 10 19 18
NX12 12 21 18 NX12-Z 12 21 18
NX15 15 24 28 NX15-Z 15 24 28
NX17 17 26 28 NX17-Z 17 26 28
NX20 20 30 28 NX20-Z 20 30 28
NX25 25 37 30 NX25-Z 25 37 30
NX30 30 42 30 NX30-Z 30 42 30
NX35 35 47 30 NX35-Z 35 47 30
Fw D C Fw D C
mm mm mm mm mm mm
NKX10-Z-TV 10 19 23 NKXR15 15 24 23
NKX12-Z 12 21 23 NKXR17 17 26 25
NKX15-Z 15 24 23 NKXR20 20 30 30
NKX17-Z 17 26 25 NKXR25 25 37 30
NKX20-Z 20 30 30 NKXR30 30 42 30
NKX25-Z 25 37 30 NKXR35 35 47 30
NKX30-Z 30 42 30 NKXR40 40 52 32
NKX35-Z 35 47 30 NKXR45 45 58 32
NKX40-Z 40 52 32 NKXR50 50 62 35
NKX45-Z 45 58 32
NKX50-Z 50 62 35
NKX60-Z 60 72 40
NKX70-Z 70 85 40

Packaging Details :

1 . Industrial tube packing + cartons + pallets

2 . Individual colorful or white box + carton + pallets

3 . As the clients ' requirement

Transportation :

1 . Less than 45 KGS ,we will send by express . ( Door to Door , Convenient )

2 . 45 -200 KGS , we will send by air transport . ( Fastest and safest , but expensive )

3 . More than 200 KGS , we will send by sea . ( Cheapest and common use )

Payment :

1 . TT .30 % payment in advance as deposit , balance before delivery .

2 . L / C at sight . ( high bank charges , not suggest , but acceptable )

3 . 100 % Western Union in advance . ( specially for air shipment or small amount )
