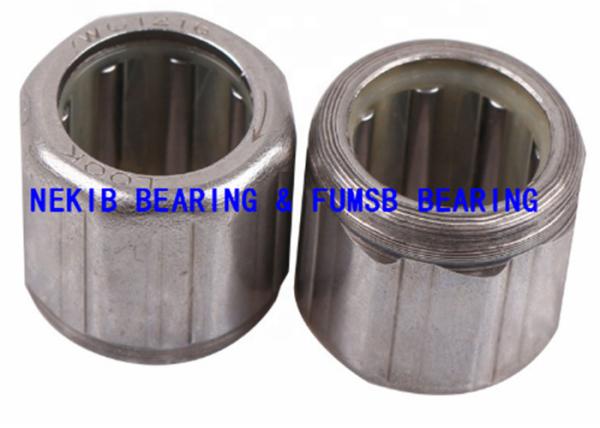

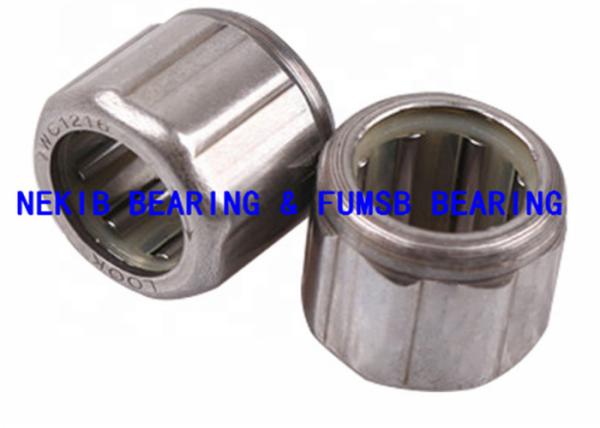

Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
HF081410
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Rows Number :
Single
Material :
Bearing Steel
Service :
OEM Service.Design Service
HS Code :
8482102000
Style :
With Outer Ring
Samples :
Available
Description


HFL3530,HK0509,HK0608,HK0609,Bk0509,Bk0609,One-way needle roller bearing for construction machinery(drawn cup needle roller clutch)

Description:(drawn cup needle roller clutch)


The drawn cup needle roller bearing generally takes its shaft diameter as the internal raceway. However,the proper LR type inner ring can be used in accordance with application condition
The drawn cup needle roller bearing has two structures -with retainer and with full of needles. They are divided into open-end type and close-end type. The structure with retainer has the single seal ring and double seal ring. The structure with full of needles has a large load carrying capacity.

Drawings:(drawn cup needle roller clutch)

Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch

Catalogue of RC series:(drawn cup needle roller clutch)

Model Q Size

N.m
Fw D C
RC02 2 3.175 7.15 6.35 0.32
RC040708 3.5 8.35 11.112 12.7 2.03
RCXJ40708-FS 3.5 8.35 11.112 12.7 2.03
RC061008 4.7 9.525 15.875 12.7 5.45
RC061008-FC 4.7 9.525 15.875 12.7 5.45
RC081208 9.2 12.7 19.05 12.7 8.84
RC081208-FS 9.2 12.7 19.05 12.7 8.84
RC101410 14.5 15.875 22.225 12.7 16.9
RC101410-FS 14.5 15.875 22.225 15.B8 16.9
RC121610 16.2 19.05 25.4 15.08 23.3
RC121610-FS 16.2 19.05 25.4 15.88 23.3
RC162110 17 254 33.336 15.88 49.6
RS161210-FC 17 25.4 33.338 15.88 49.6


and so on.

More details:(drawn cup needle roller clutch)


Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
Steel Drawn Cup One Way Needle Roller Bearing Single Row HF081410 RC Series Drawn Cup Needle Roller Clutch
