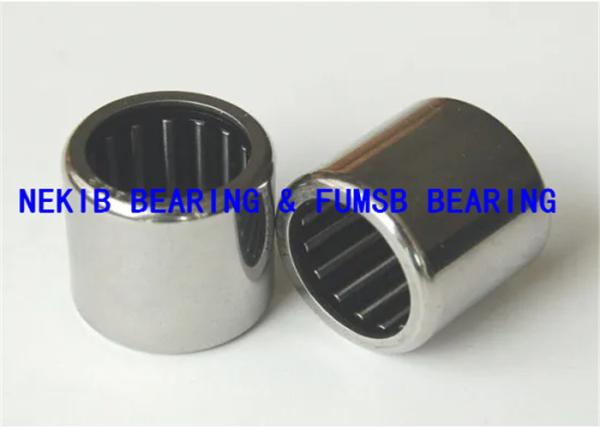

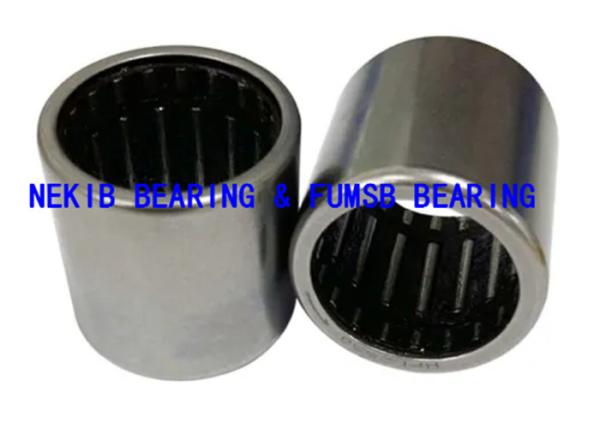

RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch
RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch
RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch
RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch
RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch
RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
RC121610
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Separated :
Unseparated
Specification :
20*26*16
Service :
OEM Service.Design Service
Style :
With Outer Ring
Feature :
Long Life
Lubricated :
Oil Grease
Description

RC121610/One-way needle roller bearing with punched outer ring for construction machinery/Factory price/

Description: (drawn cup needle roller clutch)

Needle bearing with fine and long roller (roller diameter D 5 mm or less, acuity 2.5 L/D, L) for the roller length, so the radial structure is compact,

Its diameter and load capacity at the same time, with other types of bearing outside diameter to a minimum, especially suitable for the limited size of the radial installation supporting structure.

MATERIAL:(drawn cup needle roller clutch)
The outer covering is generally the ST14 low-carbon steel (special occasion may use stainless steel); Keep the shelf usually strengthening nylon;
The needle is a bearing steel to roll , produce according to the needs of customer too. For example: Unidirectional HF2016 is widely applied on the washer bearing!

Drawings:(drawn cup needle roller clutch)

RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch

Catalogue:(drawn cup needle roller clutch)


Bearing Designation		 Mass Approx Designation
Fw D C Torque
g mm Nm
RC02 2 3.175 7.15 6.35 0.32
RC040708 3.5 6.35 11.112 12.7 2.03
RC040708-FS 3.5 6.35 11.112 12.7 2.03
RC061008 4.7 9.525 15.875 12.7 5.45
RC061008-FC 4.7 9.525 15.875 12.7 5.45
RC081208 9.2 12.7 19.05 12.7 8.84
RC081208-FS 9.2 12.7 19.05 12.7 8.84
RC101410 14.5 15.875 22.225 15.88 16.9
RC101410-FC 14.5 15.875 22.225 15.88 16.9
RC121610 16.2 19.05 25.4 15.88 23.3
RC121610-FS 16.2 19.05 25.4 15.88 23.3
RC162110 17 25.4 33.338 15.88 49.6
RC162110-FC 17 25.4 33.338 15.88 49.6
RCB061014 12 9.525 15.875 22.22 4.83
RCB061014-FS 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB081214-FC 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB101416-FS 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB121616-FC 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45
RCB162117-FS 44.8 25.4 33.338 26.99 45

and so on.

RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch

RC121610 Oil Grease One Way Needle Bearing Single Row For Construction Machinery Drawn Cup Needle Roller Clutch
