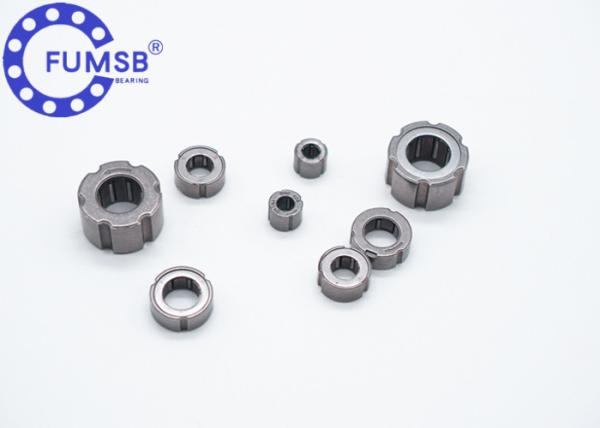

OWC1016 On Printer One Way Needle Roller Bearing Open Seals Type Single Row Drawn Cup Needle Roller Clutch
OWC1016 On Printer One Way Needle Roller Bearing Open Seals Type Single Row Drawn Cup Needle Roller Clutch
OWC1016 On Printer One Way Needle Roller Bearing Open Seals Type Single Row Drawn Cup Needle Roller Clutch
OWC1016 On Printer One Way Needle Roller Bearing Open Seals Type Single Row Drawn Cup Needle Roller Clutch
OWC1016 On Printer One Way Needle Roller Bearing Open Seals Type Single Row Drawn Cup Needle Roller Clutch
OWC1016 On Printer One Way Needle Roller Bearing Open Seals Type Single Row Drawn Cup Needle Roller Clutch
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
OWC1016
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Seals Type :
open
Material :
powder metallurgy
Number of Row :
single
Delivery :
In Stocks
Stock :
Rich
Description

Single Row Powder metallurgy one way needle roller bearing/OWC1016 on printer(drawn cup needle roller clutch)

Description: (drawn cup needle roller clutch)

HF,FC,RC (roller pin coupling): Is composed of the drawn cup and the plastic retainer; The retainer may bring the plastic reed also to be possible on the stainless steel reed guidance roller pin, in the addendum circle incline roller conveyer and the roller pin takes the locking arrangement.(drawn cup needle roller clutch)
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.

Product name Needle Roller Bearing
Model OWC1016
Material ST14
Shaft diameter 10mm
lnner diameter 10mm
Outer diameter 16mm
Weight 3g
Application Fishing machinery, ATM, Counting machine, Printer, copier, etc
Package Roller Pack, Carton box , Pallet or Customized
Payment terms TT. L/C, D/A,D/P,Western Union, Paypal
Delivery time 2-4 days for the sample, 7 days for big order

Catalogue: (drawn cup needle roller clutch)

Shaft Dia. Model Weight Size (mm) Driving Torque
mm g Inner Dia. Outer Dia. Height ( Nm )
4 OWC406GXRZ 1.6 4 8 6 2.5
4 OWC408GXRZ 1.8 4 8 8 3.1
4 OWC410GXRZ 1.8 4 10 5.4 2.8
5 OWC511GXRZ 2 5 11 5.4 3.5
6 OWC612GXRZ 2.3 6 12 5.4 5.2
OWC612GXLZ 2.3 6 12 5.4 5.2
8 OWC814GXRZ 2.8 8 14 5.4 6.1
8 OWC814GXLZ 2.8 8 14 5.4 6.1
OWC812GXRZ 2.8 8 12 5 5.8
10 OWC1016GXRZ 3 10 16 5.4 9.5
10 OWC1016GXLZ 3 10 16 5.4 9.5
6 OWC612-8.4 2.35 6 12 8.4 6.8
6 OWC610GXRZ 2.38 6 10.2 8 4.6
6 OWC614-7 2.1 6 14 7 6.6
6 OWC720 2.5 6 12.7 7.5 7.3
6 OWC178 3 6 10.2 15 7.3
8 OWC816-7 2.6 8 16 7 7.5
8 OWC812 3 8 12.7 7.3 6.8
8 OWC816-5.5 3.5 8 16 5.5 8.2
8 OWC816-6.2 3.8 8 16 6.2 8.8
10 OWC1016-8 3.35 10 16 8 9.7
10 OWC1019GXLZ 8.5 10 19 11 19.8
17 OWC173512 22.5 17 35 12 78
17 OWC173516 25.5 17 35 16 95
17 OWC203316 23 20 33 16 108
