Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
HF3020
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Separated :
Unseparated
Type :
Needle
Precision Rating :
P0 P6 P5 P4 P2
Style :
With Outer Ring
Application :
Machinery
Description

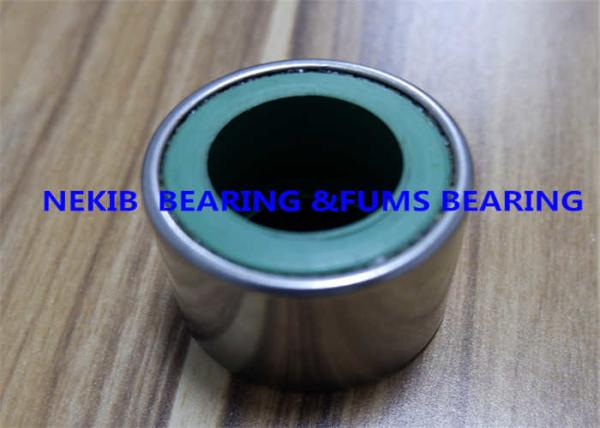

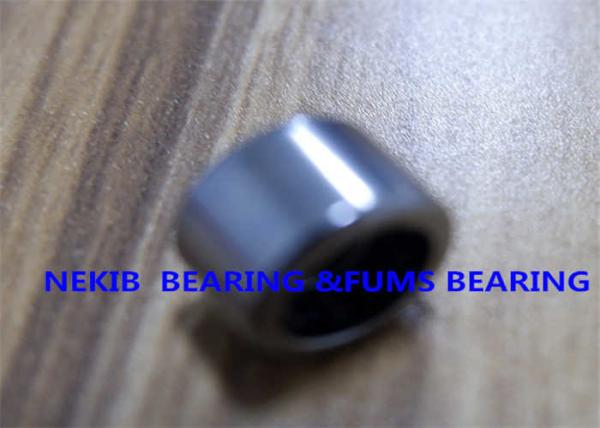

High Performance One-way needle roller bearing with punched outer ring/HF3020 with single row(drawn cup needle roller clutch)

Description: (drawn cup needle roller clutch)

HF,FC,RC (roller pin coupling): Is composed of the drawn cup and the plastic retainer; The retainer may bring the plastic reed also to be possible on the stainless steel reed guidance roller pin, in the addendum circle incline roller conveyer and the roller pin takes the locking arrangement.
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.

Metric size Inch size Description
HF FC steel spring
HF..KF RC plastic spring
HF..R steel spring and knurls on outer ring
HF..KFR plastic spring and knurls on outer ring
HFL FCB steel spring
HFL..KF RCB plastic spring
HFL..R steel spring and knurls on outer ring
HFL..KFR plastic spring and knurls on outer ring

Manufacture process:(drawn cup needle roller clutch)

1. Assembly
2. Windage test
3. Cleaning
4. Rotary test
5. Greasing and gland
6. Noise inspection
7. Appearance inspection
8. Rust prevention
9. Product packaging

Drawings:(drawn cup needle roller clutch)

High Performance One Way Bearing Single Direction Bearing With Single Row Drawn Cup Needle Roller ClutchHigh Performance One Way Bearing Single Direction Bearing With Single Row Drawn Cup Needle Roller Clutch

Shaft Diameter Mass Approx Torgue Ma
Clutch Designation Borndary Dimensions Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 Rotatng Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm
HF series( INA )
3 HF0306KF 0.9 3 6.5 6 0.2 36000 7000 HK0306TN
4 HF0406KF -- 1 4 8 6 0.34 34000 8000 HK0408TN
HF0406KFR -- 1 4 8 6 0.1 34000 8000 HK0408TN
6 HF0608KF 2.8 6 10 8 1.5 20000 11000 HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
HF061210 3.5 6 12 10 3 20000 13000 HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
-- HF061210 3.2 8 12 10 3 16000 12000 HK0808
-- HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
-- HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
-- HF081412 4 8 14 12 5 16000 12000 HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000 HK1010
12 -- HF1216 11 12 18 16 12.2 11000 8000 HK1212
14 -- HF1416 13 14 20 16 17.3 9500 8000 HK1412
16 -- HF1616 14 16 22 16 20.5 8500 7500 HK1612
18 -- HF1816 16 18 24 16 24.1 7500 7500 HK1812
20 -- HF2016 17 20 26 16 28.5 7000 6500 HK2010
25 -- HF2520 30 25 32 20 66 5500 5500 HK2512
30 -- HF3020 36 30 37 20 90 4500 4500 HK3012
35 -- HF3520 40 35 42 20 121 3900 3900 HK3512

Note 1: The one-way bushing cage is made of nylon; KF means that the spring piece on the cage is made of nylon, and the KF means that the spring piece on the cage is stainless steel;

Note 2: R indicates the bearing outer ring knurling to increase the bite force;
