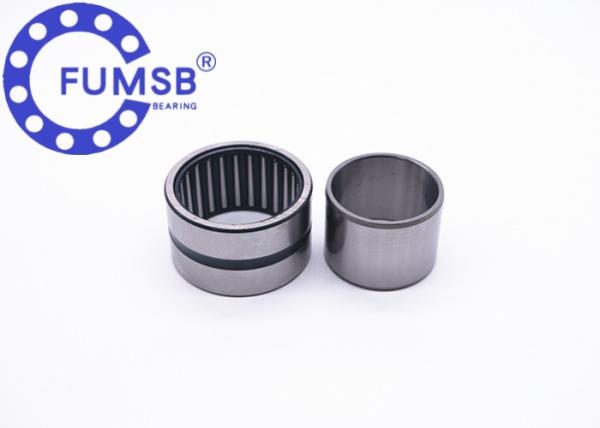

Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage
Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage
Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage
Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage
Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage
Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
NAO25*40*17
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Structure :
Cylindrical
Type :
Needle roller bearing
Cage :
Steel,brass,Nylon
Application :
machine tool
Specification :
Customed
HS Code :
8482102000
Description

High quality Open Seal Steel needle roller bearing without shoulder with inner ring/NAO25*40*17

Description of NA,NKI needle roller bearing with inner ring:

The inner ring has no shoulder in this bearing. For this purpose, the inner ring, outer ring complete set of needles and cage can be mounted respectively. This bearing does not limit the axial shift of shaft and outer housing. Since the cage separates the needles so as to reduce friction. It can be used for the parts with high rotational speed.

Features:

(1) Precision: ABEC-1(P0), ABEC-3(P6), ABEC-5(P5), ABEC-7(P4)

(2) Noise level: Z1, Z2, Z3, Z4

(3) Vibration Level: V1, V2, V3, V4

(4) Clearance: C2, C3, C4

(6) Grease: As your requirement, such as SRL, PS2, Alvania R12 and so on.

Drawings:(NKI,NKIS)

Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage

Parameters of NKI,NKIS series:

Shaft diameter Model Boundary Dimensions Basic load rating Limiting speed
d F D B rS dynamic static oil
C Co
mm mm Min. N rpm
100 NKI 100/30 100 110 130 30 1.1 98000 210000 4200
NKI 100/40 100 110 130 40 1.1 127000 290000 4200
NKIS 100 100 115 135 32 1.1 91000 204000 4000
NA 4920*) 100 115 140 40 1.1 128000 270000 4000
110 NKI 110/40 110 120 140 40 1.1 113000 275000 3900
NA 4922*) 110 125 150 40 1.1 132000 290000 3700
NA 4822*) 110 120 140 30 1 94000 216000 3900
120 NA 4924*) 120 135 165 45 1.1 181000 390000 3400
NA 4824*) 120 130 150 30 1 99000 239000 3600
75 NA 4926*) 130 150 180 50 1.5 203000 470000 3100
NA 4826*) 130 145 165 35 1.1 118000 310000 3200
140 NKI 140/32 140 155 180 32 1.5 114000 260000 3000
NA 4928*) 140 160 190 50 1.5 209000 500000 2900
NA 4828*) 140 155 175 35 1.1 120000 325000 3000
150 NA 4830*) 150 165 190 40 1.1 152000 400000 2800
160 NA 4832*) 160 175 200 40 1.1 160000 435000 2700
170 NA? 4834 170 185 215 45 1.1 185000 510000 2500
180 NA? 4836*) 180 195 225 45 1.1 194000 550000 2400
190 NA? 4838 190 210 240 50 1.5 227000 690000 2300
200 NA 4940*) 200 220 250 50 1.5 230000 720000 2200
220 NA? 4844*) 220 240 270 50 1.5 243000 790000 2000
240 NA? 4848*) 240 265 300 60 2 355000 1080000 1800
260 NA? 4852*) 260 285 320 60 2 370000 1160000 1700
280 NA 4856*) 280 305 350 69 2 450000 1300000 1500
300 NA? 4860*) 300 330 380 80 2.1 620000 1770000 1400
320 NA? 4864 320 350 400 80 2.1 630000 1850000 1300
340 NA? 4868 340 370 420 80 2.1 640000 1940000 1300
360 NA? 4872 360 390 440 80 2.1 660000 2020000 1200
380 NA? 4876 380 415 480 100 2.1 100000 2900000 1100

Open Seal Steel Needle Roller Bearing NAO25x40x17 Steel Brass Nylon Cage
