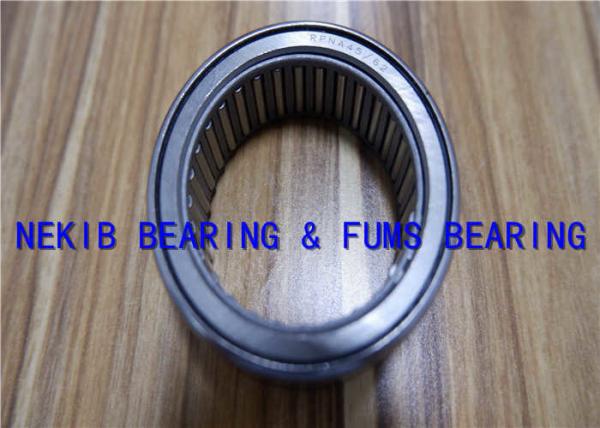

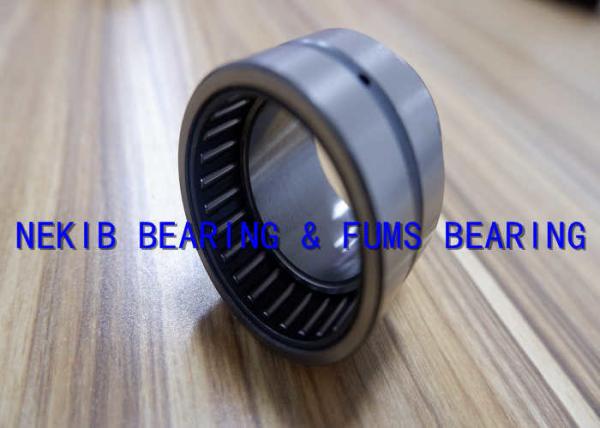

High Precision Open Seal Steel Needle Roller Bearing NAO9x22x12 TN 8482102000
High Precision Open Seal Steel Needle Roller Bearing NAO9x22x12 TN 8482102000
High Precision Open Seal Steel Needle Roller Bearing NAO9x22x12 TN 8482102000
High Precision Open Seal Steel Needle Roller Bearing NAO9x22x12 TN 8482102000
High Precision Open Seal Steel Needle Roller Bearing NAO9x22x12 TN 8482102000
High Precision Open Seal Steel Needle Roller Bearing NAO9x22x12 TN 8482102000
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
NAO 9x22x12 TN
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Structure :
Cylindrical
Type :
Needle roller bearing
Cage :
Steel,brass,Nylon
Application :
machine tool
Specification :
Customed
HS Code :
8482102000
Description

High precision Open Seal Steel needle roller bearing without shoulder with inner ring/NAO9x22x12 TN

Description:

The solid ring needle bearing is composed of one or two rings and a needle set with a cage. Depending on the application, it can be divided into bearings with or without an inner ring. Therefore, the solid ring needle roller bearings can meet the requirements of light weight, small space occupation and large transmission power. The solid ring needle roller bearing has a smaller volume and a higher bearing capacity.

Features:

1) Precision: ABEC-1(P0), ABEC-3(P6), ABEC-5(P5), ABEC-7(P4)

2) Noise level: Z1, Z2, Z3, Z4

3) Vibration Level: V1, V2, V3, V4

4) Clearance: C2, C3, C4

6) Grease: As your requirement, such as SRL, PS2, Alvania R12 and so on.

Drawings of NAO Series(single row/double rows):

High Precision Open Seal Steel Needle Roller Bearing NAO9x22x12 TN 8482102000

Catalogue of NAO Series(Steel roller bearing with inner ring):

Shaft diameter Model Boundary dimensions Basic load rating limiting speed
FW D C E D1 d2 D2 rS Dynamic Static n1 oil≈
C Co
mm mm min. N min-1
6 NAO 6X17X10 TN 13 10.3 12.7 13.3 0.3 4750 5500 29000
9 NAO 18 12.3 17.6 18.3 0.3 10000 9900 26000
9X22 X12 TN
12 NAO 12X24X13 20 16.4 19.6 20.3 0.3 8900 11800 24000
NAO 12X24X20 20 16.4 19.6 20.3 0.3 13300 19800 24000
NAO 12X28X12 22 16.4 21.6 22.3 0.3 10 12500 23000
15 NAO 15X28X13 24 20.4 23.6 24.3 0.3 9800 14300 21000
NAO 15X32X12 26 20.4 25.6 26.5 0.3 13400 16200 21000
17 NAO 17X30X13 26 22.4 25.6 26.3 0.3 10400 15900 20000
NAO 17X35X16 29 22.4 28.4 29.5 0.3 20000 25500 19000
20 NAO 20X35X17 29 25.6 28.4 29.5 0.3 14900 26000 18000
NAO 20X37X16 32 25.6 31.4 32.5 0.3 21000 28000 17000
25 NAO 25X40X17 35 30.6 34.4 35.5 0.3 19600 34000 0
NAO 25X42X16 37 30.6 36.4 37.5 0.3 23100 33500 0
0NAO 25X42X32 37 30.6 36.4 37.5 0.3 39500 37000 0
30 NAO 30X45X13 40 35.6 39.4 40.5 0.3 16200 28000 13000
NAO 30X45X17 40 35.6 39.4 40.5 0.3 20800 38500 13000
0NAO 30X45X26 40 35.6 39.4 40.5 0.3 27500 56000 13000
NAO 30X47X16 42 35.6 41.4 42.5 0.3 24400 37500 13000
NAO 30X47X18 42 35.6 41.4 42.5 0.3 27500 43000 13000
NAO 30X52X18 44 37.6 43.4 44.5 0.3 28000 45500 12000
35 NAO 35X50X17 45 40.6 44.4 45.5 0.3 21400 40 12000
NAO 35X55X20 47 40.6 46.2 47.5 0.3 32500 57000 11000
*NAO 35X57X20.5 50 42.6 49.2 50.5 0.3 36000 59000 11000
40 NAO 40X55X17 50 45.69 49.2 50.5 0.3 22500 46000 10000
NAO 40X65X20 58 50.6 57.2 58.5 0.3 35500 62000 9000
50 NAO 50X68X20 60 55.8 59.2 60.8 0.6 28500 66000 8500
NAO 50X78X20 68 60.8 67.2 68.8 1 43500 85000 7500
70 NAO 70X100X30 88 81 87.2 89 1 72000 179000 6000
