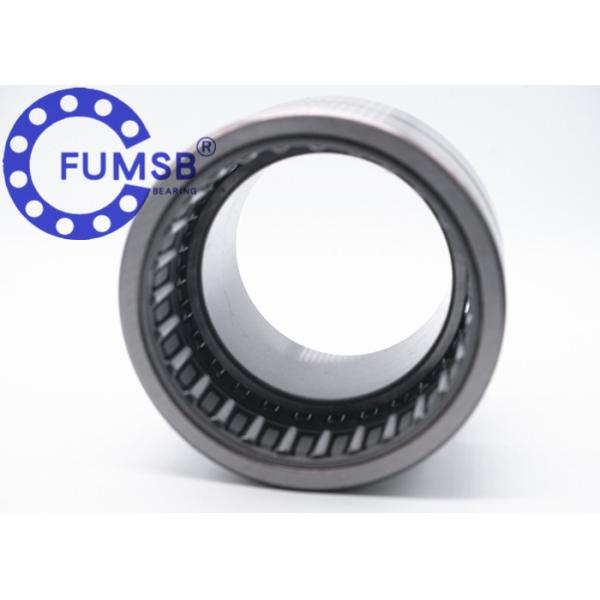

Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads
Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads
Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads
Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads
Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads
Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
RNAV4903
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Specification :
Bearing steel GCR15
Spherical :
Non-Aligning Bearings
Application :
Engineering Machinery
HS Code :
8482400000
Rolling Body :
Roller Bearings
Roller Type :
Needle Rollers
Description

Full coplement needle roller bearing with or without inner ring/NAV/RNAV Series

Description of NAV,RNAV series full complement needle roller bearings:

As for the full complement needle roller bearing with inner ring, the outer ring has the oil hole. The lubricating oil can be fed in from the oil hole. The outer ring has the double shoulders. As for the full complement needle roller bearing without inner ring, since the inner ring has no shoulder and cage, the inner ring, outer ring complete set of needles can be mounted respectively. It is s suitable for parts of which the radial size is limited.The surface of shaft journal fitted with it is acted directly as rolling surface. It is requested that the surface hardness be no less than HRC60, surface roughness, no more than 0. 63um. This kind of full complement bearing, with inner ring or without inner ring, does not limit the axial shift of shaft and housing.

Since this kind of bearing has no cage, the needles rotate without correct guiding, they rub heavily against each other and the bearing has the low limiting rotational speed.

Parameters of RNAV4903:

Model Number Needle roller bearing RNAV 4903
wn Brand NEKIB or FUMSB
ID*OD*W(mm) 22x30x13mm
Net weight(g) 45g
Seals type Open
Rings Material Chrome steel-GCr15, high Carbon steel-GCR11,Stainless steel-440C,304 316
Cages Material steel,brass,nylon
Quality standard ISO9001:2008 SASO CE PVOC
Precsion

P0,P6,P5,P4

ABEC-1,ABEC-3,ABEC-5 etc
Clearance C0,C1,C2,C3,C4,C5
Noise Z1,Z2,Z3
Vibration V1,V2,V3
HRC 58-62HRC
Tolerance Grade GB/T307.1-205
Delivery time 7-25 days
Payment term B: 100% LC AT SIGHT
Services OEM,ODM,OBM Services
Packing Single box,tube packing,industrial packing or according to customers' requirement
MOQ 100 PCS
Main Market Asia,Europe,America,Africa,Middle East,Australia etc.

Feature:

  • Drawn cup needle roller bearing for applications with high dynamic loads
  • Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces
  • Steel cage guides and evenly spaces rollers for reduced friction, vibration, and noise
  • Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads

Drawings of NAV,RNAV series:

Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic LoadsFull Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads

Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads

Catalogue of RNAV 49 series:

Model Number d(mm) D(mm) B(mm)
RNAV 4902 20 28 13
RNAV 4002 21.87 32 17
RNAV 4903 22 30 13
RNAV 4003 24.3 35 18
RNAV 4904 25 37 17
RNAV 4004 28.7 42 22
RNAV 4905 30 42 17
RNAV 4005 33.5 47 22
RNAV 4906 35 47 17
RNAV 4006 40.1 55 25
RNAV 4907 42 55 20
RNAV 4007 45.9 62 27
RNAV 4908 48 62 22
RNAV 4008 51.6 68 30
RNAV 4909 52 68 22
RNAV 4009 57.4 75 30
RNAV 4910 58 72 22
RNAV 4010 62.1 80 30
RNAV 4911 69.8 90 35
RNAV 4912 68 85 25
RNAV 4012 74.6 95 35
RNAV 4013 80.3 100 35

Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads

Full Complement Sealed Needle Roller Bearing NAV RNAV Series With High Dynamic Loads
