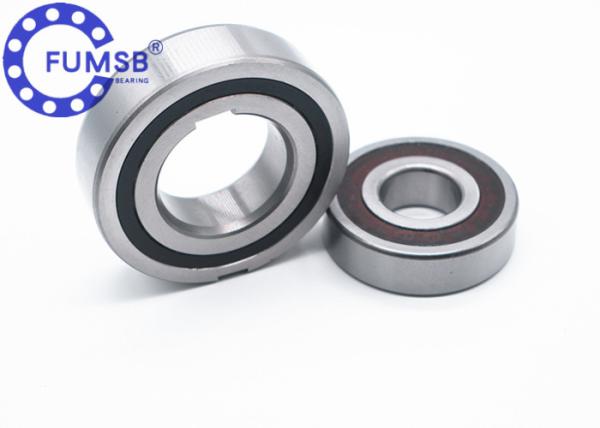

High Precision One Way Clutches Gcr15 Chrome Steel AS Series For Reducers Drawn Cup Needle Roller Clutch
High Precision One Way Clutches Gcr15 Chrome Steel AS Series For Reducers Drawn Cup Needle Roller Clutch
High Precision One Way Clutches Gcr15 Chrome Steel AS Series For Reducers Drawn Cup Needle Roller Clutch
High Precision One Way Clutches Gcr15 Chrome Steel AS Series For Reducers Drawn Cup Needle Roller Clutch
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
AS series
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Application :
machinery
Precision Rating :
P6
Stock :
Rich
Sample :
Accept
Material :
Gcr15
HS Code :
84836000
Description

High precision Chrome Steel One way clutches AS series for Reducers(drawn cup needle roller clutch)

Decription of products:(drawn cup needle roller clutch)

One-way clutch is composed of outer seat ring, inner seat ring, retainer, wedge block, etc.When the inner seat ring is fixed, the outer seat ring rotates the wedge clockwise without locking, and the outer seat ring can rotate freely.When the outer seat turns counterclockwise, the wedge lock, the outer seat cannot rotate.

The purpose of the cage is to make the wedge always tilt slightly in the direction of the locking outer ring to enhance the locking function of the wedge.

Drawing:(drawn cup needle roller clutch)


High Precision One Way Clutches Gcr15 Chrome Steel AS Series For Reducers Drawn Cup Needle Roller Clutch

Catalogue:(drawn cup needle roller clutch)

Type Size Overrunning speeds Weight Drag torque
AS
(NSS TSS)		 dH7 TKN1) nimax2) namax3) Dr6 D5 L s e f TR
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
6 2.1 5000 7500 19 15.8 6 0.3 0.6 0.3 0.01 0.18
8 3.8 4300 6500 24 20 8 1.3 0.6 0.6 0.02 0.24
10 6.8 3500 5200 30 25.9 9 1.3 0.6 0.6 0.03 0.36
12 13 3200 4800 32 28 10 1.3 0.6 0.6 0.04 0.48
15 14 2800 4300 35 31 11 1.4 0.6 0.6 0.05 0.7
20 40 2200 3300 487 40 14 2.4 0.8 0.8 0.12 1.4
25 56 1900 2900 52 45.9 15 2.4 0.8 0.8 0.14 2.4
30 90 1600 2400 62 55 16 2.4 0.8 1 0.22 7.8
35 143 1300 2000 72 64 17 2.5 0.8 1 0.31 9
40 185 1200 1800 80 72 18 2.5 0.8 1 0.39 10
45 218 1000 1600 85 77 19 2.5 1.2 1 0.44 11
50 230 950 1500 90 82 20 2.5 1.2 1 0.49 13
55 308 800 1300 100 90 21 2.5 1.2 1 0.66 14
60 508 700 1100 110 100 22 2.5 1.2 1.5 0.81 26
80 1063 600 900 140 128 26 2.5 1.2 1.5 1.41 58

Introduction of AS/NSS/TSS roller type one way clutch bearings:(drawn cup needle roller clutch)
Type NSS/TSS is a roller type freewheel non bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.
