B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch
B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch
B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch
B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch
B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch
B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
B206
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Application :
machinery
Precision Rating :
P6
Type :
Roller Type
Sample :
Accept
Material :
Gcr15
HS Code :
84836000
Description

High precision Chrome Steel One way clutches B206 Backstop Cam Clutch(drawn cup needle roller clutch)

Decription of products:(drawn cup needle roller clutch)

One-way clutch is composed of outer seat ring, inner seat ring, retainer, wedge block, etc.When the inner seat ring is fixed, the outer seat ring rotates the wedge clockwise without locking, and the outer seat ring can rotate freely.When the outer seat turns counterclockwise, the wedge lock, the outer seat cannot rotate.

The purpose of the cage is to make the wedge always tilt slightly in the direction of the locking outer ring to enhance the locking function of the wedge.

Item B200 Series
Material GCr15
Bore dia. 16.51-79.356 mm
Outer dia. 40-125 mm
Width 25-42 mm
Torque capacity 39.2-1390 N.m
Weight 0.23-2.4kg
Package Carton box, wooden box or as your requirements

Drawing:(drawn cup needle roller clutch)

B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch

Catalogue:(drawn cup needle roller clutch)

Model Torque Capacity
(N.m)		 Drag Torque
(N.m)		 Max .Overrunning (r/min) Max.Idexing (cycle/min) A(+0 to -0.6)

B
Keyway		 With JIS Bearing No. Shaft Dia. C(+0 to -0.025) Weight
(kg)
Shaft Outer Race
B203 39.2 0.10 2400 500 150 25.0 40(-0.014-0.039) 4X2.5 6203 16.510 0.23
B204 58.8 0.10 2400 500 150 25.0 47(-0.014-0.039) 5X3 6204 18.796 0.34
B205 98 0.20 1800 400 150 25.0 52(0.017-0.042) 5X3 6205 23.622 0.45
B206 235 0.20 1800 350 150 28.0 62(-0.017-0.042) 7X4 6206 32.766 0.68
B207 372 0.20 1800 300 150 28.0 72(-0.017-0.042) 7X4 6207 42.088 0.80
B208 549 0.20 1800 200 150 32.0 80(-0.017-0.042) 10X4.5 6208 46.761 0.91
B209 549 0.20 1800 200 150 32.0 85(-0.020-0.045) 10X4.5 6209 46.761 0.95
B210 784 0.29 1200 200 150 32.0 90(-0.020-0.045) 10X4.5 6210 56.109 1.00
B211 784 0.29 1200 200 150 32.0 100(-0.020-0.050) 10X4.5 6211 56.109 1.40
B212 1230 0.29 1200 180 150 42.0 110(-0.020-0.050) 10X4.5 6212 70.029 1.80
B213 1230 0.29 1200 180 150 42.0 120(-0.020-0.050) 10X4.5 6213 70.029 2.30
B214 1390 0.39 180 180 150 42.0 125(-0.024-0.060) 12X4.5 6214 79.356 2.4

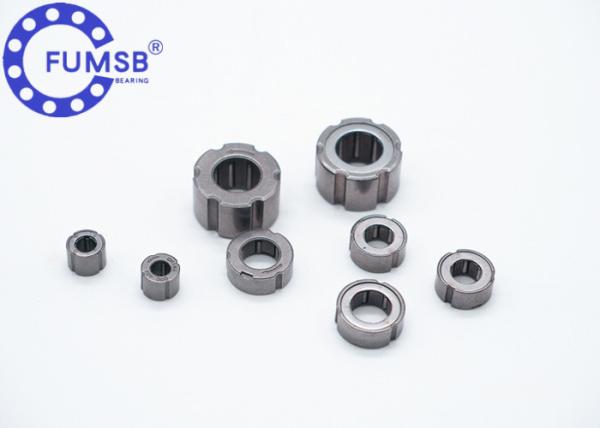

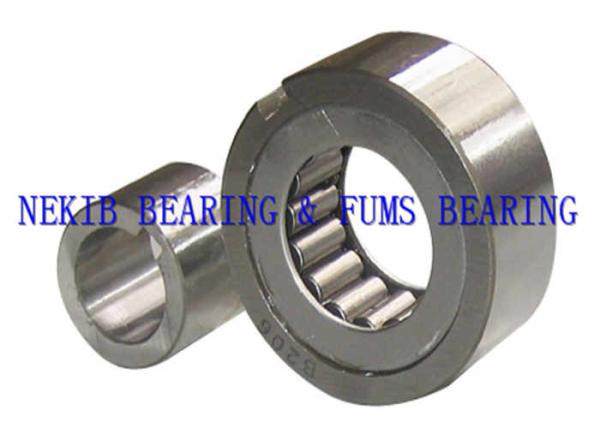

Picture:(drawn cup needle roller clutch)

B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch
