Non Aligning Steel Needle Roller Bearing High Durability Under Heavy Loads
Non Aligning Steel Needle Roller Bearing High Durability Under Heavy Loads
Non Aligning Steel Needle Roller Bearing High Durability Under Heavy Loads
Non Aligning Steel Needle Roller Bearing High Durability Under Heavy Loads
Non Aligning Steel Needle Roller Bearing High Durability Under Heavy Loads
Non Aligning Steel Needle Roller Bearing High Durability Under Heavy Loads
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
NAO 8*19*10
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Precision Ratingow :
P0,P3, P4,P5,P6
Seals Type :
Open
Level :
V1, V2, V3, V4
Application :
Engineering Machinery
Material :
Bearing Steel
Spherical :
Non-Aligning Bearings
Description

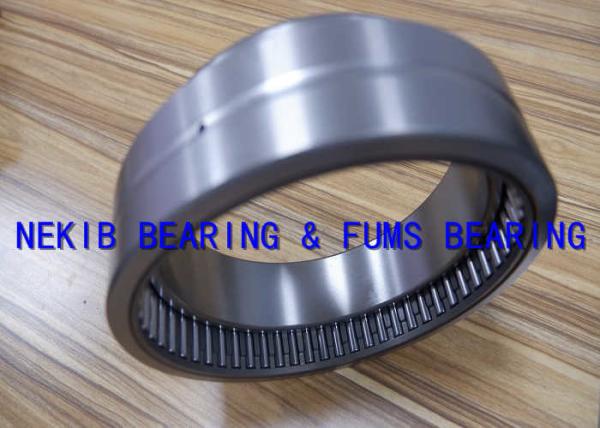

Steel needle roller bearing without shoulder with inner ring/ NAO series for engine parts/High quality

Description of NA, NKI type:

Outer ring double rib (or double lock ring) needle roller bearings with cage NA, NKI type, can be installed in the inner ring and outer ring (with lock ring, full set of needle rollers and cages), high authority rotation speed Two columns.
If the shaft cannot be used as a raceway, that is, if it is impossible or uneconomical to grind the shaft for grinding, this type of needle roller bearing with inner ring can be used.

Features of RNA49/RNA48/NA59/RNA59/RNA69 ect.

Needle roller bearings are a bearing that is classified as either radial or thrust depending on the direction of

the load being supported. Needle roller bearings include bearings whose rollers slightly exceed the size range

of needle rollers as stipulated by ISO. Needle roller bearings includes drawn cup and solid radial bearings, as

well as application-specific cam followers, and roller followers.

NK RNA49 RNA48 Outer ring of double-wall single row without inner ring
NA59 RNA59 Outer ring of double-wall single row
NKI NKIS NA49 NA48 Double-wall there is a separate inner ring outer ring
RNA69 Dual-access side of double row outer ring without inner ring
NA59 Outer pairs of dual-listed Inner Edge
RNA49..RS RNA49..2RS Single seals or double seals
RN69..RS NA69..2RS Single seals or double seal double row
NAV Double-wall there is a separate inner ring outer ring

Drawings of needle roller beaing with inner ring:(BRI Series)

Non Aligning Steel Needle Roller Bearing High Durability Under Heavy Loads

Catalogue of BRI series(Inch):

shaft diameter Model Boundary dimensions Basic load rating Limiting Speed
mm mm Dynamic Static
C Co
mm FW D C dh R(2) kgf kgf rpm
Max Max
9.525 BRI 61812 15.875 28.575 19.05 24.5 0.6 1930 2010 25000
12.7 BRI 82012 19.05 31.75 19.05 26.5 1 2220 2490 20000
BRI 82016 19.05 31.75 25.4 26.5 1 2810 3380 20000
15.875 BRI 102212 22.225 34.925 19.05 29.7 1 2340 2770 18000
BRI 102216 22.225 34.925 25.4 29.7 1 2970 3760 18000
19.05 BRI 122412 25.4 38.1 19.05 32.9 1 2580 3250 16000
BRI 122416 25.4 38.1 25.4 32.9 1 3280 4420 16000
22.225 BRI 142616 28.575 41.275 25.4 36 1 3560 5090 14000
BRI 142620 28.575 41.275 31.75 36 1 4410 6690 14000
25.4 BRI 142620 31.75 44.45 25.4 39.2 1 3670 5450 13000
BRI 162816 31.75 44.45 31.75 39.2 1 4550 7180 13000
28.575 BRI 162820 34.925 47.625 25.4 42.4 1 3930 6120 11000
BRI 183020 34.925 47.625 31.75 42.4 1 4870 8060 11000
31.75 BRI 203316 38.1 52.388 25.4 45.1 1.5 4460 6820 11000
BRI 203320 38.1 52.388 31.75 45.1 1.5 5530 8980 11000
34.925 BRI 223516 41.275 55.562 25.4 48.3 1.5 4570 7230 9500
BRI 223520 41.275 55.562 31.75 48.3 1.5 5670 9530 9500
38.1 BRI 243716 44.45 58.738 25.4 51.5 15 4850 7980 9000
BRI 243720 44.45 58.738 31.75 51.5 1.5 6010 10500 9000
BRI 243820 44.45 60.325 31.75 53.1 1.5 6010 10500 9000
BRI 243920 47.625 31.912 31.75 54.7 1.5 6130 11000 8500
50.8 BRI 264116 50.8 65.088 25.4 57.8 1.5 5200 9110 8000
BRI 264120 50.8 65.088 31.75 57.8 1.5 6440 12000 8000
57.15 BRI 365624 69.85 88.9 38.1 80.7 2 10100 19300 5500
BRI 365628 69.85 88.9 44.45 80.7 2 11700 23300 5500
63.5 BRI 406024 76.2 95.25 38.1 87 2 10700 21600 5500
BRI 406028 76.2 95.25 44.45 87 2 12400 26100 5500
69.85 BRI 446828 82.55 107.95 44.45 99.7 2 14400 26400 5000
BRI 446832 82.55 107.95 50.8 99.7 2 15700 29500 5000
76.2 BRI 487232 88.9 114.3 50.8 106.1 2 16500 32100 4500
82.55 BRI 527632 95.25 120.65 50.8 111.4 2.5 17200 34900 4000
88.9 BRI 568032 101.6 127 50.8 111.4 2.5 18000 37500 4000
