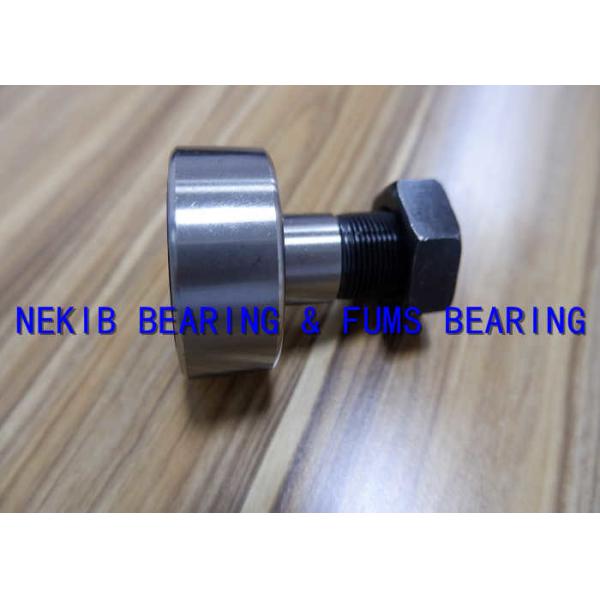

KP16PP/ Curve Roller Bearings Without Inner Ring Model KR KP PP Types
KP16PP/ Curve Roller Bearings Without Inner Ring Model KR KP PP Types
KP16PP/ Curve Roller Bearings Without Inner Ring Model KR KP PP Types
KP16PP/ Curve Roller Bearings Without Inner Ring Model KR KP PP Types
KP16PP/ Curve Roller Bearings Without Inner Ring Model KR KP PP Types
KP16PP/ Curve Roller Bearings Without Inner Ring Model KR KP PP Types
Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
KP16PP
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpce,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Name :
Curve Roller Bearings
Current Code :
STO6
Seals Type :
OPEN
Material :
Chrome Steel
G :
M6
eccentric sleeve :
KRE1699
D :
16mm
RA :
0.15mm
Description

KP16PP/ Curve roller bearings without Inner Ring Model/ KR/ KP…PP types

The supporting roller has the thick-wall outer ring, by which the roller can be rolled directly at the rollway and withstand the large load. The supporting rollers made by our company include STO RSTO, NA22 …2RS,RN22…2RS, NATR NART…PP NATV NATV…PPNUTR NAST. Supporting Roller.

The curve roller is composed of a bolt, thrust collar outer ring, needle and cage assembly or full complement rolling body. It has the thick-wall outer ring with camber outside face, withstanding the high radial force.The curve rollers made by our company include KR, KRE, KRV, KRVE, NUKR and NUKRE. Model KR…PP,KRE…PP KRV…PP, KRVE…PP NUKR…PP cure roller.

Installation dimensions mm Bearing type
Arc roller rolls needle Cylindrical roller rolls needle Needle roller
D d C B G B1 KR KRV KR…X KRV…X NUKR NUKR…X
30 12 14 40 12×1.5 15.2 KR30 KRV30 KR30X KRV30X NUKR30 NUKR30X
12 14 90 12×1.5 15.2 KR30L KRV30L KR30XL KRV30XL
12 14 60 12×1.5 15.2 KRV30XL1
12 14 55 12×1.5 15.2 KRV30XL2
32 12 21.2 47 12×1.5 22 KRV32V
12 21.2 47 12×1.5 22 KRV32XL
12 14 40 12×1.5 15.2 KR32 KRV32 KR32X KRV32X NUKR32 NUKR32X
14 17 48 14×1.5 18 KR3214 KRV3214 KR3214X KRV3214X
35 16 18 52 16×1.5 19.5 KR35 KRV35 KR35X KRV35X NUKR35 NUKR35X
16 18 55 16×1.5 19.6 KRV35XL
37 16 20 56 16×1.5 21 KR3716 KRV3716 KR3716X KRV3716X
38 16 22 62 16×1.5 23 KRV3816X
40 18 20 58 18×1.5 21.5 KR40 KRV40 KR40X KRV40X NUKR40 NUKR40X
42 20 22 65 18×1.5 24 KR4220 KRV4220 KR4220X KRV4220X
47 20 24 66 20×1.5 25.5 KR47 KRV47 KR47X KRV47X NUKR47 NUKR47X
22 25 75 20×1.5 27 KR4722 KRV4722 KR4722X KRV4722X
24 25 75 20×1.5 27 KR4724 KRV4724 KR4724X KRV4724X
50 22 24 71 24×1.5 25.5 KR50 KRV50 KR50X KRV50X NUKR50 NUKR50X
52 20 24 66 20×1.5 25.5 KR52 KRV52 KR52X KRV52X NUKR52 NUKR52X
58 21 28 85 20×1.5 28.8 KR5821 KRV5821 KR5821X KRV5821X
30 32 93 30×1.5 34 KR5830 KRV5830 KR5830X KRV5830X
30 32 130 30×1.5 34 KR5830L KRV5830L KR5830XL KRV5830XL
62 24 29 80 24×1.5 30.5 KR62 KRV62 KR62X KRV62X NUKR62 NUKR62X
72 24 29 80 24×1.5 30.5 KR72 KRV72 KR72X KRV72X NUKR72 NUKR72X
36 38 116 36×3 40 KR7236 KRV7236 KR7236X KRV7236X
76 38 43.66 108.74 36×2 45.24 KRV7638X
80 30 35 100 30×1.5 37 KR80 KRV80 KR80X KRV80X NUKR80 NUKR80X
30 35 120 30×1.5 44 KR80L KRV80L KR80XL KRV80XL
35 50.4 122 30×1.5 52 KR8035 KRV8035 KR8035X KRV8035X
30 27 100 30×1.5 29 NUKR80XL
30 35 130 30×2 37 KRV80EE
85 30 35 100 30×1.5 37 KR85 KRV85 KR85X KRV85X NUKR85 NUKR85X
42 46 135 42×3 48 KR8542 KRV8542 KR8542X KRV8542X
42 46 125 42×3 48 KR8542L KRV8542L KR8542XL KRV8542XL
86 24 29 80 24×1.5 30.6 NUKR86K NUKR86KX
89 36 50 128 36×3 52 KR8936 KRV8936 KR8936X KRV8936X
90 30 35 100 30×1.5 37 KR90 KRV90 KR90X KRV90X NUKR90 NUKR90X
30 35 232 30×1.5 37 KR90L KRV90L KR90XL KRV90XL
40 35 150 30×1.5 37 KRV9040X
30 35 136 30×1.5 37 KRV90E KRV90EX
36 38 128 36×3 39 KR9036 KRV9036 KR9036X KRV9036X
45 50 125 45×3 52 KR9045 KRV9045 KR9045X KRV9045X
50 35 130 36×3 50 KR9050 KRV9050 KR9050X KRV9050X
100 36 43 120 36×1.5 46 KR100 KRV100 KR100X KRV100X NUKR100 NUKR100X
36 45 120 36×3 49 KR10036 KRV10036 KR10036X KRV10036X
48 54 156 48×3 56 KR10048 KRV10048 KR10048X KRV10048X
110 56 61 178 56×4 63 KR11056 KRV11056 KR11056X KRV11056X
30 35 100 30×1.5 37 KRV11030X
120 42 50 140 42×1.5 53 NUKR120 NUKR120X
42 40 170 36×1.5 46 NUKR120XL
125 60 69 180 57×2.2 75.5 KRV12560X
64 69 200 64×4 71 KR12564 KRV12564 KR12564X KRV12564X
140 48 57 160 48×1.5 60 NUKR140 NUKR140X
72 76 222 72×3 80 KR14072 KRV14072 KR14072X KRV14072X
149 60 69 102 ∮64 71 KR14960A KRV14960A KR14960XA KRV1496X0A Short end polished rod without thread
70 69 102 ∮60 71 JS9804.5
150 52 60 170 52×1.5 63 NUKR150 NUKR150X
160 56 63 180 56×3 37 NUKR160 NUKR160X
80 83 246 80×4 89 KR16080 KRV16080 KR16080X KRV16080X
170 60 66 190 60×3 70 NUKR170 NUKR170X
180 64 72 200 64×3 76 NUKR180 NUKR180X
68 63 293 68×2 73 RK180 RK180X
190 80 99 262 80×4 102 KR19080 KRV19080 KR19080X KRV19080X
80 100 458 Coupling type no thread 110 KR19080T KRV19080T KR19080XT KRV19080XT
80 95 448 100 KR19080TA KRV19080TA KR19080XTA KRV19080XTA
80 100 465 110 KR19080TB KRV19080TB KR19080XTB KRV19080XTB
80 100 438 110 KRV19080XTC
80 100 475 110 KRV19080XTD
210 90 111 292 90×4 114 KR21090 KRV21090 KR21090X KRV21090X
240 100 128 328 100×4 131 KR240100 KRV240100 KR240100X KRV240100X

Model RNA22…2RS, NA22…2RS Supporting Roller

Double-seal Roller Needle Bearing without Inner Ring Model RN…2RS

Model RNA…2RS roller needle bearing has not inner ring and is equipped with double seal rings in both sides.it has a good dust-protection performance. Since the bearing has no inner ring, itis requested that the surface hardness and surface of shaft journal fitted with it be matched with bearing. The performance of this bearing is same as that of Model NA22…2RS.

If the surface of outer ring is cylinder face, the designation of bearing is RNA22…2RSX.

Double-seal Roller Needle Bearing with inner ring and without shoulder Model ”NA…2RS

Model NA…2RS roller needle bearing has not inner ring and shoulder and is equipped with double seal rings in both sides. it has a good dust-protection performance. Since the outer ring is roller type with thick wall,it has a better shock resistance.

If the surface of outer ring is cylinder face, the designation of bearing is NA22…2RSX.
