Specifications
Brand Name :
NEKIB OR FUMSB
Model Number :
F204782
Certification :
ISO9001,IATF16949
Place of Origin :
CHANGZHOU,CHINA
MOQ :
100
Price :
0.1-100$ one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300kpcs,30days
Delivery Time :
5-8 work days
Packaging Details :
Roll or single box
Inner Ring :
Full Coplement Needle Roller Bearing With Or Without Inner Ring
Name :
Full Complement Cylindrical Roller Bearings
Structure :
Cylindrical
HS Code :
8482500090
Precision Rating :
P0,P6,P5,P4
Stock :
Rich Stocks
Material :
Chrome steel
Specification :
Customed
Feature :
Single row
Type :
Full complement bearing
Description

High Precision Steel Radial Cylindrical Roller Bearings With Low Noise For Machinery

Products introduction:(Double row full loaded cylindrical roller bearing)

The utility model provides a double row full loaded cylindrical roller bearing, which includes an inner ring and an outer ring. The inner ring is spliced by the first ring and the second ring, and the first ring and the second ring form a raceway respectively with the outer ring. The raceway is filled with rollers, and one end of the first ring toward the second ring is evenly distributed with several clips, and the second ring corresponds to the clips The first ferrule is provided with a first through groove between adjacent ferrules, the second ferrule is provided with a second through groove between adjacent ferrules, the ferrule is communicated with the second through groove, the ferrule can be inserted axially along the second through groove and rotated circumferentially to the position where the ferrule is clamped, the first through groove and the second through groove The fastener is embedded. The utility model provides a double row full loaded cylindrical roller bearing with simple assembly, avoiding abrasion between two ferrules and longer service life.

Catalogue:

Bearing No. Weight(kg) d(mm) Dr(mm) B(mm)
F-227932 0.12 20 36 30
F-219593 0.144 25 42 30
F-204045 0.27 30 49 34
F-219590 0.28 35 55 36
F-123243 0.4 45 66 40
F-210408 0.46 50 72 40
HS-262 0.86 55 83 46
RNNX22AV 0.895 60 86 46
F-24*40.3*26 0.94 65 93 46
RNN3005X3V 1.12 70 100 54
F-217615 1.35 75 107 54
F-210304 1.8 80 116 60
RNN306X3V 1.85 85 121 60
F-32*46.6*28 2.6 90 130 67
F-208098 2.6 100 139 67
RNN3007X3V 3.95 110 156 80
F-385328 4.52 120 167 80
HS-263 6.7 130 183 95
RNNX10V 7.914 140 197 95
F-237005 8.215 150 206 100
F-229575.1 11.09 160 224 109
567079B 15.6 170 242 122

Drawing:

High Precision Steel Radial Cylindrical Roller Bearings With Low Noise For Machinery With High Speed

Feature:

外形尺寸(mm) 额 定 负 荷 极限 重量 轴承代号 Bearing code
Dimension (kN) 转速 Limiting speed (kg)
Rated load (r/min)* Weight
d D C B Rs(min) Cr Cor FUMS INA
95 145 66 67 0.6 303 570 900 3.95 NNF5019-2LSNVY SL045019PPX
100 150 66 67 0.6 308 570 850 4.05 NNF5020-2LSNVY SL045020PPX
110 170 79 80 0.6 380 695 750 6.45 NNF5022-2LSNVY SL045022PPX
120 180 79 80 0.6 402 750 700 6.9 NNF5024-2LSNVY SL045024PPX
130 200 94 95 0.6 572 1040 630 10.5 NNF5026-2LSNVY SL045026PPX
140 210 94 95 0.6 594 1120 600 11 NNF5028-2LSNVY SL045028PPX
150 225 99 100 0.6 693 1290 560 13.5 NNF5030-2LSNVY SL045030PPX
160 240 108 109 0.6 721 1400 500 16.5 NNF5032-2LSNVY SL045032PPX
170 260 121 122 0.6 935 1800 480 22.5 NNF5034-2LSNVY SL045034PPX
180 280 135 136 0.6 1080 2120 450 30 NNF5036-2LSNVY SL045036PPX
190 290 135 136 0.6 1100 2200 430 31.5 NNF5038-2LSNVY SL045038PPX
200 310 149 150 0.6 1340 2900 400 42 NNF5040-2LSNVY SL045040PPX
220 340 159 160 1 1510 3100 360 53.5 NNF5044-2LSNVY SL045044PPX
240 360 159 160 1 1570 3350 340 57.5 NNF5048-2LSNVY SL045048PPX

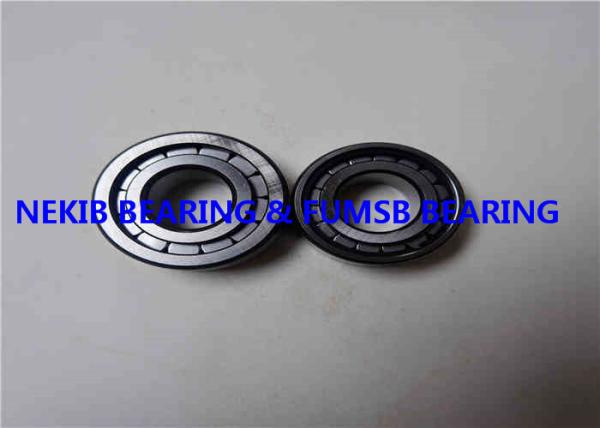

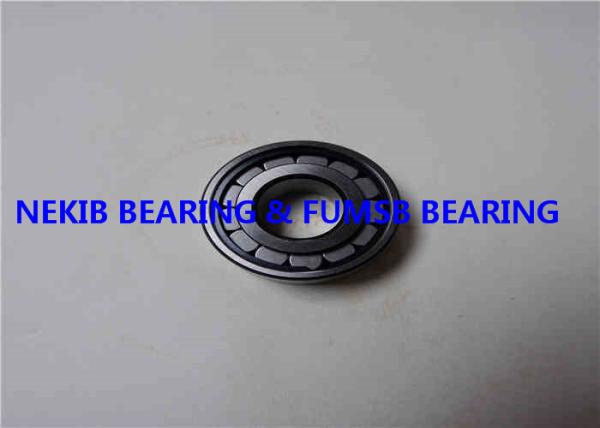

Product pictures:

High Precision Steel Radial Cylindrical Roller Bearings With Low Noise For Machinery With High Speed
