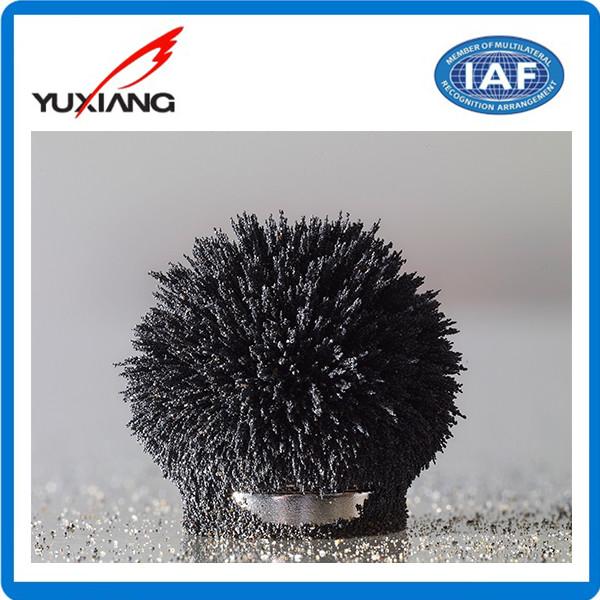

Sintered SmCo Magnetic Particle Powder Good Stability For Industrial Magnet
Sintered SmCo Magnetic Particle Powder Good Stability For Industrial Magnet
Sintered SmCo Magnetic Particle Powder Good Stability For Industrial Magnet
Sintered SmCo Magnetic Particle Powder Good Stability For Industrial Magnet
Specifications
Brand Name :
YuXiang
Model Number :
smco-YX6-30
Certification :
iOS9001
Place of Origin :
Fujian,Xiamen
MOQ :
Negotiated
Price :
Negotiated
Supply Ability :
800Ton/year
Delivery Time :
15~30 Days After Confirmed Order
Packaging Details :
Neutral Packing With Wooden Cases & Paper Carton
Shape :
Powder
Composite :
SmCo Powder
Tw max :
80-220 degree
Eco-friendly :
Yes
Storage :
This product should be sealed stored in cool and dry
Description

High Performance Sintered SmCo Powder For Industrial Magnet Manufacture

General Description

1, Samarium Cobalt holds its standard property in higher maximum temperatures than neodymium, although its maximum strengh is less.

2, The cost of SmCo material is the most expensive, so SmCo is recommended only when its performance is a high temperature environment is a concern.

The characteristics of Samarium Cobalt Magnet
  1. Very high magnetic properties with good stability
  2. High magnetic performance - up to about 32MGOe
  3. Superior resistance to high temperature, Curie temperature of majority is over 800°C
  4. Excellent corrosion resistance capability, no coating is needed for surface protection

Properties of SmCo Powder

Grade Residual Flux Density
Br		 Coercive Force
Hcb		 Intrinsic Coercive force
Hcj		 Max. energy product
(BH)max
mT kGs kA/m koe kA/m koe kJ/m3 MGoe
smco-YX6 500~600 5.0~6.0 ≥358 4.5~5.5 ≥960 ≥12.0 47~72 6~9
smco-YX10 600~700 6.0~7.0 ≥438 5.5~6.5 ≥1200 ≥15.0 64~88 8~11
smco-YX12 700~750 7.0~7.5 ≥520 6.5~7.3 ≥1591 ≥20.0 96~120 12~15
smco5-YX16 750~880 7.5~8.8 597±40 7.5±0.5 ≥1591 ≥20.0 127±16 16±2
smco-YX16A 750~880 7.5~8.8 597±40 7.5±0.5 ≥1989 ≥25.0 127±16 16±2
smco-YX16B 750~880 7.5~8.8 597±40 7.5±0.5 ≥2386 ≥30.0 127±16 16±2
sm2co17-YX18 800~930 8.0~9.3 637±40 8.0±0.5 ≥1194 ≥15.0 143±16 18±2
smco-YX18A 800~930 8.0~9.3 637±40 8.0±0.5 ≥1591 ≥20.0 143±16 18±2
smco-YX18T 800~930 8.0~9.3 637±40 8.0±0.5 ≥1591 ≥20.0 143±16 18±2
smco-YX18B 800~930 8.0~9.3 637±40 8.0±0.5 ≥1989 ≥25.0> 143±16 18±2
sm2co17-YX20 900~980 9.0~9.8 637±40 8.0±0.5 ≥1432 ≥18.0 159±16 20±2
smco-YX20 900~950 9.0~9.5 ≥670 8.5~9.2 ≥1591 ≥20.0 159±16 20±2
smco-YX20A 900~980 9.0~9.8 637±40 8.0±0.5 ≥1989 ≥25.0 159±16 20±2
smco-YX22 900~1030 9.0~10.3 653±40 8.2±0.5 ≥1432 ≥18.0 175±16 22±2
smco-YX22A 900~1030 9.0~10.3 653±40 8.2±0.5 ≥1989 ≥25.0 175±16 22±2
smco-YX24 950~1080 9.5~10.8 676±40 8.2±0.5 ≥1432 ≥18.0 191±16 24±2
smco-YX24A 1000~1100 10.0~11.0 676±40 8.2±0.5 ≥1989 ≥25.0 191±16 24±2
smco-YX26 1000~1130 10.0~11.3 357~516 4.5~6.5 413~556 5.0~7.0 207±16 26±2
YX26A 1000~1130 10.0~11.3 716±40 9.0±0.5 ≥796 ≥10.0 207±16 26±2
YX26B 1000~1130 10.0~11.3 716±40 9.0±0.5 ≥1194 ≥15.0 207±16 26±2
YX26C 1000~1130 10.0~11.3 716±40 9.0±0.5 ≥1591 ≥20.0 207±16 26±2
YX26D 1000~1080 10.0~10.8 ≥732 9.0~10.5 ≥2300 ≥30.0 207±16 26±2
smco-YX28 1060~1180 10.6~11.8 357~516 4.5~6.5 413~556 5.0~7.0 223±16 28±2
smco-YX28A 1060~1180 10.6~11.8 763±40 9.6±0.5 ≥796 ≥10.0 223±16 28±2
smco-YX28B 1050~1150 10.5~11.5 ≥750 9.4~9.8 ≥960 ≥12.0 223±16 28±2
smco-YX28C 1060~1180 10.6~11.8 763±40 9.6±0.5 ≥1194 ≥15.0 223±16 28±2
smco-YX30 1100~1200 11.0~12.0 438~597 5.5~6.5 454~597 5.7~7.5 238±16 30±2
smco-YX30A 1100~1200 11.0~12.0 ≥560 7.0~8.5 ≥716 ≥12.0 238±16 30±2

Characteristics Chart of SmCo permanent magnet

Sintered SmCo Magnetic Particle Powder Good Stability For Industrial Magnet
