Description
Input Voltage | DC+12V |
Standby | Display shows:00:00, rely: Normal Open (NO) |
Accumulated time | Yes, add time if receive signals again when time is running |
Max current load | 15A |
How it works | |
Mode 1 | Time runs down after receive signals-> Display shows remaining time and supply power to device-> it cuts off power after time runs out |
Mode 2 (Connect a button) | Display shows remaining time after receive signals-> push button start-> time runs down and supply power to device-> it cuts off power after time runs out |
Pause (connect a button) | Push button pause: it cuts off power when pause, display shows remaining time. Re-supply power after push button pause again |
Operating Mode | Please reference to page 2 |
Connection and Position
1: Display
2:Output: Switch Type- Control “N” or “-”.
3: DC Jack-5.5mm*2.1mm
4: YELLOW: DC12V, WHITE: input signal, BLACK: GND
5: Push button for coin mode 01:02
6: Pausing
7-10: Button S2, S1, S3, and S4
NOTE: Free to connect DC12V to either No. 3 or No.4.

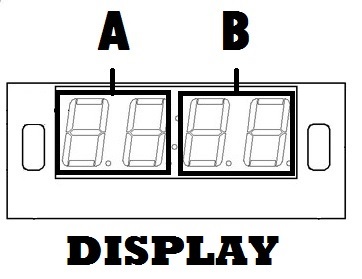

Max Time:99:59 Display: 99:59
A: 2 digit: either HOUR or MINUTE
B: 2 digits: either MINUTE or SECOND
Please following page to adjust Time type.
Setting
Please follow CODE ON DISPLAY and use button "S1" and "S2" to set up number
Please follow table to set up operating function:
Function | Code on Display | Description | |
A | B | ||
Running Time | 01 | 01 | Time runs down without pressing button |
02 | Time runs down by pressing button | ||
Time Type | 02 | 03 | MINUTE: SECOND |
04 | HOUR: MINUTE | ||
Memory | 03 | 05 | Yes: Remaining time keep running after power off and on |
06 | No: Standby power off and on | ||
Back to standby | 04 | 1-30 | user has no action after push buttons or receive signals in setting time |
Default: 01-03: Bold and base line. 04: not use the function. |

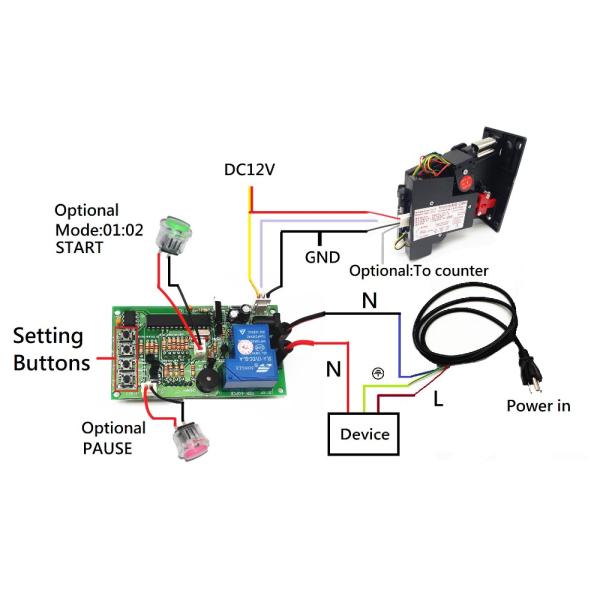

Connection Example
