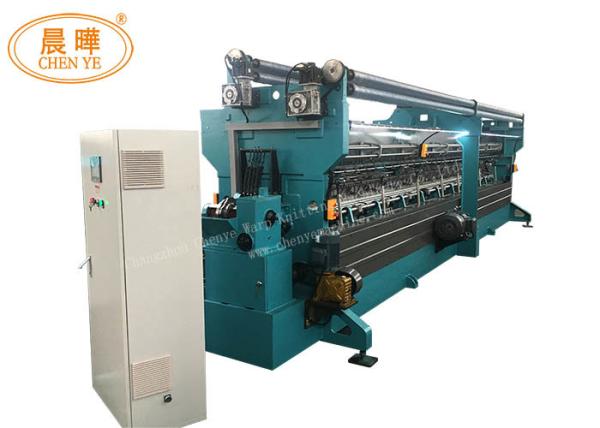

SRCA High Speed Single Needle Bar Raschel Machine For Safety Net Machine

SPECIFICATION

  Needle Type

  Latch Needle

  Gauge

  E6, E7, E8, E9, E12, E14

  Bar Number

  2~6

  Nominal Width

  135" 150" 180" 220" 260"340”

  Take-up Manner

  2 rollers with friction drive,center shaft drive;    2 rollers with friction drive,separately-standing,    center shaft drive, separately-standing

  Main type

  Machine size

  speed(rpm)

  Main motor power

  Inching motor power

  SRCA-135

  4300*1700*2300

  200-530

  3kw

  0.37kw

  SRCA-150

  4900*1700*2300

  200-530

  3kw

  0.37kw

  SRCA-180

  6100*1700*2400

  200-530

  5.5kw

  0.75kw

  SRCA-220

  7300*1700*2400

  200-500

  5.5kw

  1.5kw

  SRCA-260

  8200*1700*2400

  200-480

  7.5kw

  1.5kw

  SRCA-340

  8100*1700*2400

  200-450

  11kw

  1.5kw

  Usage:This machine is used to produce knotless fishing net,protecting net ,              purse net,garment net and shading net.    Features:The machine is equipped with open cam gearing and                   3-rollers positive yarn left-off system.

PRODUCTION PROCESS

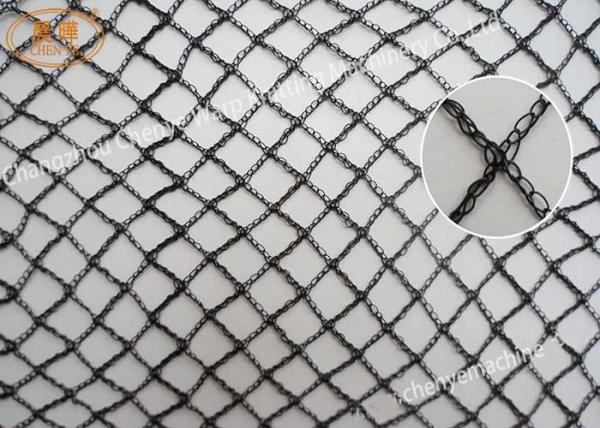

WHAT KIND OF NETS CAN BE MADE

  Safety net: engineering and construction nets, protecting net , net of fire resistance, etc

PACKAGING & SHIPPING

  Packaging Details:The normal package is wooden box(Size: L*W*H).  If export to european countries,the wooden box will be fumigated.  If container is too tigher,we will use pe film for packing or pack   it according to customers special request.  Port :shanghai

•   The warranty period of all products sold by our company is one year,   with lifelong technical service support.

•   User's workers can get free technical training in our company to   ensure correct usage and maintenance of equipment.

FAQ

  1.Q:Are you a factory or trading company?    A:We are a factory.    2.Q:How about the after-sale service?    A:We offer after-sale overseas service.      Engineers available to service machinery overseas.    B:Any problem about our products,pls feel free to call our after-sale department,      You'll get our prompt attention and solvement.    3.Q:What payment terms you accept?    A:We accept L/C,T/T,Western Union or other payments.    4.Q:Where is your factory located?How can I visit there?    A:Our factory is located in Changzhou City,jiangsu Province,China.    All our clients,from home or abroad,are warmly welcome to visit us!    5.Q:How does your factory do regarding quality control?    A:Quality is priority.We always attach great importance to quality      controlling from the very beginning to the very end.     We passed the ISO9001:2008 certification.
