20mm Polyethylene Covered Fishery Ropes For Pelagic Fishing / Marine Farming
20mm Polyethylene Covered Fishery Ropes For Pelagic Fishing / Marine Farming
Specifications
Brand Name :
YONGDA
Model Number :
High Modulus Polyethylene Covered Fishery Ropes
Certification :
Class certificates (RINA, BV, CCS, KR, NK, ABS, DNV, LR, IRS, RS, EC, TUV and Mill Certificate)
Place of Origin :
Jiangsu, P.R. China
MOQ :
≥1
Price :
As per quotation
Payment Terms :
T/T, L/C, etc.
Supply Ability :
As ordered
Delivery Time :
5-8 work days
Packaging Details :
Packed
Standard :
GB/T 18674-2018
Material :
High modulus polyethylene(UHMWPE)
Size :
Dia: 20-72mm
Construction :
Covered Rope
Type :
Knit
Test :
Destructive and Tension Test
Certificates :
RINA, BV, CCS, KR, NK, ABS, DNV, LR, RS, IRS, EC, TUV and Mill Certificate
Colour :
White or as your needs
Application :
Krill trawl net, Marine ranch super - large wind and wave cage , mooring ropes, fishing nets and various fabrics
Advantages :
High strength, high modulus, wear resistance, strong acid resistance, alkali resistance, chemical corrosion resistance, light resistance
Disadvantages :
surface hardness and low thermal deformation temperature,poor bending strength and creep performance
Description

20mm Polyethylene Covered Fishery Ropes For Pelagic Fishing / Marine Farming

Description:

This 20mm polyethylene-covered fishery rope is specifically designed for pelagic fishing and marine farming, made from high-quality polyethylene material. It features high tensile strength, capable of withstanding heavy loads and high pressures in harsh environments, ensuring reliability in pelagic fishing and marine farming. The polyethylene rope offers excellent abrasion resistance and corrosion resistance, able to withstand erosion from seawater, marine organisms, and other harsh conditions, thereby extending its service life. The fishery rope is treated with UV resistance, maintaining its strength and integrity under prolonged sunlight exposure and resisting aging, ensuring stable performance over long-term use. The polyethylene covering design provides good structural stability and durability, ensuring safety and reliability in various operational environments. It is suitable for pelagic fishing, trawling operations, and various marine farming projects. It can be used for making nets, suspending sinkers, connecting buoys, constructing mooring systems, and mooring fishing boats.

Main Technical Specifications:

1.Standard: GB/T 18674-2018

2.Material: High modulus polyethylene(UHMWPE)

3.Diameter: 20mm to 72mm

4.Construction: Covered rope

5.Type: Knit

6.Test: Destructive and Tension test

7.Classification Certificates: RINA ,BV ,CCS ,KR ,NK ,ABS ,DNV ,LR and Mill Certificate

8.Color: White or as your needs

9.Application: Krill trawl net, Marine ranch super - large wind and wave cage , mooring ropes, fishing nets and various fabrics

10.Advantages: High strength, high modulus, wear resistance, strong acid resistance, alkali resistance, chemical corrosion resistance, light resistance

11.Disadvantages: surface hardness and low thermal deformation temperature,poor bending strength and creep performance

Product Feature:

  • High tensile strength, capable of withstanding heavy loads and high pressures in harsh environments.
  • Excellent abrasion resistance, corrosion resistance, and UV resistance.
  • Polyethylene covering design provides good structural stability, extending service life.
  • Versatile applications, suitable for securing fishing gear, towing nets, setting fishing gear, and mooring boats.

Main Technical Parameters:

Linear density and minimum breaking force of GBT 18674-2018 high modulus polyethylene Covered Fishery Ropes

Reference NO.
mm		 Linear density Minimum breaking strength kN
Nominal
ktex		 Tolerance
%		 Superior Product Top Qualified Product Qualified Product
20 240 ±5 271 244 203
22 290 341 307 255
24 340 402 362 301
26 400 471 424 353
28 460 549 494 412
30 530 637 573 478
32 600 736 662 552
34 680 824 742 616
36 770 912 821 684
38 850 1010 909 758
40 940 1140 1030 855
44 1150 1380 1240 1040
48 1360 1610 1450 1210
52 1600 1920 1730 1440
56 1850 2190 1970 1640
60 2120 2520 2270 1890
64 2400 2880 2590 2160
68 2720 3260 2930 2450
72 3070 3630 3270 2720

1.The reference number corresponds to the approximate diameter, in millimetres.

2.The linear density, in kilotex, corresponds to the net mass per length of the rope, expressed in grams per metre or in kilograms per kilometre.

3. The breaking forces relate to new, dry ropes.

4.When the rope fracture position including splice eye,the minimum breaking strength should be reduced 10%.

5. A force determined by the test methods specified in GB/T 8834 is not necessarily an accurate indication of the force at which that rope might break in other circumstances and situations. The type and quality of terminations, the rate of force application, prior conditioning and previous force applications to the rope can significantly influence the breaking force. A rope bent around a post, capstan, pulley or sheave may break at a significantly lower force. A knot or other distortion in a rope may significantly reduce the breaking force.

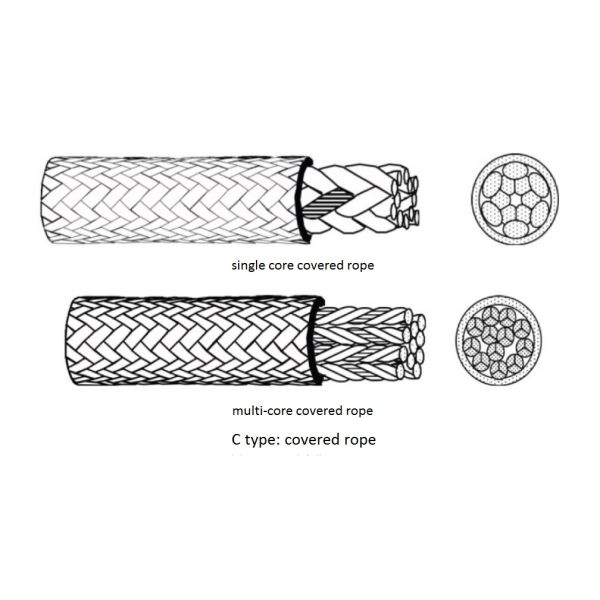

Drawing of GBT 18674-2018 High Modulus Polyethylene Covered Fishery Ropes:

20mm Polyethylene Covered Fishery Ropes For Pelagic Fishing / Marine Farming

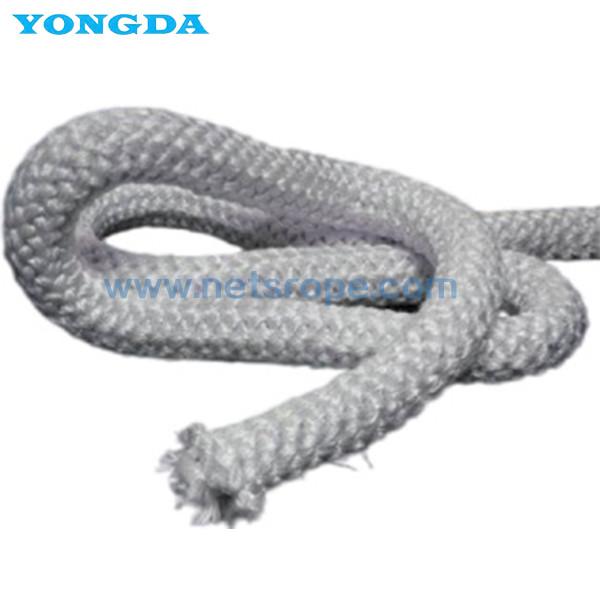

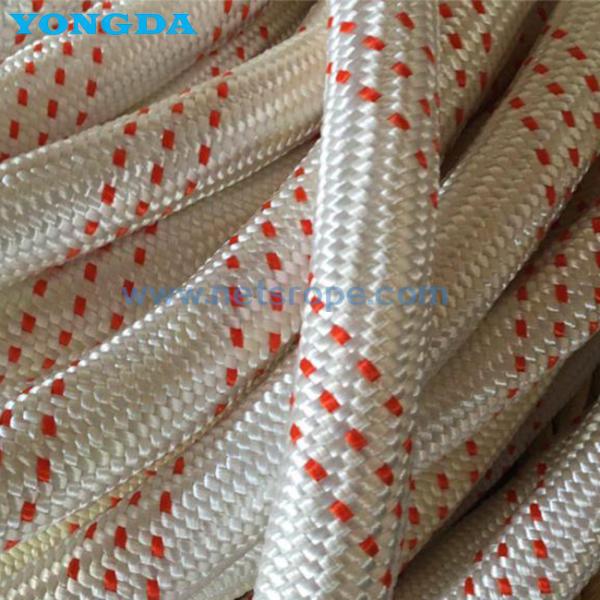

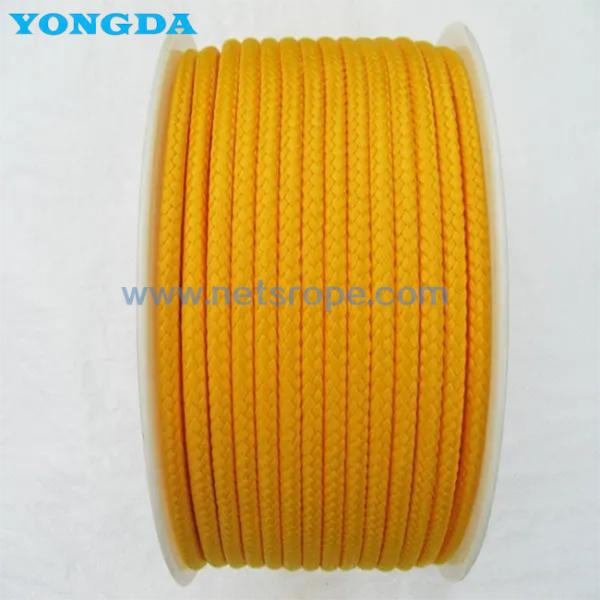

Product Photo of GBT 18674-2018 High Modulus Polyethylene Covered Fishery Ropes:

20mm Polyethylene Covered Fishery Ropes For Pelagic Fishing / Marine Farming20mm Polyethylene Covered Fishery Ropes For Pelagic Fishing / Marine Farming

FAQ:

Q0: Are you a factory or trading company?

A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.

Q1: What is your terms of packing?

A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.

Q2: What is your terms of payment?

A2: T/T & LC.

Q3: What is your terms of delivery?

A3: EXW, FOB, CFR, CIF, DDU.

Q4: How about your delivery time?

A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.

Q5: Can you produce according to the samples?

A5: Yes, we can produce as your samples or drawings.

Q6: What is your sample policy?

A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.

Q7: Do you test all your goods before delivery?

A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
