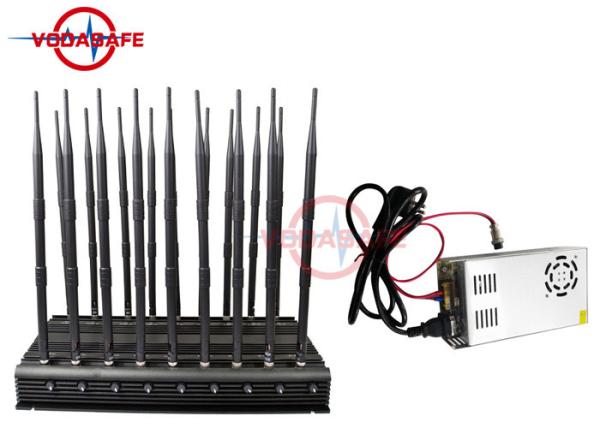

Powerful Mobile Phone Signal Jammer/5Fans Good Cooling System Phone Jammer
Description:
This X18 mobile phone signal shielding device integrates 18 frequency segment modules, which is the most integrated frequency segment in the fixed shielding device so far. It is a multi-band and output power and long-term use and many other contradictions. A balance point, each channel's output power is 2.5W, the total output power is up to 47W, and the shielding distance is up to 60 meters. This shielded heat-dissipating function is also a heat-dissipating case with a built-in fan. It supports long-term uninterrupted work. Each channel can be controlled separately, and the size of the shield can be controlled by adjusting the output power.
Features:
Applicable Place:
It can be applied in a meeting room, conference room, museum, gallery, theater, concert hall, church, temple, restaurant,classroom, training center, factory, bank,train, car bus etc.
Specification:
Total Output power | 47W |
Cover Radius | 10-60m(under Signal level ≤-85dBm)@according to the signal density mobile network |
Jamming Type | Sweep Jamming |
Antenna Type | 3dBi external omni-directional |

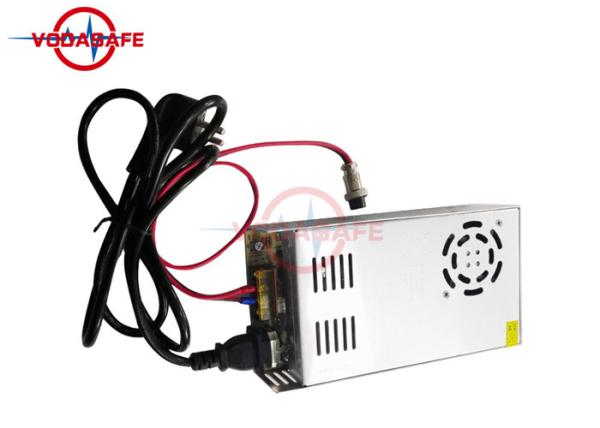

Power Supply | AC adapter (50 to 60Hz/100 to 240V AC-DC12V) with car Charger |
Electric Filed (SAR) | Compatible with ICNIRP Standards (Human safe) |
Operating Temp | -20 to +50℃ |
Storage Temp | -40 to +60℃ |
Humidity | 5%-80% |
Cooling System | High efficiency aluminum alloy radiator, Build-in 5 cooling fan |
Working Time | Not-stop Working |
Dimension(LXWXH) | 460 x 238x 60mm not include antennas |
Inner box dimension | 550x440x150mm |
Weight | 8kg |
VodasafeX18B :Jamming for all Cellphone 4G/3G/2G/Wi-Fi2.4G/GPSL1-L5/Walkie-Talkie135-500MHz/Lojack/RC433MHz/315MHz
1.CDMA850MHz: 850-894MHz; 35dbm/3W
2.GSM900MHz:925-960MHz; 35dbm/3W
3.DCS1800MHz:1805-1880MHz; 33dbm/3W
4.PCS1900MHz:1900-1990MHz; 33dbm/3W
5.3G2100MHz:2110-2170MHz; 33dbm/3W
6.WIFI 2.4G: 2400-2500MHz; 30dbm/1W
7.4G LTE:700-805 or 790-826MHz; 35dbm/3W
8.4G1 LTE:2500-2690MHz; 30dbm/1W
9.4G2 1700:1710-1780MHz; 33dbm/3W
10.4GHz 2300:2300-2400MHz; 30dbm/1W
11.Walkie-Talkie VHF1:135-200MHz; 35dbm/3W
12.Walkie-Talkie UHF2:200-300MHz;35dbm/3W
13.UHF3+RC315MHz:300-400MHz 35dbm/3W
14.UHF4+RC433MHz:400-500MHz 35dbm/3W
15.LOJACK:167-175MHz 35dbm/3W
16.GPSL1:1570-1580MHz 33dbm/3W
17.GPSL2+L5:1170-1280MHz 33dbm/3W
18.GPSL3+L4:1370-1390MHz 33dbm/3W
Total Output Power: 47W
