Assisted Laser Pointing Direction Indication Portable RF Wireless Signal Detector

General

This device applies with fuzzy scanning technology to detect peeping cameras, bug, cellular phones and other radio frequency devices. This device surely avoids being peeped or tapped to protect privacy or protect information being disclosed secretly.

This device has a new digital amplifier to heighten the indication for the digital signals of Bluetooth, WLAN, Wi-Fi, cellular phone and Digital Spread Spectrum wireless products, etc.

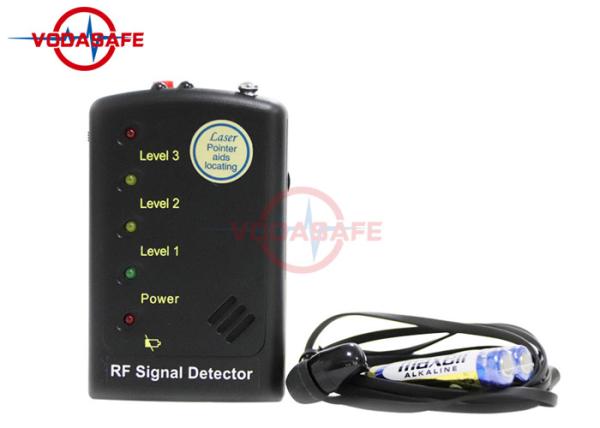

This device has 3 LEDs indicating the detected signal strength. When detecting cellular phone or peeping camera, the LED will light from Level 1 to Level 2 to Level 3, and the beeping sound will change from Slow to Rapid indicating the strength of detected signal.

Featured Function:

1. Assisted Laser Pointing Direction Indication

This model has panel antenna integrated inside the circuit board providing directionality, joint with laser pointer to aid the locating the signal source. When detects signal wave, the laser pointer will light up to aim the possible direction. Lower the sensitivity gradually, can approach and determine the signal location.

 2. WIRE CAMERA DETECTION

 <>1)2)3)4)5)If you are not going to use this device for a long time, remove the batteries to avoid damage caused by corrosion from battery leakage.

• Unauthorized repair or disassembly of this device will void all the warranties.
• Avoid water.
• Do not store this device in an excessively hot place.
• Avoid knocks or dropping this device.
• Never use the antenna of this device to touch a metal surface or the antenna of signal emission source. The quality warranty does not include the damage caused

4. Analog/Digital Select Switch

The signal of wireless camera, hidden microphone and walki talki (2-way radio) are analog signal. The signal of bluetooth, WLAN, Wi-Fi, cellular phone and digital spread spectrum products are digital signal.

Usually, set the A-D switch to A. When to detected analog signals, the LED of the detector will light up without blinking and the buzzer will go off continuously.

When to detect digital signals, the LED of the detector will be blinking and the buzzer will go off discontinuously and small sound. Set the A-D switch to D, it will have stronger indication for the digital signals of Bluetooth, Wi-Fi, WLAN, cellular phone and Digital Spread Spectrum wireless products, etc.

5. How To Distinguish If It Is a Signal Of Wireless Camera Or Hidden Microphone Or Cell Phone ?

The signal waves of wireless camera and hidden microphone is continuous wave, so the LED of the detector will light up without blinking when the detector detects a wireless camera or hidden microphone. And the buzzer will go off continuously.

The signal waves of cellular phone is pulse wave, so the LED of the detector will be blinking when the detector detects someone uses cellular phone. And the buzzer will go off discontinuously and small sound.

6. Sensitivity Adjustment

Turn the Sensitivity Tuner to - (minus) side to decreases the sensitivity and the detecting distance will be shorter. Turn the Sensitivity Tuner to + (plus) side to increases the sensitivity and the detecting distance will be longer.

7. Interference (Background Noise) Elimination

1. The Sensitivity tuner is also used to eliminate the background noise (interference).
2. If the scan environment has other noises that interfere with your detector, the strength indication LED will light up.
3. If this condition appears, adjust the sensitivity by turning the Sensitivity Tuner to - (minus) side to decreases the sensitivity until the Level 1 put out, just the green Power LED light up.
4. In normal condition, when turning on the power, only the Power LED goes Green to confirm the detector is in normal condition.

8. Low Battery Warning

If your detector is switched on, and the LED in the bottom with a battery icon is Red, it means the batteries run down. Please replace new batteries.

9. Silent Detection

This model also has VIBRATE detection to warn you when you do not hold this device in hand to scan an environment. Besides, you also can detect by earphone hearing without others awareness.

Specifications
