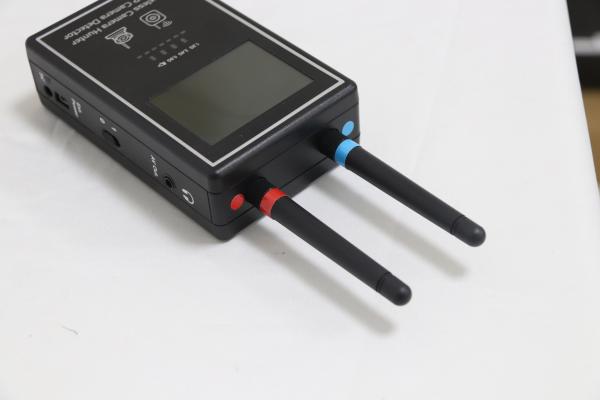

VS-124 Mini Wireless Camera Hunter

Full band video scanner 900 ~ 1300 MHz, 2340 ~ 2550 MHz, 5645 ~ 5945 MHz

WiFi IP Camera Detector 2410 ~ 2480 MHz, 5180 ~ 5320 MHz, 5745 ~ 5825 MHz

• INSTALL BATTERY: Battery compartment is located in the rear side. Remove the battery cover, install AAA / UM-4 battery x 4 according to the + – indication, then put on the battery cover. This device is available both dry battery and rechargeable battery. Note: Never connect the battery charger or external power bank when to use dry battery inside.
• SWITCH ON: The power switch is located in the center of right side. Set at 1 to switch on, set at 0 to switch off.
• AUTO SCAN: After switch on, this device will scan wireless video signal from 900 MHz to 6.0 GHz automatically. There are 2 rows LED displays under the LCD screen.

  Specifications * Specification may change without notice.

  Dimension	L 11.6 x W 7 x T 3.3 cm (including antenna: L 19 cm)
  Weight	about 215g (not include battery)
  Power	1. Switching power adaptor 2. AAA / UM-4 dry battery or rechargeable battery 3. Support external power bank (5V 1.5A and more)
  Battery charging time	About 6 hours for full charge
  Detecting Frequency	1. Wireless video camer: 900 ~ 1300MHz, 2340 ~ 2550 MHz, 5645 ~ 5945 MHz 2. WiFi IP camera: 2410 ~ 2480 MHz, 5180 ~ 5320 MHz, 5745 ~ 5825MHz
  Video protocol	auto-switching for NTSC, PAL and SECAM
  Scan indication	Image and Frequency of scanned video signal
  Warning mode	1. Beep and vibration 2. Silent detection through earphone
  Scanning band	1. 1.2 GHz / 2.4 GHz / 5.8 GHz video camera bands 2. 2.4G WiFi: CH1 – CH13 3. 5G WiFi: CH 36 – CH 64, CH 149 – CH 165
  Detecting Distance	Wireless video camera: up to 200 feet WiFi IP camera: up to 12 feet

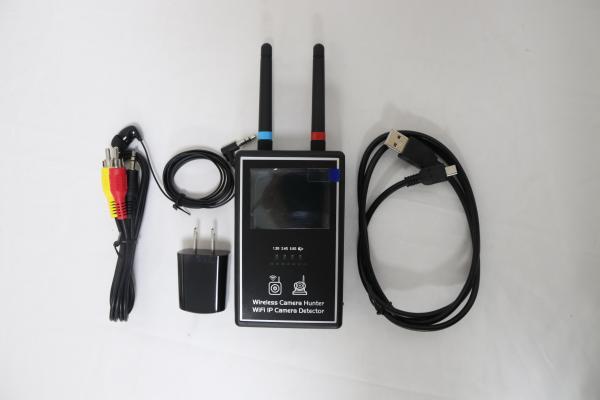

  Package Contents

  1.	Wireless camera hunter	4.	External power adaptor x 1
  2.	Detachable SMA antenna x 2	5.	Earphone x 1
  3.	AV output cable x 1	6.	Rechargeable batteries x 4(optional)

  WARNING

  Use this device as an auxiliary, supplemental help or aid to prevent the risks caused by cellular phone communications. This device does not take the place of all the supervisions. Performance of this Radio frequency (RF) product will be affected by the circumstance of use. The producer and marketing group accepts no liability for any loss or damage by malfunction or misuse.

  COPYRIGHT

  No part of this manual may be reproduced, transmitted, transcribed, or translated into any language in any form by any means, electrical or mechanical, including photocopying, recording, or information and retrieval systems, without the express written permission of manufacturer. The manufacturer may further revise this manual from time to time without prior notice.
