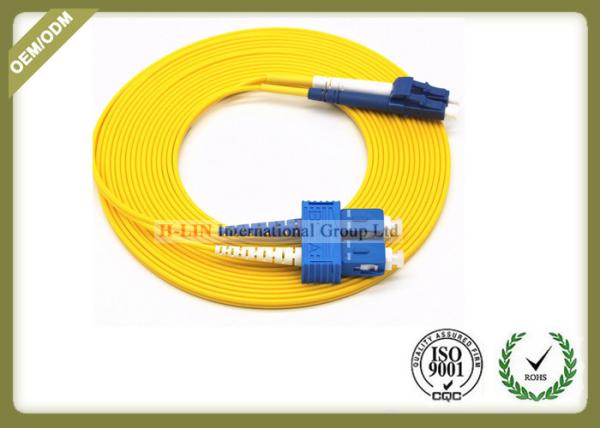

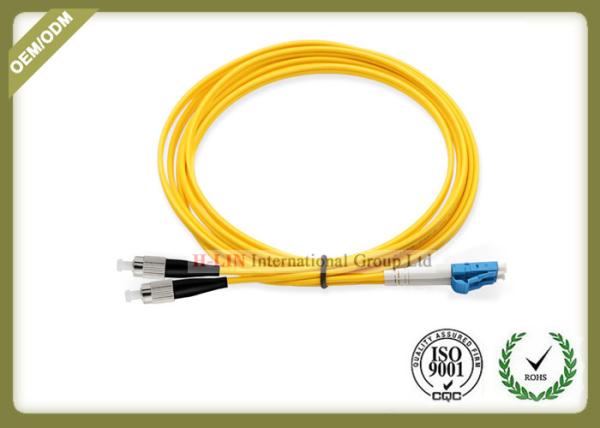

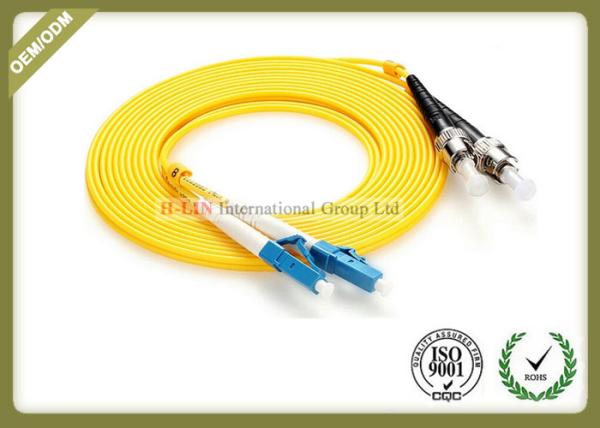

Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
Specifications
Brand Name :
H-Lin
Model Number :
SM-D
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
20 Piece/Pieces
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
4000 Piece/Pieces per Day
Delivery Time :
5days after payment
Packaging Details :
1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Mode :
Single mode
Fiber counts :
Duplex
Connector Type :
SC/LC/ST/FC
Ferrule end face :
PC/UPC/APC
Jacket :
PVC/LSZH
Length :
3/5/10/15/20/30m or Customized
Description

SC/LC/FC/ST Singlemode Duplex Fiber Patch Cord

Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45

>50

 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃)

-40~+80

Product Description

Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.

Our extensive range of fiber patch cables are terminated with state-of-the-art connectors, which available in any combination of FC,ST, SC and LC with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.

Parts of patch cord combination

Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour

Features

(1) Ceramic Ferrule;

(2) High return loss;

(3) Low insertion loss;

(4) Good repeatability and and exchangeability;

(5) Excellent Polished and 100% tested;

(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Applications

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV

Product Show

Singlemode Duplex Fiber Optic Patch Cord PVC/LSZH Jacket Yellow Colour
