FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket
FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket
FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket
FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket
FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket
FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket
Specifications
Brand Name :
H-LIN
Model Number :
FTTH-2core
Certification :
CE,Rohs
Place of Origin :
Shenzhen China
MOQ :
1 Roll/Rolls
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day
Delivery Time :
3-5Days
Packaging Details :

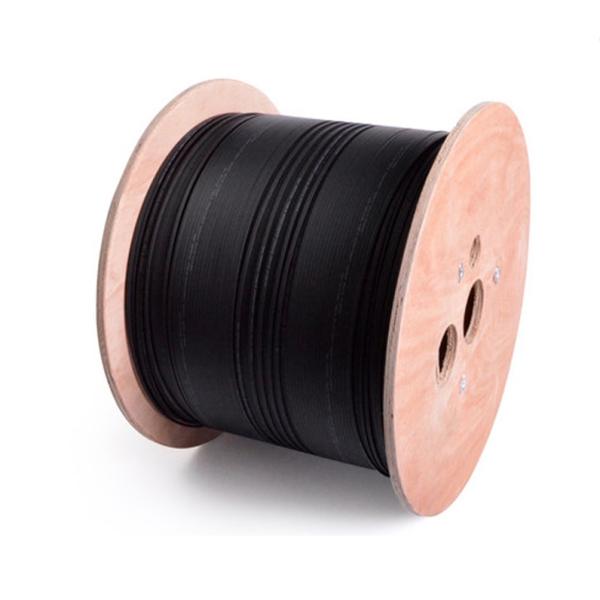

1km/reel,2 reels/carton,or Package as per customer request
Number of Conducto :
2
Jacket Material :
PVC/ LSZH/Customized
Mode Type :
Single mode/multimode
Fiber :
G652B,G652D or G657A
Cable Diameter :
2.0*5.0mm
Strength membe :
FRP/KFRP
Cable Weight :
20kg
Marking :
Printing/Customized
Description

GJYXFCH 2 core FTTH Drop Cable

Optical Characteristics

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

Product Description

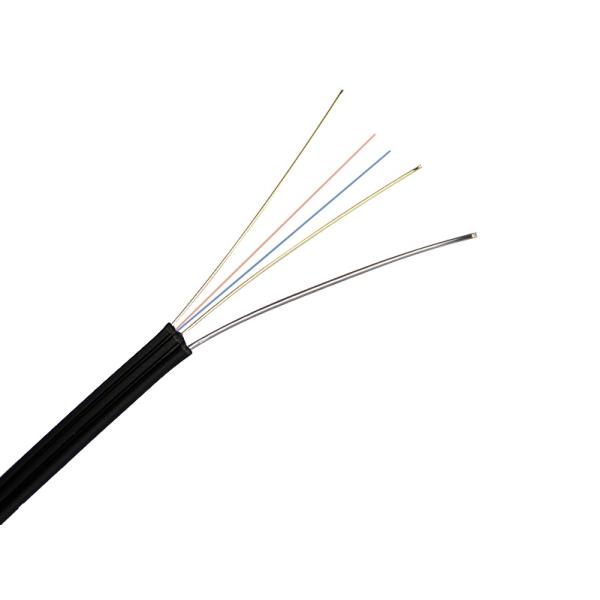

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Characteristics

  • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
  • Novel flute design, easily strip and splice, simplify the installation and maintenance.
  • Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength.
  • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.

Cable Parameters

Items Specifications
Fiber Count 2
Colored Coating Fiber Dimension 250±15μm
Color Blue/Orange
Strength Member Dimension 0.5mm
Material FRP
Self-Supporting Member Dimension 1.2mm
Material Steel
Jacket Dimension 5.0±0.2mm×2.2±0.2mm
Material LSZH
Color Black/White/Customized

Technical Parameters

Fiber Count Cable Diameter
mm		 Cable Weight
kg/km		 Tensile Strength Crush Resistance Bending Radius
Long/Short Term
N		 Long/Short Term
N/100mm		 Static/Dynamic
mm
1 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
2 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
4 (2.0±0.2)×(5.5±0.2) 21 60/120 300/1000 15/30
6 (2.0±0.2)×(6.0±0.2) 22 60/120 300/1000 15/30

Application :


1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings

Product Show

FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket

FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket
