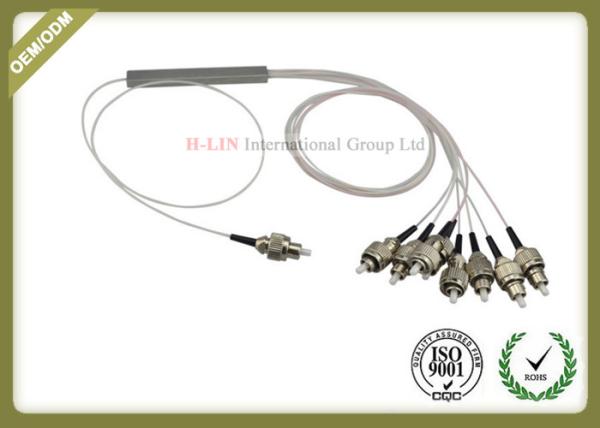

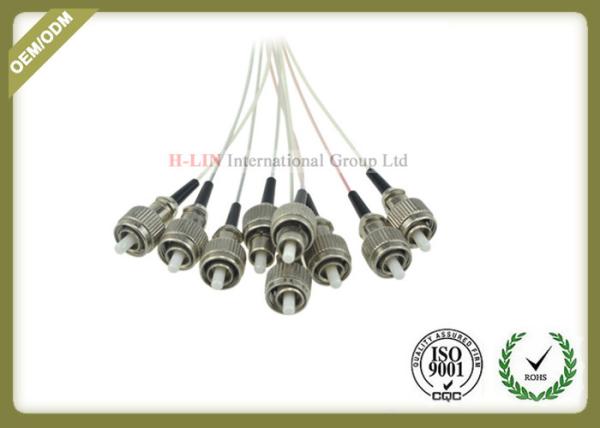

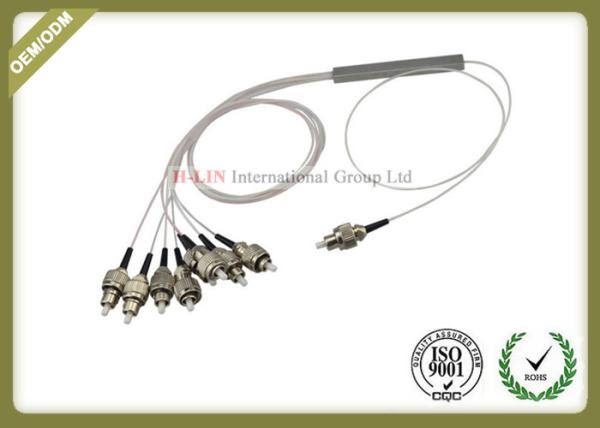

0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System
0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System
0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System
0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System
0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System
0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System
Specifications
Brand Name :
H-LIN
Model Number :
Steel tube
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
2 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
3~5 working days after payment
Packaging Details :
1pcs per plastic bag,1pcs per paper bag
Splitter Packing :
Stainless Steel Tube
Tube Type :
Φ0.9mm, Hytrel
Connector :
SC, FC, ST, LC, etc
Operating Temperature (℃) :
-40~85
Length :
1~2meter
Fiber type :
G652D / G657 or customized
Application :
FTTH,FTTX,PON,GOPN
Description

0.9mm Steel Tube GPON System 1x8 Mini Module PLC Splitter

Description:

PLC splitter(planner light wave circuit splitter) is based on planner light wave technology, and it has the advantages as smart apperance, wide range in working wave, high reliability and excellent uniform distribution. It is widely used to connect the terminal device and distibution the light signals in FTTX, EPOM, and GPON filed. We are avariable to supply 1XN and 2N series products, complying RoHS, which is customized to produced TLC certificated splitters in all occasions.

According to application occasions, PLC splitter can be divided into case type PLC splitter, micro PLC splitter, frame type PLC splitter, tray type PLC splitter, and plug type PLC splitter.

Parameters

Port Configuration Unit 1*4 1*8 1*16 1*32
Fiber type G652D / G657 or customized
Operating Wavelength nm 1260~1650
Insertion Loss dB < 7.0 < 10.6 < 14.0 < 17.3
Uniformity dB < 0.6 < 1.0 < 1.5 < 2.3
PDL Loss dB < 0.30 < 0.30 < 0.30 < 0.30
Directivity dB > 55
Return Loss dB > 50
Operation Temperature °C -40~ +85
Device Dimension mm 40*4 *4 40*4 *4 50*4*4 50*4*4
Mini-Module Dimension mm 50*7*4 50*7*4 60*12*4 80*20*6
Module Dimension mm 100*80*10 100*80*10 120*80*18 140*115*18

Order Information:

1. Modes: single-mode, multi-mode

2. Working wavelength: 1260nm~1650nm

3. Branch number: 1*2,1*4,1*8,1*16,1*32 etc.

4. Package: Stainless steel tubes, packaging box, box-type

5. Fiber connector: FC/PC, FC / APC, FC/UPC, SC / PC, SC / APC, SC/UPC, ST / PC, ST / APC, LC/PC, LC/APC, LC/UPC

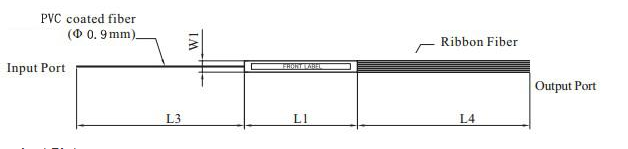

Dimensions Diagram

0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System

Features

  • Adopt high strength stainless steel, pass salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃

Application

0.9mm Steel Tube Fiber Optic Cable Splitter 1x8 , Plc Optical Splitter GPON System
