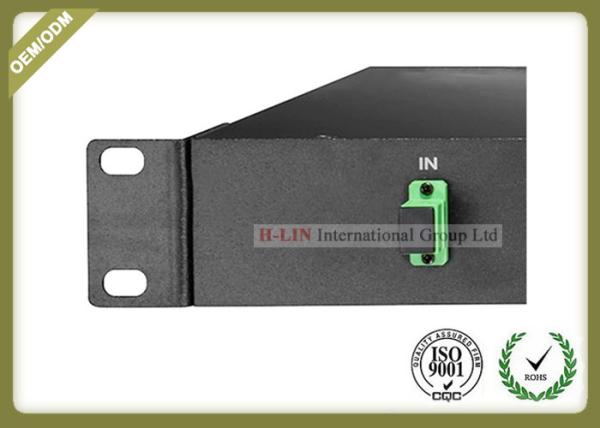

1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
1U 19 Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss
Specifications
Brand Name :
H-LIN
Model Number :
HL-Rack
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
1 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
3~5working days after payment

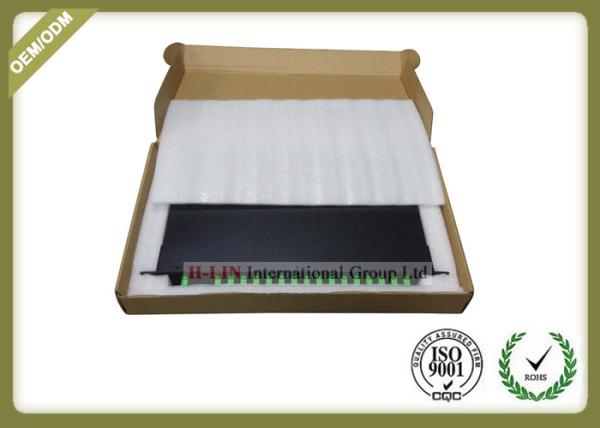

Packaging Details :
1pcs per box
Type :
Rack Mount PLC Splitter
Connector Type :
SC/APC
Fiber Mode :
SM
Fiber Type :
G652D G657A1 G657A2
Insertion Loss :
≤16.9dB
Return loss :
50/55dB
Description

1X32 SM 1U 19" Rack Mounted Optical PLC Splitter with

SC/APC Connector

Product Description

Fiberey PLC Splitters is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx in PON, CWDM, DWDM and optical cable TV System. It’s also responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Rack Mount PLC Splitter features small size, high reliability, wide operating wavelength range and good channel- to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

1U 19 Item Rack Mount PLC Splitter
Mode Single Mode
Connector SC/APC
Fiber type G652D G657A1 G657A2
Connector type SC, FC, ST, LC
Cable Diameter 0.9mm/2.0mm/3.0mm

Features

  • Excellent parameters on IL & RL
  • High channel counts
  • Exceptional reliability and stability
  • Wide Operating Wavelength
  • Wide Operating Temperature
  • Convenient engineering applications

Optical Parameter

Parameters 1X2 1X4 1X8 1X16 1X32 1X64
Fiber type customer specified
Operating wavelength(nm) 1310-1550nm
Insertion loss(dB) 3.8/4.0 7.2/7.4 10.5/10.7 13.5/13.7 16.5/16.9 21
Loss Uniformity(dB) 0.6 0.6 0.8 1.2 1.7 2.5
Return loss(dB) 50/55 50/55 50/55 50/55 50/55 50/55
PDL(dB) 0.2 0.2 0.3 0.3 0.3 0.4
Directivity(dB) 55 55 55 55 55 55
Wavelength Dependent loss(dB) 0.5 0.5 0.5 0.8 0.8 0.8
Temperature Stability(dB) 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature(℃) / 45
Storage Temperature(℃) / 45

Applications

  • CATV network
  • LAN, WAN and MAN
  • Testing equipments
  • Fiber optic communication system
  • FTTX access network based on PON structure

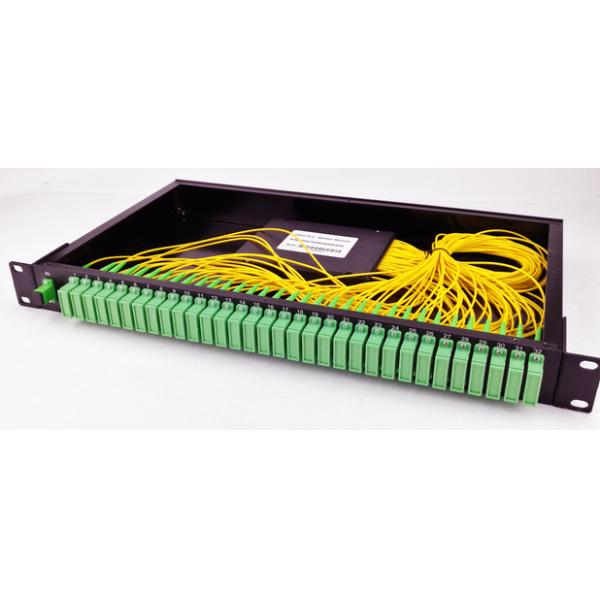

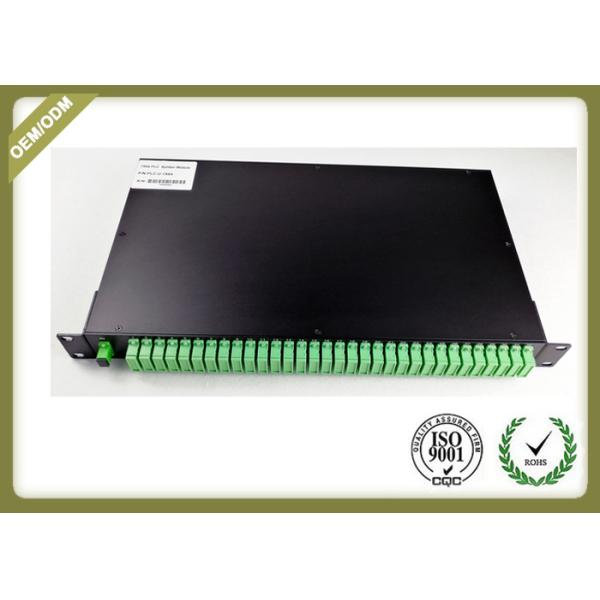

Product Show

1U 19
