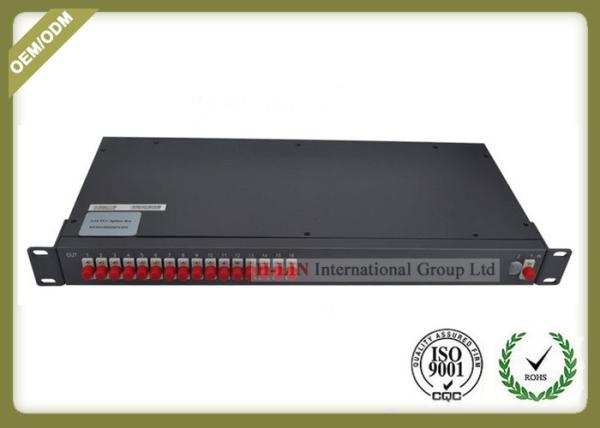

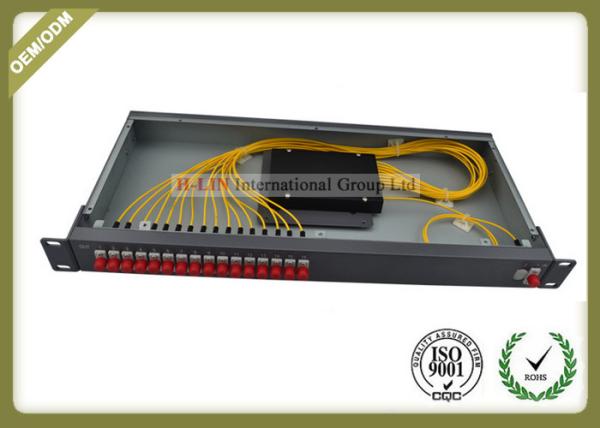

19 1U Rack Mounted Optical Plc Splitter 1x16 Cold Rolled Steel Material
19 1U Rack Mounted Optical Plc Splitter 1x16 Cold Rolled Steel Material
19 1U Rack Mounted Optical Plc Splitter 1x16 Cold Rolled Steel Material
19 1U Rack Mounted Optical Plc Splitter 1x16 Cold Rolled Steel Material
Specifications
Brand Name :
H-LIN
Model Number :
HL-Rack
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
1 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
3~5working days after payment
Packaging Details :
1pcs per box
Type :
Rack Mounted
Connector Type :
FC/UPC
Fiber Type :
G.657A or Customized
Material :
Cold Rolled Steel
Output Fiber Length :
Standard 1m, can be customized
Input/output cable diameter :
0.25mm or 0.9mm or 2.0mm or 3.0
Description

1U 19' Rack mount PLC fiber optic splitter 1 to 16

Description

Fiber optic LC splitter is an optical power device based on quartz plate planar of light wave technology, which is widely used in local side or termination of Passive Optical Network (EPON, BPON, GPON etc.) for splitting of optical signal. It offers superior optical performance, high stability and high reliability; meet various application requirements in different environments.

Optical Parameter

Description Unit 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength(nm) nm 1260 ~ 1650nm
Insertion Loss(dB) P 3.8 7.0 10.1 13.3 16.7 19.9
S 3.9 7.15 10.25 13.55 16.85 20.15
Loss Uniformity(dB) P 0.6 0.6 0.6 0.8 1.4 1.8
S 0.8 0.8 0.8 1.0 1.5 2
Polarization Dependent Loss(dB) P 0.2 0.2 0.2 0.2 0.2 0.3
S 0.3 0.3 0.3 0.3 0.3 0.5
Return Loss Min 55
Derectivity Min UPC:50 APC:55
Operating Temperature(℃) - 40 ~ +85
Storage Temperature(℃) - 40 ~ +85

Features

  • Low Insertion loss
  • Low PDL
  • High Return Loss
  • Uniform Power Splitting
  • Compact Design
  • Wide Operating Wavelength
  • Wide Operating Temperature
  • ExcellentEnvironmental & Mechanical Stability
  • Qualified Under Telcordia GR-1221 and GR-1209

Applications

FTTX(FTTP,FTTH,FTTN,FTTC)

Passive Optical Networks(PON)

Local Area Networks(LAN)

CATV Systems

Test Equipments

Product details

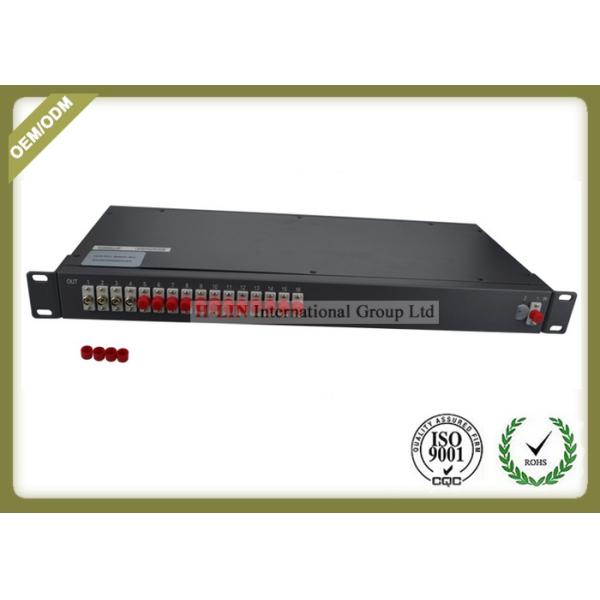

Cup protects the socket to prevent foreign matter from entering and reduces the optical property.

19

Packing

19
