24~144 Core Fiber Optic Outdoor Cable With Armoured Metallic Strength Member
24~144 Core Fiber Optic Outdoor Cable With Armoured Metallic Strength Member
24~144 Core Fiber Optic Outdoor Cable With Armoured Metallic Strength Member
24~144 Core Fiber Optic Outdoor Cable With Armoured Metallic Strength Member
Specifications
Brand Name :
H-LIN
Model Number :
GYTS
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Supply Ability :
8000 Kilometer/Kilometers per Month
Packaging Details :
wooden drum,2 or 3km fiber cable per drum,and by pallet to fix
Fiber cable type: :
GYTS
Fiber number: :
4~288 fibers
Fiber type :
G652D/G655/G657/OM1/OM2..
Fiber Jacket material :
PE
Fiber Diameter :
9.8mm~18mm
Armour Material :
corrugated steel tape armoured
Description

24~144core GYTS Loose tube stranding fiber optic cable with armoured metallic strength member

Description:

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Specifications:

Special tube filling compoud ensure a critical protection of fiber

Special design compact structure is good at preventing loose tubes from shrinking

Steel wire used as the central strength member

PSP enhancing moisture-proof

Features

12 core multi mode fiber optic cable

Armoured

Low insertion loss and back reflection loss

Good echangeability

Good Durability

High temperature stability.

Standard: Telcordia GR-326-CORE

Technical Parameters:

2-96 fibers 98-288fibers
Max. Tension (N) Short-term 1500 3000
Max. Tension (N) Long-term 600 1000
Max. Crushing Resistance (N/100mm2) 1000
Temperature range(°C) -40°C-- +70°C
Min. Bending Radius(mm) Install 20D
Min. Bending Radius(mm) Static 10D

G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

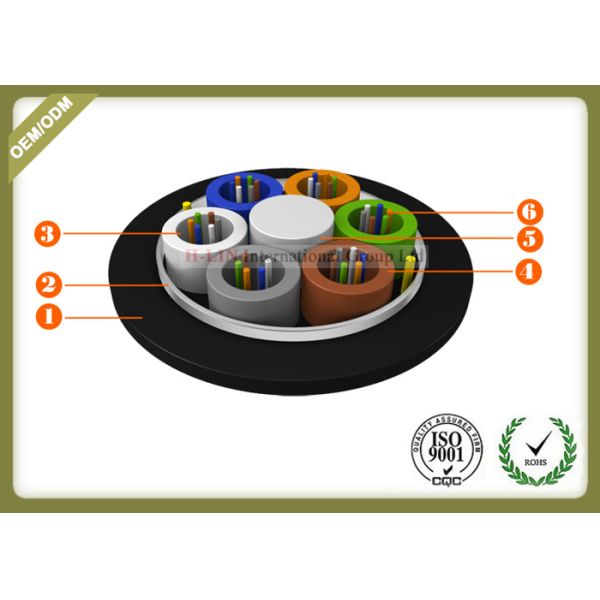

Structure:

1:PE outer sheath

2:corrugated steel tape

3:Jelly

4:Loose tube

5:Metallic strength member

6: Fiber

24~144 Core Fiber Optic Outdoor Cable With Armoured Metallic Strength Member

Application

Local Area Networks(LANS)

Data processing networks

Instrument

Premise installations.

Compliance With

1. TIA/EIA-568-C.3
2. ISO/IEC 11801-2nd
3. RoHS II 2011/65/EU
4. ITU-T G652.D
5. ITU-T G651

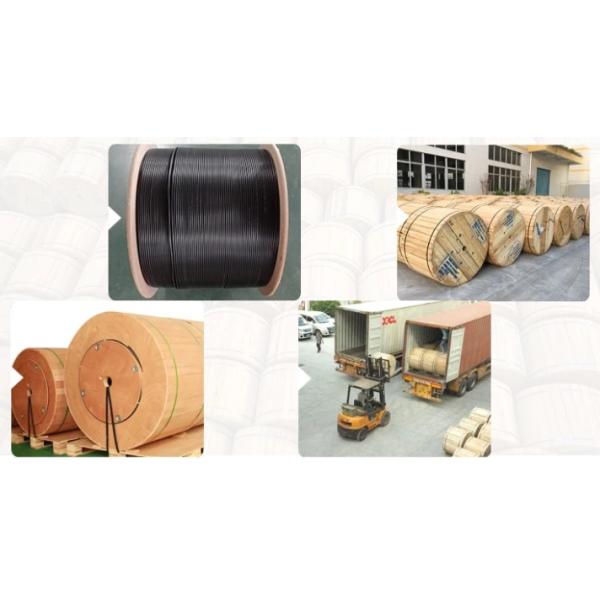

Package:

24~144 Core Fiber Optic Outdoor Cable With Armoured Metallic Strength Member

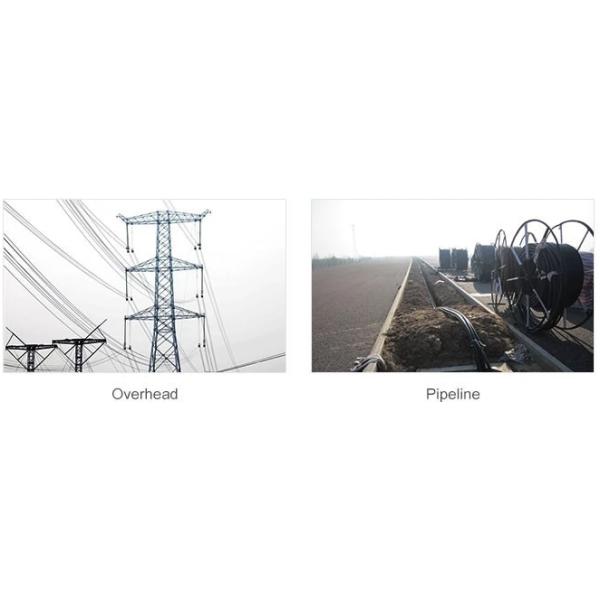

LAYING METHOD:

24~144 Core Fiber Optic Outdoor Cable With Armoured Metallic Strength Member
