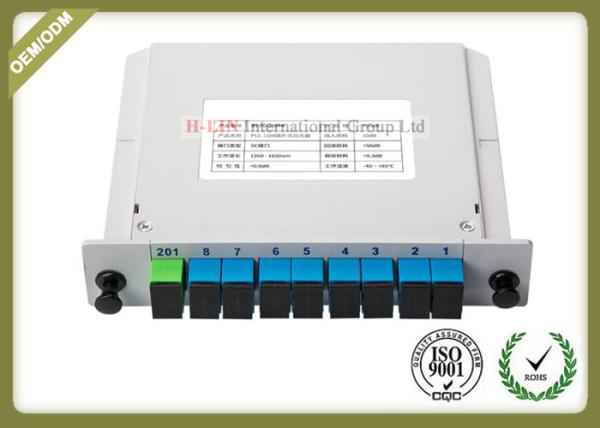

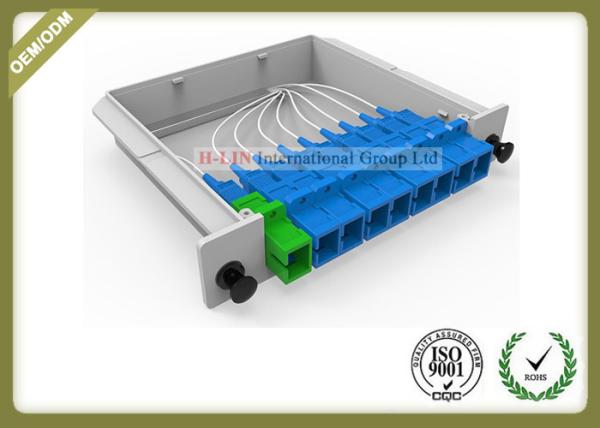

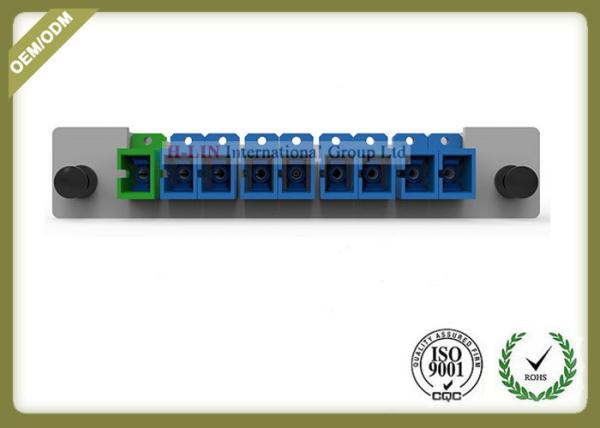

Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
Specifications
Brand Name :
H-Lin
Model Number :
Casstte 1*8
Certification :
ISO9001
Place of Origin :
Shenzhen
MOQ :
5 Piece/Pieces
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500 Piece/Pieces per week
Delivery Time :
3~5working days after payment

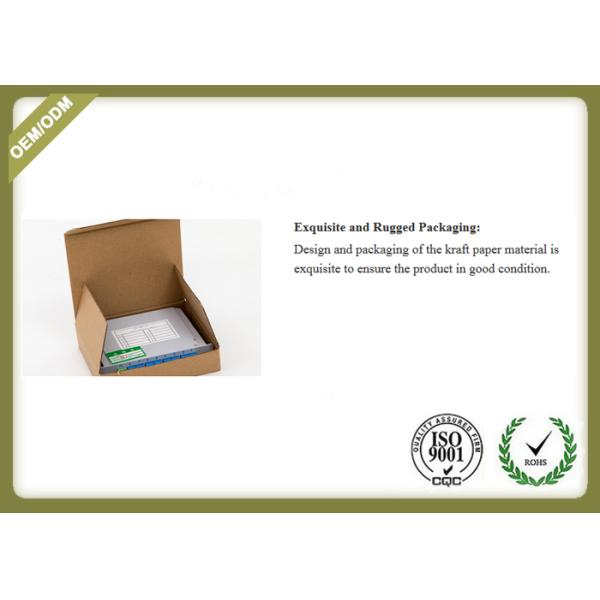

Packaging Details :
One pair per polybag,or as required package
Fiber Type :
Singlemode G.657A
Type of Connector :
SC
Connector Surface Design :
UPC
Fiber Diameter :
250um/900um/2.0mm/3.0mm
Splitter type :
1*8
Pigtail Length :
1.5m 2m 3m or customized
Operating Wavelenngth :
1260~1650nm
Operating/Storagrage Temperature :
40~+85 °C
Description

1:8 Cassette/LGX Box PLC Splitter SC/UPC Plug-in PLC

Fiber Optic Splitter

Product Introduction

PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.

Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

H-Lin provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet "YD/T1117-2001 All optical fiber branching device technical conditions","YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter"etc, and are certified by TLC for network deployment.

Specification

Fiber optic PLC splitter technical specifications
Wavelength(nm) 1260-1650
Free Sample YES
Material PVC;ABS
Design OEM & ODM
Specifications A (2.4.8 port) : 60L*7W*4H mm
B (16 port ) : 60L*12W*4H mm
C (32 port ) : 80L*20W*6H mm
Connectors FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
fiber optic connectors are available
Parameters 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) ≤4.2 ≤7.4 ≤10.7 ≤13.9 ≤17.2 ≤21.5 ≤24
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Uniformity (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss (dB) ≥50
Directivity (dB) ≥55
Temperature Range (°C) -40~+75
Storage Temperature (°C) -40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.

Features

  • Can be continuously covered with different fibers
  • Full fiber core structure
  • Can be resued
  • Fiber types optional
  • Low additional loss
  • Low insertion loss
  • 2*2,1*2,1*4,....1*128 types optional,etc

Application

  • Optical Signal Distribution
  • Data Communications
  • Lan and CATV System
  • FTTX Deployment
  • FTTH Network
  • Passive Optical Networks (PON)
  • Measuring System and Laser System
  • DWDM and CWDM Systems

Detailed Image

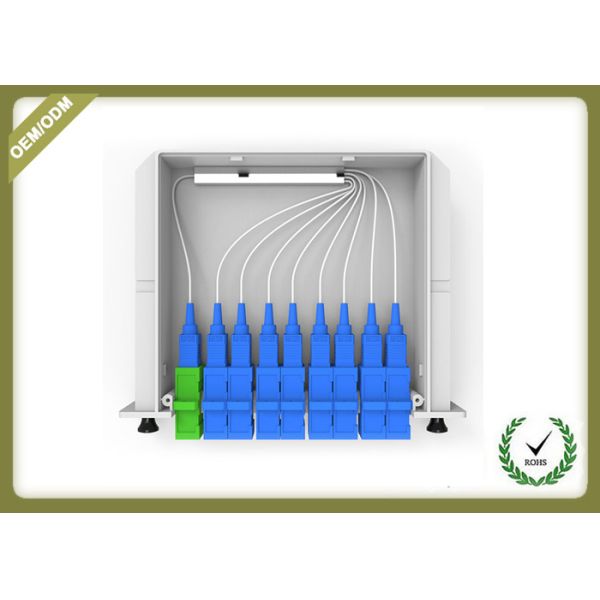

Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector

Rack Wall Mount Fiber Optic Splitter Cassette / Card Type SC UPC Connector
