FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
Specifications
Brand Name :
H-LIN
Model Number :
1*2
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
1 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
3~5 working days after payment
Packaging Details :
1pcs per plastic bag,1pcs per paper bag
Package Type :
ABS
Module Dimension (mm) :
11x12x3cm
Operating Wavelength (nm) :
1260-1650nm
Connector :
SC, FC, ST, LC, etc
Operating Temperature (℃) :
-40~85
Fiber type :
250um/900um/2.0mm/3.0mm
Application :
FTTH,FTTX,PON,GOPN
Model :
Cassette PLC Splitter
Description

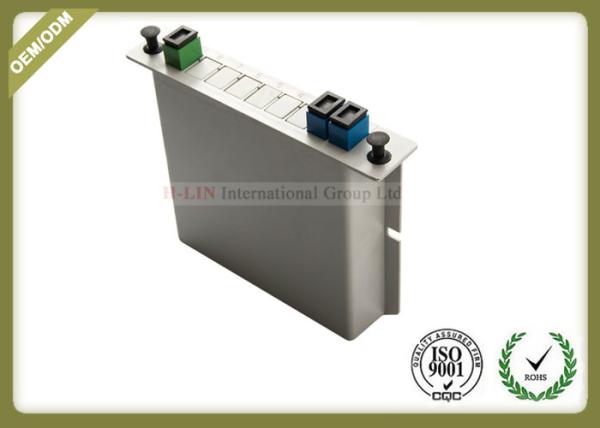

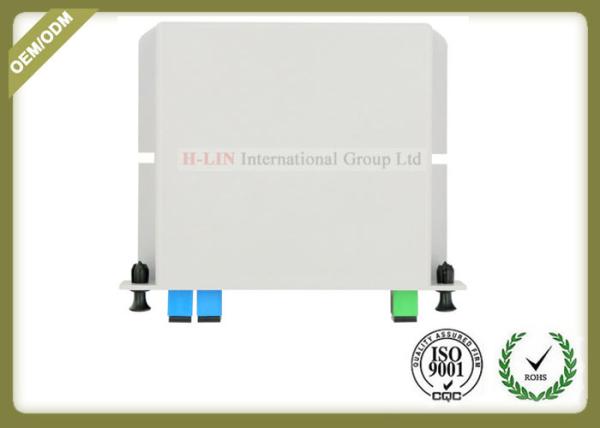

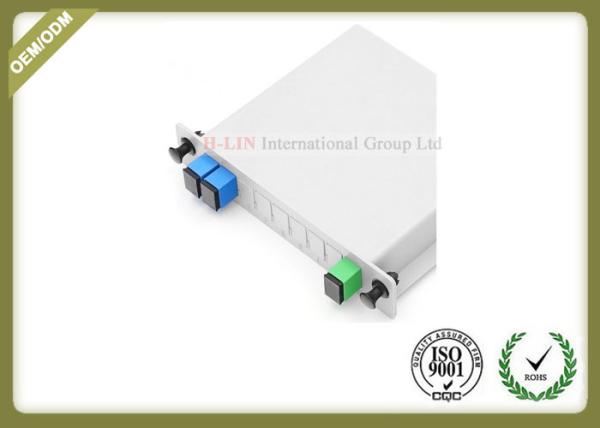

1x2 ABS box Card Insertion Type FTTH Passive Fiber optic PLC Splitter with SC Adapter

Description:

Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

Optical fiber splitter is the same as coaxial cable transmission system. Optical network system also needs to coupling, branching and distributing optical signals. Optical splitter, also known as optical splitter, is one of the most important passive devices in the fiber link. It is an optical fiber connection device with multiple inputs and multiple outputs. M*N is used to indicate that a divider has M input and N output terminals. Optical splitters used in optical fiber CATV systems are usually 1*2,1*3 and 1*N optical splitters.All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

2.Specification

Fiber optic PLC splitter technical specifications
Model name PLCS-133
Wavelength(nm) 1260-1650
Free Sample YES
Material PVC;ABS
Design OEM & ODM
Specifications A (2.4.8 port) : 60L*7W*4H mm
B (16 port ) : 60L*12W*4H mm
C (32 port ) : 80L*20W*6H mm
Connectors

FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC

fiber optic connectors are available
Parameters 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) ≤4.2 ≤7.4 ≤10.7 ≤13.9 ≤17.2 ≤21.5 ≤24
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Uniformity (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss (dB) ≥50
Directivity (dB) ≥55
Temperature Range (°C) -40~+75
Storage Temperature (°C) -40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.


Features

  • Adopt high strength stainless steel, pass salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃

Typical Usage

1. FTTX Systems

2. FTTH Systems

3. PON Networks

4. CATV Links

5. Optical Signal Distribution

Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

The light splitting is uniform, the transmission is stable, and the light splitting uniformity is good. The optical fiber signal can be evenly distributed to the users needed.

High quality imported optical chips, imported transmission chips, ensure uniform and stable light splitting, low polarization dependent loss, low ejection reflection, and can meet different wavelength requirements.

Environmentally friendly PVC skin, anti pull and drag performance is strong, low carbon and environmental protection, safe use, solid heart

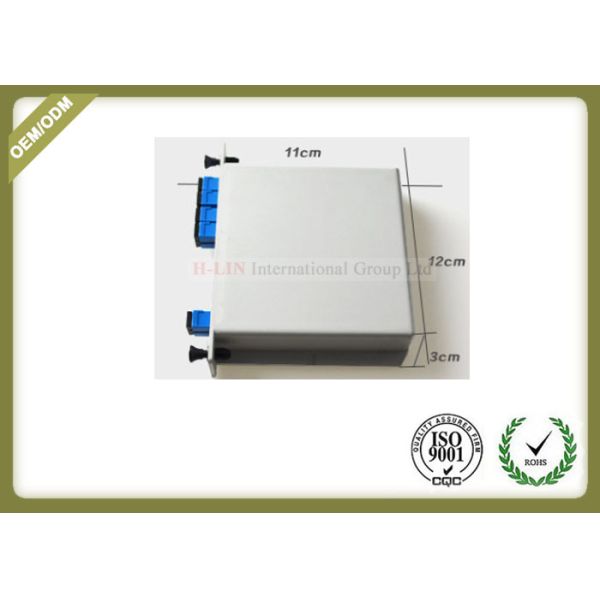

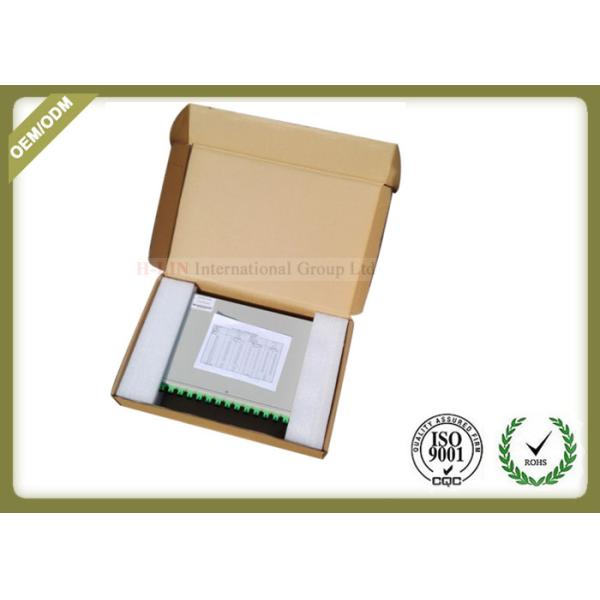

Size and Package:
FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter

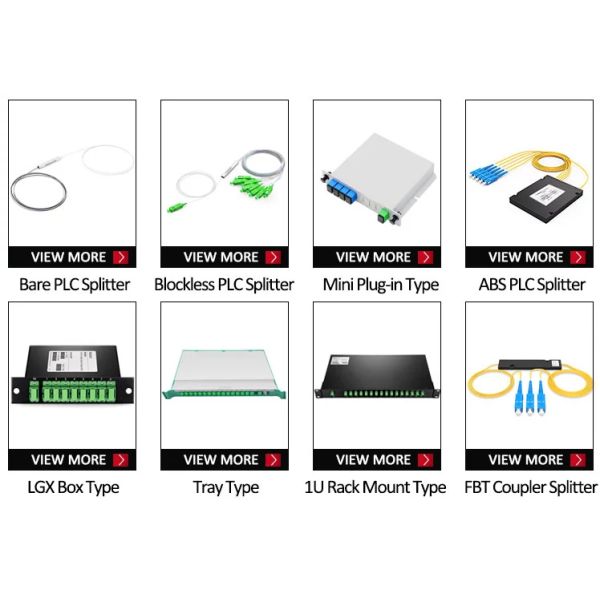

Other PLC splitter type:

FTTH Passive Fiber Optic Splitter Insertion Type With SC Adapter
