High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
Specifications
Brand Name :
H-Lin
Model Number :
FC-6S
Certification :
ISO9001
Place of Origin :
Shenzhen China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 Piece/Pieces per Week
Delivery Time :
1-3 days after payment
Packaging Details :
By carton
Applicable fibers :
Single Mode
Bare fiber diameter :
125um
Cleave Length :
10 - 20mm (Single Fiber - 0.9mm coating)
Blade life :
36,000 cleaves (3000 per blade position)
Size :
63(W)*76（D)*63(H)mm
Description

Single mode high precision aluminum fiber optic cleaver FC-6S for Cold connection

single mode fiber optic cleaver FC-6S

Product description

Fiber optic cleaver is used to cut the fiberglass for fusion splicing, also ideal for preparing fiber for pre-polished connectors to make a good end face.It is very important in the fiber splicing process, usually it works together with the fusion splicer to meet the end needs.

This FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.

Details Introduction

Specification

Model FC-6S
Adapt to optical fiber Single-core silica optical fiber
To adapt optical fiber coating diameter φ0.25 & φ0.9mm
Adapt to the bare fiber diameter 125μm
Cutting the fiber length 5 ~20 mm (φ0.25) 10 ~ 20(φ0.9)
Weight About 380g
Cutting angle adaptation value ≤ 0.7 °
Dimensions 63mm (W) ×76mm (D) × 63mm (H)
Edge life 36,000 cleaves (3,000 per blade position)

Features

  • Provides approximately 36,000 cleaves
  • Compact body& light weight
  • High Precision Cleaves
  • 12 Position Rotatable and Replicable Blade
  • .With the introduction of the FC-6S,solidity>HV450, Reach up to 80um ,Difficult to scratch
  • Small size, light weight, easy disassembly
  • Apply for Single Fiber,FTTH wire cable

Package includes

Fiber Cleaver*1pcs

Fiber Cleaver Bag*1pcs

Cutting Guideway*1pcs(gift)

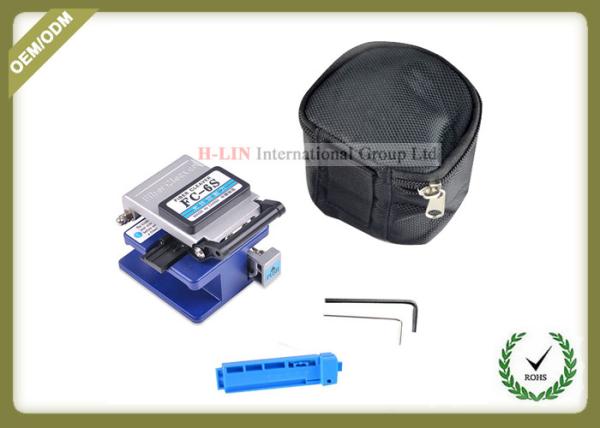

Product show

High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection

High Precision Fiber Optic Tools , Single Mode Fiber Optic Cleaver For Cold Connection
