Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
Specifications
Brand Name :
H-Lin
Model Number :
HL-MTP-Cassete
Certification :
CE/FCC/ROHS
Place of Origin :
Shenzhen China
MOQ :
1pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pieces/week
Delivery Time :
1week after payment
Packaging Details :
1pcs a separate box , 5pcs a Carton
Material :
Cold-roll steel or Aluminum
Painting method :
electrostatic painting
Color Painting :
Black,
Fiber :
24
Adapter plate :
LC duplex or LC quad
type :
LGX or Corning type
Description

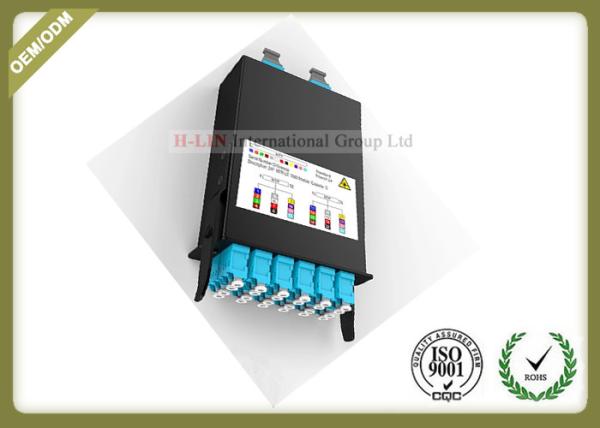

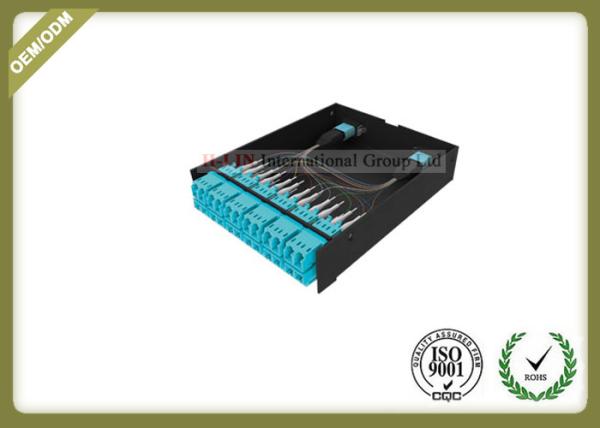

24 fibers MPO/MTP OM3 LGX Cassete with MPO to LC adapter

Description:

MPO adopts Corning CLearCurve series OM3/OM4 fiber cable, plus the connectors from US Connector

MTP products.

Modular and snapping fit design, which offer great convenience to installers at the site for installations as well as future maintenances and services.With the universal system and MPO interface, it will provide trouble-free connection between fiber cable and equipments as well as ensure the channel has the best flexibility, compatibility and reliability.

Product line construction

H-Lin pre-terminated MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables,to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and L class(super low loss).

Characteristic

  • Module optical fiber connections to the torsion of the sequence
  • Can provide data center and SAN System, simple and flexible

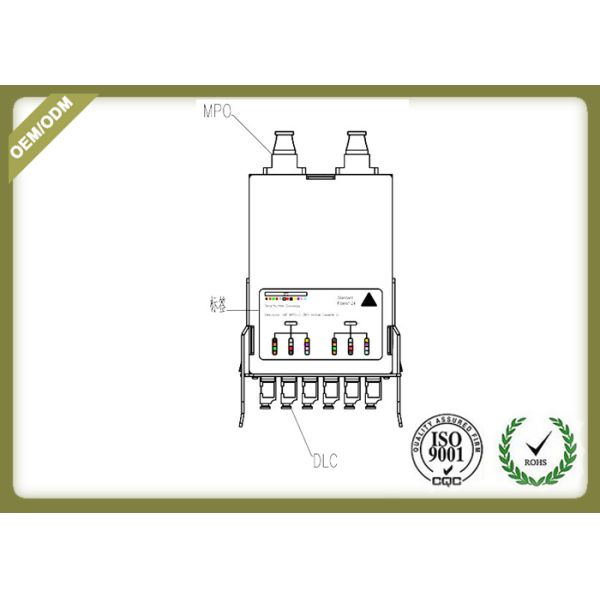

  • MPO trunk connector fixed on the back of module

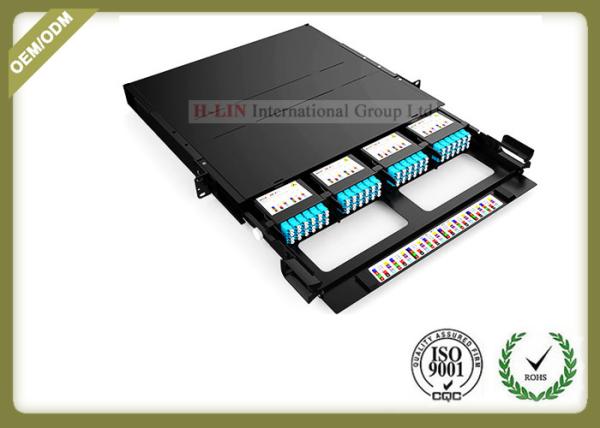

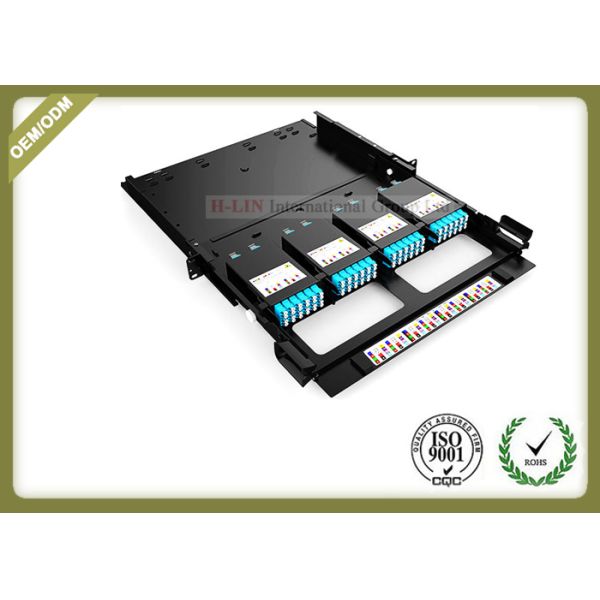

  • The standard 19" can be installed on any cabinet
  • Convient to be installed, moved and added

Features:

• Standard size, light weight and reasonable structure


• Compact design for space saving


• 18.24.36.48.72...cores optional


• Various panel plate to fit different adapter interface


• Front access panel design for easy operation


• Suitable for 19’’ or 23’’ standard optic distribution Cabinets

Application:

• Telecommunications subscriber loop

• Fiber to the home (FTTH)

• LAN/WAN

• CATV

Characteristic

  • Module optical fiber connections to the torsion of the sequence
  • Can provide data center and SAN System, simple and flexible
  • MPO trunk connector fixed on the back of module
  • The standard 19" can be installed on any cabinet
  • Convient to be installed, moved and added

Parameters

Multi Mode Single Mode
IL MPO Single max :0.35db (L) Single Max : 0.60db (G) Single max :0.35db (L) Single max :0.75db (G)
LC MAX :0.10dB(L) MAX :0.15 db (G) max :0.30db
RL MPO >20DB >60DB (8 degree Angle Polish )
LC >30db >50 db (UPC) >60DB(APC)
Mechanical MPO <0.2DB, 200 times insertion
LC <0.2db, 500times intertion
Working Temp -20~ +60 'C
Enviromental Storage Temp -40~ + 70'C
Install Temp -5~ + 50'C

Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter

Black 24 Fiber Optic Distribution Box MPO / MTP OM3 LGX For LC Adapter
