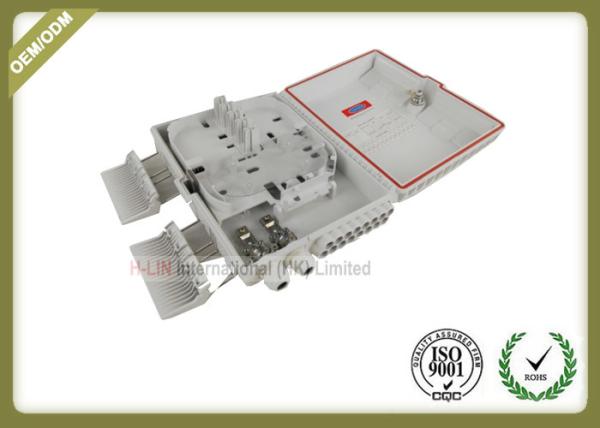

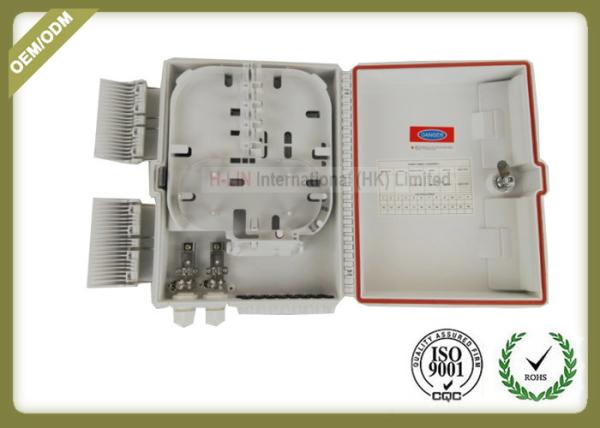

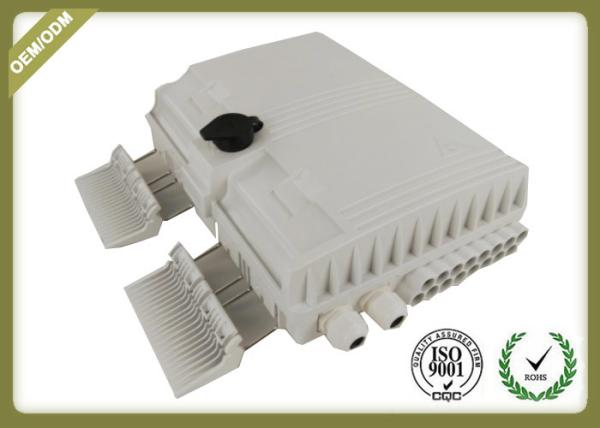

16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor
16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor
16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor
16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor
16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor
16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor
Specifications
Brand Name :
H-LIN
Model Number :
HL-POTB-O016
Certification :
CE/FCC/ROHS
Place of Origin :
Shenzhen China
MOQ :
1 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Piece/Pieces per day
Delivery Time :
3~4days after get payment
Packaging Details :
1pc/plastic bag 100pcs/Carton
Application :
FTTH System
Material :
ABS Plastic
Port: :
16
IP Grade :
IP65
Color :
white
Size :
33X30X12cm
Description

ABS material 16core outdoor waterproof optical cable Junction Box white color

Description:

16ports outdoor fiber optic junction terminal box waterproof plastic optic distribution box is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network

Features

  • Rainfall resistant, IP66 outdoor using
  • Nonmetallic material,Industry Standard User Interface, be made of high impact plastic
  • Compacted wall mount type and pole mounting application
  • Simple and clearly arranged incoming and outgoing cable management
  • Higher fiber count capacity box is available upon request
  • Easy maintenance ,easy access with front door
  • Support both mechanical and fusion splicing
  • Low cost solution with high protection for the terminated fibers
  • Up to 16 FTTH drops,Can accommodate 1x4.1x8,1X16,2x4.2x8 & 2x16 PLC splitter
  • inlet ports,16 outlet ports with 16pcs SC,LC,ST,FC adapters
  • Customized design product is available upon request

Applications

  • FTTX Systems
  • Telecommunication Networks
  • PON Networks
  • Data communications Networks
  • Fiber Optic Termination
  • Local Area Networks
  • CATV

Specification

· Wall Mounted termination box for indoor/outdoor use

· Up to 1 Fiber capacity SC Simplex

· Available for SC Simplex Adaptors

· Available install 1x4.1x8,1X16,2x4.2x8 & 2x16 Mini type PLC Splitters as required

Dimensions

Description 16core outdoor terminal box
Dimensions (WxDxH) 33x30x12cm
Splice Capacity 16Cores
Cable Port 16ports
Color White
Main Body Material Plastic: ABS+PC
Weight 2kg
No of Products (pcs/carton) 10pcs
Dimension of outer carton (cm) 55*36*62
G.W of outer Carton (kg/carton) 18kg
Installation Type

Wall /Pole Type Outdoor

Production & Packing:

16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor

16 Core Outdoor Fiber Optic Junction Box Rainfall Resistant Outdoor
