RJ45 Ethernet Port Fiber Optic Media Converter 10/100/1000M Unmanaged Ethernet Switch
RJ45 Ethernet Port Fiber Optic Media Converter 10/100/1000M Unmanaged Ethernet Switch
RJ45 Ethernet Port Fiber Optic Media Converter 10/100/1000M Unmanaged Ethernet Switch
RJ45 Ethernet Port Fiber Optic Media Converter 10/100/1000M Unmanaged Ethernet Switch
Specifications
Brand Name :
H-Lin
Model Number :
HLIN206
Certification :
CE,Rohs,FC
Place of Origin :
China
MOQ :
2 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 Piece/Pieces per Week
Delivery Time :
5~7working days after payment
Packaging Details :
1pc a separate box,
Type :
6port Ethernet switch
Standard :
IEEE 802.3af Standard
Size :
29*16.5*4cm
Housing :
Metal,IP30 Protection
Operating Voltage :
110-240V AC
Weight :
1.2kg
Description

10/100/1000M unmanaged ethernet Switch with 2 fiber port 4RJ45 ethernet port

6-port unmanaged Gigabyte Ethernet switch

With 4×10/100/1000Base-T(X) ports and 2×1000Base-FX

HLIN206-2GF4GT is designed for bad and extreme outdoor environment, with 4 10/100/1000MBaseT(x) and 2 1000BaseFX.

Product features

4 ×10/100/1000BaseT(X) 2× 1000BaseFX

Support auto-negotiation and auto-MDI/MDI-X

No fan, Metal shell, Internal power, 100~240V AC

All port lighting protections (6KV)

Working temperature: -20℃～60℃


Tecnology

Standards:

IEEE 802.3 10BaseT, IEEE 802.3u 100BaseT

IEEE 802.3ab 1000BaseT , IEEE 802.3z 1000BaseFX

Switch Properties

Switching bandwidth : 12Gbps Packet Buffer Size : 1Mb

MAC table size : 8K Jumbo Frames: 9.6K Bytes

Port

Fiber Ports: 1000Mbps

RJ45 Port : 10/100/1000Mbps, Full/Half duplex, MDI/MDI-X

LED Light : PWR, Link/ACT, SPD

Power Requirement

Input Voltage : 100~240V AC

Input Current : Max 0.3A

Optical fiber

100BaseFX
Multi mode Single mode
wave length 850 nm 1310 /1550nm
max power -3 dBm 0 dBm
min power -8 dBm -10 dBm
sensitivityy -19 dBm -32 dBm
link budget 11 dB 22 dB
distance 2kma 550mb 40 kmc
saturability -6 dBm -3 dBm

a. 50/125um, 800 MHz*kmoptical fiber cable

b. 62.5/125 um, 500 MHz*km fiber cable

c. 9/125 um single mode fiber cable

Physical Characteristics

Housing : Mental,IP30Protection

Size: 290*165*40mm

Weight : 1200g

Installation: Desk / Wall mounting

Environmental Limits

Operating temperature: -20 ~ 60°C (-4 ~ 140°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Ambient relative humidity: 5 ~ 95% (non-condensing)

Standard and certificate

EMI: FCC Part 15/CISPR22(EN55022):Class A

EMS:

IEC61000-4-2 (ESD) 4class,IEC 61000-4-3 (RS) 3class,IEC 61000-4-4 (EFT) 4class, IEC 61000-4-5 (Surge) 4class,IEC 61000-4-6 (CS) 3class

Vibration: IEC 60068-2-6

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Warranty

Warranty period : 3year

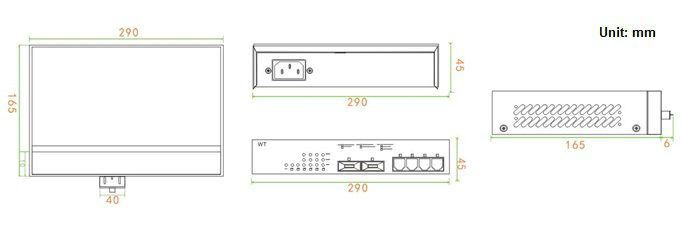

Dimensions:

RJ45 Ethernet Port Fiber Optic Media Converter 10/100/1000M Unmanaged Ethernet Switch

Packing list:


Industrial Ethernet switch
Installation accessories
Instructions for use
Warranty card
Certificate of conformity
